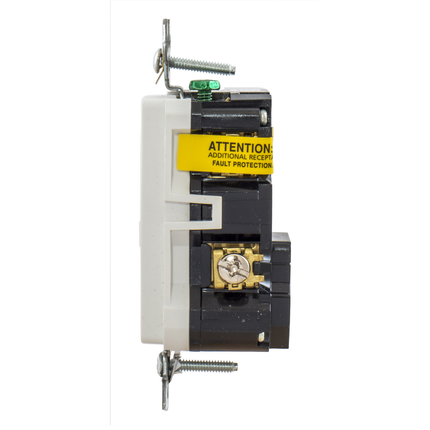

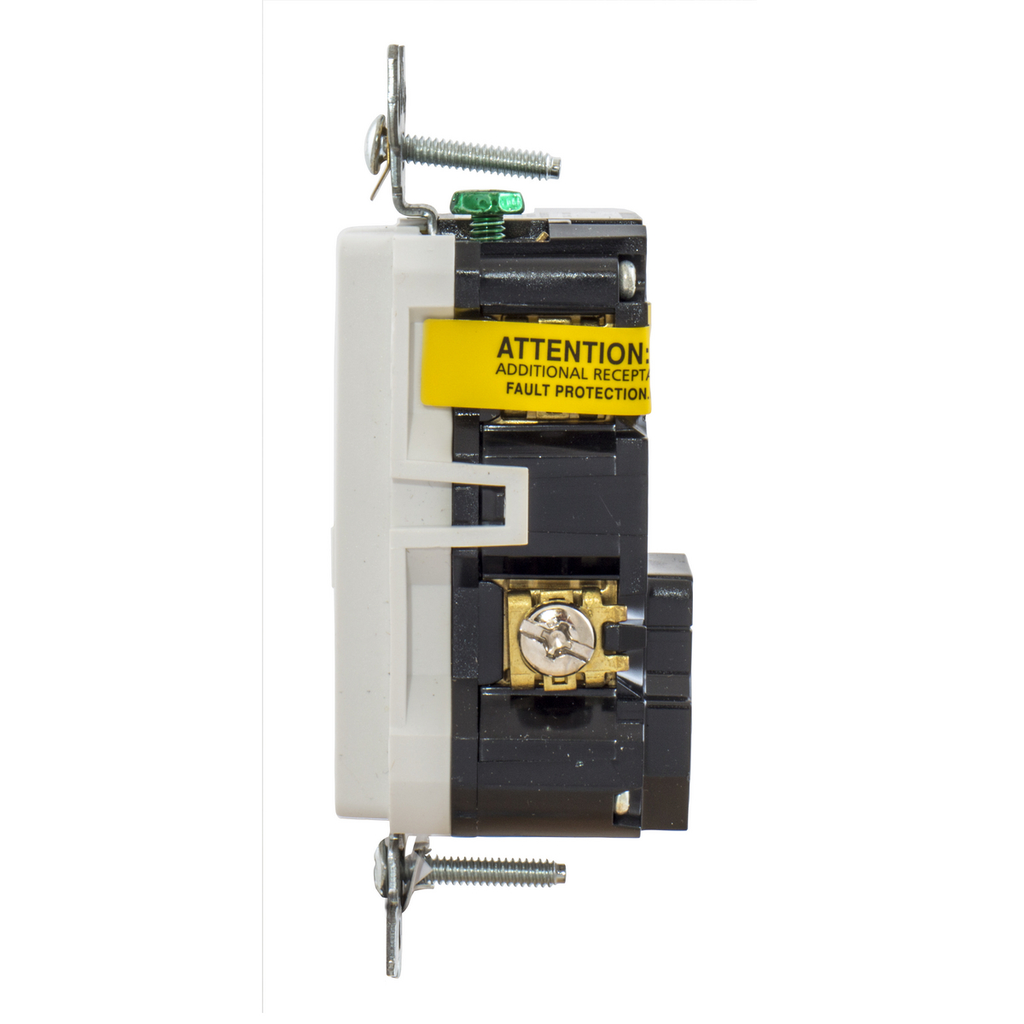

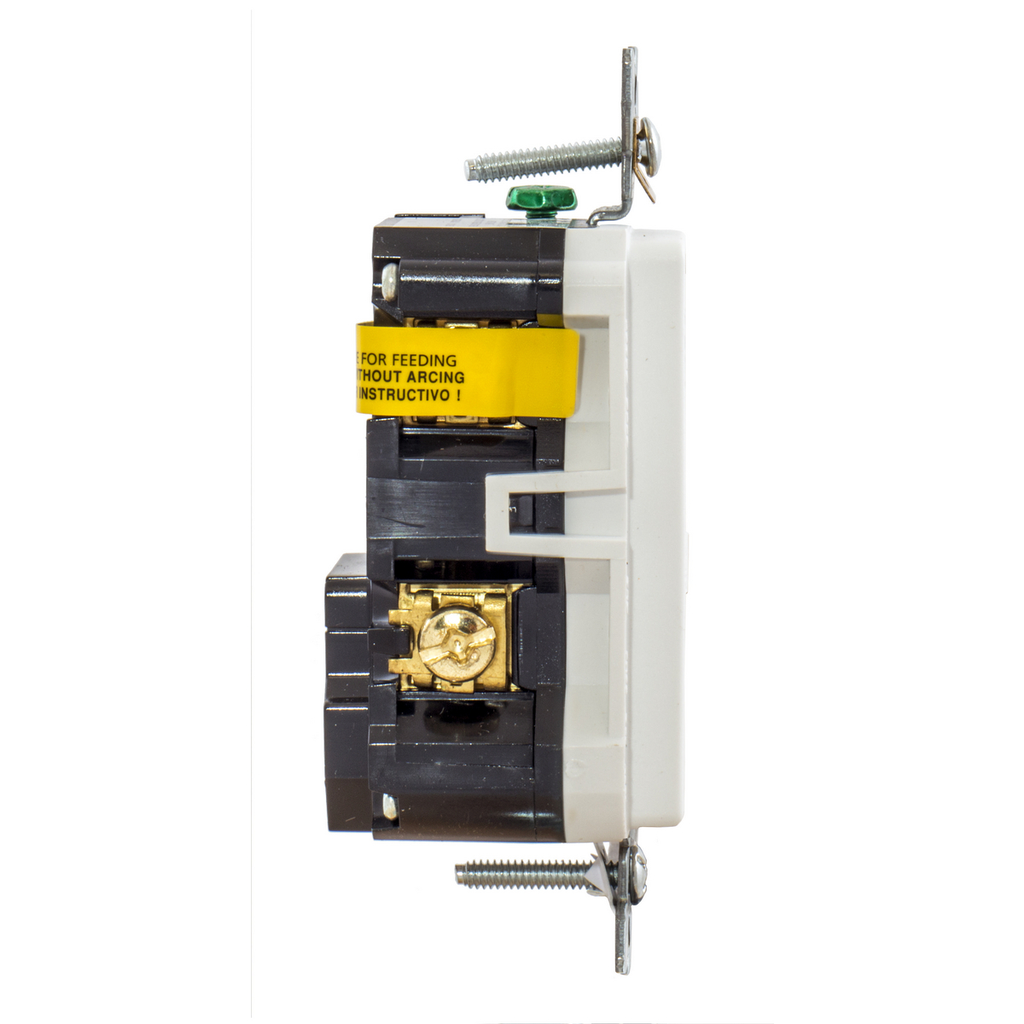

20A COMB AF/GF REC WHITE AFCI/GFCI Receptacle

This 20A Combination Arc Fault Circuit Interrupter (AFCI) and Ground Fault Circuit Interrupter (GFCI) receptacle is designed for electrical safety applications, providing dual protection against arc faults and ground faults. It is suitable for indoor dry environments and is intended for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring reliable branch circuit protection devices.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: AFGF20TRW
• Amperage Rating: 15 A
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Connection: Terminal Screws
• Material: Composite
• Width: 3.3 in
• Product Weight: 4.25 lbs
• Mounting: Mounting Screws
• Application: Electrical Safety
• Environmental Conditions: Indoor Dry Unless Protected by Additional Means
• Country of Origin: China

Features

• Combination AFCI/GFCI protection safeguards branch circuit wiring and connected devices against arc faults and ground faults
• Tamper-resistant design enhances safety in residential and commercial installations
• Self-test functionality with status indicator light for ongoing device health monitoring
• Lockout feature prevents reset if miswired or if device fails internal diagnostics
• Designed for use with copper or copper-clad wire only; not compatible with aluminum wiring

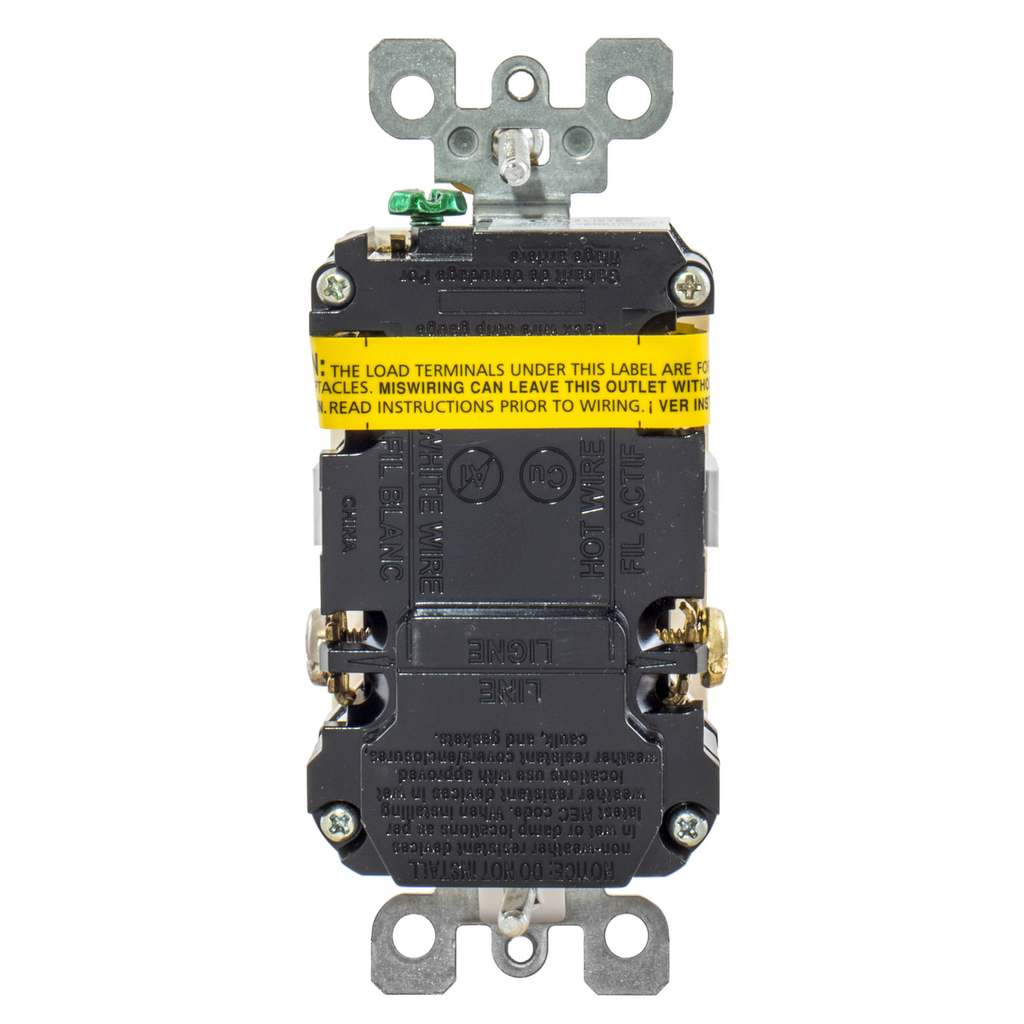

• Includes yellow sticker covering LOAD terminals to ensure correct wiring and safe installation
• Complies with national and local electrical codes for branch circuit protection
