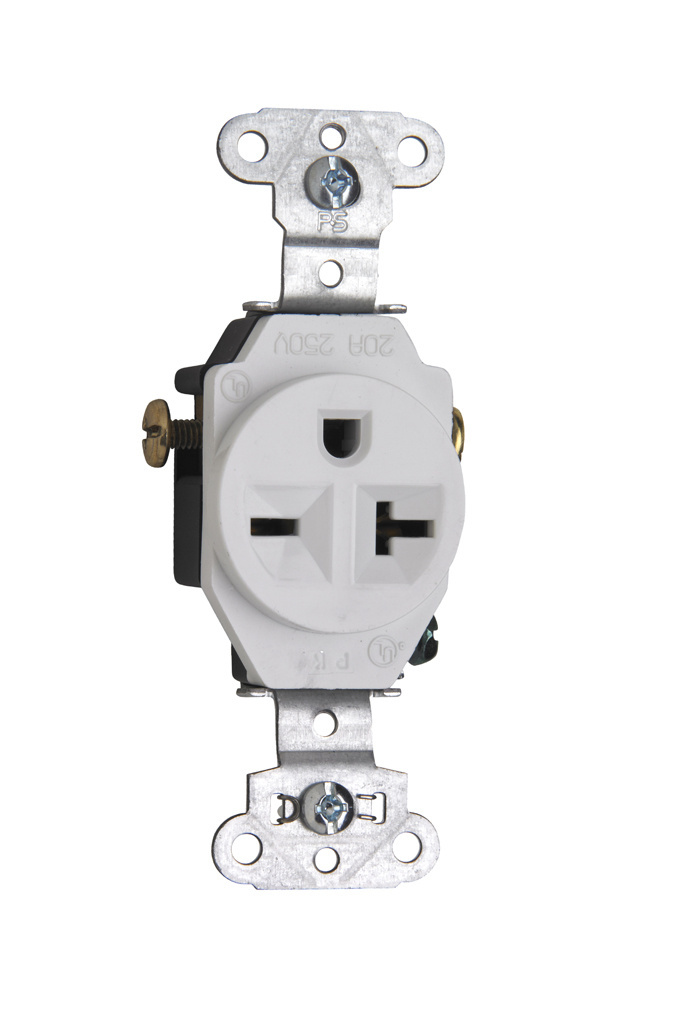

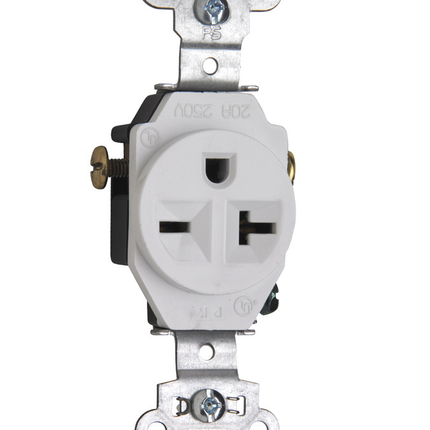

20A 250V Heavy Duty Spec-Grade Single Receptacle, Side Wire, White

This heavy-duty spec-grade single receptacle is designed for residential and commercial applications, providing reliable electrical connections. It is suitable for use by electrical distributors and lighting solutions providers requiring durable wire and cable accessories. The device features a side wire connection and is rated for 20 amps and 250 volts, making it compatible with switchgear and other electrical distribution equipment.

Specifications

• Application: Residential/Commercial
• Amperage Rating: 20A
• Voltage Rating: 250V
• NEMA Rating: 6-20R
• Number of Poles: Double Pole
• Number of Wires: 3
• Material: Thermoplastic
• Color: White
• Finish: Matte
• Mounting: Wall
• Connection: Wire Ground
• Width: 1.38 in
• Product Weight: 0.16 lbs
• Country of Origin: Mexico
• Manufacturer: Pass & Seymour
• Manufacturer Part #: 5851W

Features

• Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength
• Heavy-duty nylon face for superior impact resistance
• One-piece brass triple-wipe power contacts for lasting retention
• Backed-out tri-drive steel terminal screws
• Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
• UL Listed and CSA Certified for safety and compliance
• Rated for current interrupting at full-rated current
• Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% rated current with direct current
• Terminal accommodation for #14 - #10 AWG copper conductor only
• Flammability rating UL94 V2
• 1 Year Warranty
