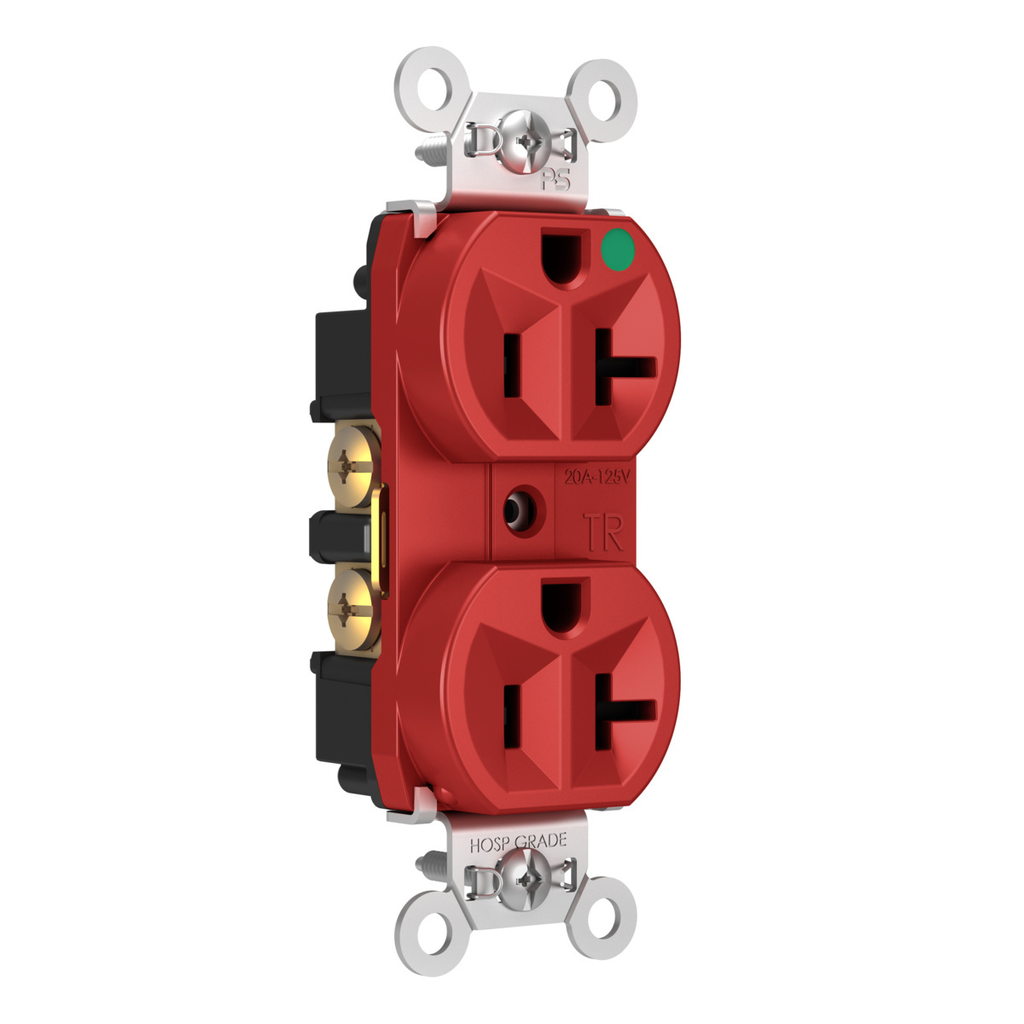

20A 125V Hospital-Grade Tamper-Resistant Compact Duplex Receptacle, Back and Side Wire, Red

This Pass & Seymour 20A 125V Hospital-Grade Tamper-Resistant Compact Duplex Receptacle is designed for healthcare and institutional electrical applications requiring high safety and reliability. It features a compact body that maximizes wiring space in the box, suitable for electrical distributors and switchgear suppliers focusing on hospital-grade wiring solutions. The device supports both back and side wiring, ensuring versatile installation options for wire and cable configurations.

Specifications

• Application: Hospital Grade
• Amperage Rating: 20A
• Voltage Rating: 125V
• NEMA Rating: 5-20R
• Connection: Side & Back Wired
• Number of Poles: Double Pole
• Number of Wires: 3
• Material: Thermoplastic
• Color: Red
• Finish: Matte
• Dimensions (HxW): 2.635 in x 1.322 in
• Product Weight: 0.1500 lbs
• Dielectric Strength: Withstands 2000V minimum
• Environmental Conditions: UL94 V2 Flammability
• Country of Origin: Mexico
• Manufacturer: Pass & Seymour
• Manufacturer Part #: TR8300HRED

Features

• Compact design provides more wiring space in electrical boxes
• Tamper-resistant dual mechanical shutter system prevents foreign object insertion
• Auto-ground clip ensures positive grounding
• Screw-pressure-plate back wiring with side wiring option for installation flexibility
• One-piece, triple-wipe brass power contacts for long service life and reliable electrical contact
• Zinc-plated steel mounting strap for added strength and ground conductivity
• Two drive screws anchor the strap to face and back body for durability
• Supports #14 AWG to #10 AWG copper conductors
• UL Listed (File Number E140596), CSA Certified (File Number LR16063), and meets Fed Spec WC596 for Hospital Grade
