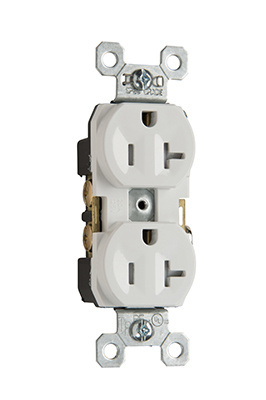

20A 125V Commercial Grade Tamper-Resistant Duplex Receptacle, White

This commercial grade tamper-resistant duplex receptacle is designed for safe and reliable electrical distribution in commercial applications. It operates at 20 amps and 125 volts, suitable for wiring systems requiring tamper-resistant features to comply with 2014 NEC® Article 406.12. Ideal for use by electrical distributors and switchgear suppliers in commercial offices, multi-dwelling, retail, and hospitality environments.

Specifications

• Manufacturer: Pass & Seymour
• Manufacturer Part #: TR20W
• Amperage Rating: 20A
• Voltage: 125V
• NEMA Rating: 5-20R
• Number of Poles: Double Pole
• Number of Wires: 3
• Connection: Wire Ground
• Material: Thermoplastic
• Color: White
• Finish: Matte
• Mounting: Wall
• Dimensions: 3.28 in (Height) x 1.37 in (Width)
• Product Weight: 0.25 lb
• Country of Origin: Mexico
• UL Listed: File Number E140596, Standard UL498
• CSA/CUL Approved: Standard CSA-C22.2 No. 42
• Flammability Rating: UL94 V2
• Operating Temperature Range: -40¬∞C to +60¬∞C

Features

• Tamper-resistant shutters with dual mechanical shutter system to prevent insertion of foreign objects
• Impact-resistant nylon face for durability
• Corrosion-resistant plated steel mounting strap
• .032 inch thick brass triple-wipe power contacts for lasting retention
• Auto-ground clip assures positive grounding
• Backed-out tri-drive steel terminal screws for faster, easier installation
• Easily accessed break-off line-contact connecting tab for split-circuit wiring
• Certified for current interrupting at full rated current
