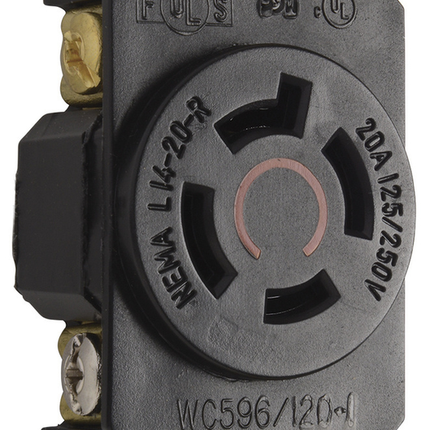

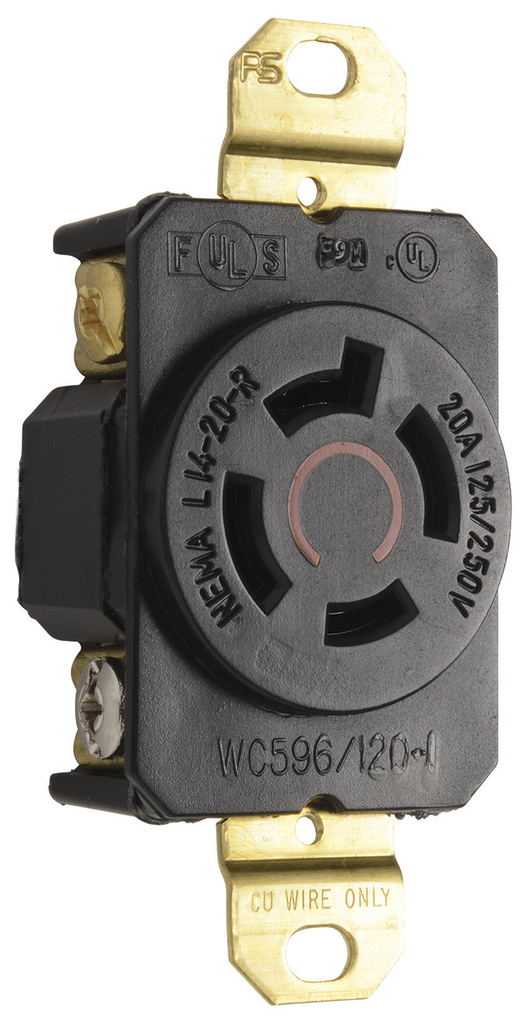

20A 125/250V NEMA L1420 Single Receptacle, 4-Wire, Black - Industrial Electrical Receptacle

This Turnlok® single receptacle is designed for industrial applications requiring secure and reliable electrical connections. It supports 20 amps at 125/250 volts with a NEMA L14-20R configuration, suitable for 4-wire systems. Ideal for electrical distributors and switchgear suppliers, this receptacle offers durable performance in demanding environments.

Specifications

• Name: 20A 125/250V NEMA L1420 Single Receptacle, 4-Wire, Black
• Amperage Rating: 20A
• Voltage Rating: 125/250V
• NEMA Rating: L14-20R
• Number of Poles: Double Pole
• Number of Wires: 3
• Material: Nylon
• Color: Black
• Finish: Matte
• Dimensions: 2.29 in (Height) x 1.61 in (Width)
• Mounting: Receptacle
• Product Weight: 0.2400 lbs
• Country of Origin: Mexico
• Manufacturer: Pass & Seymour
• Manufacturer Part #: L1420R

Features

• Turnlok® locking mechanism ensures secure connection and prevents accidental disconnection
• Industrial spec grade application for rugged and reliable use
• Durable nylon construction with matte finish for impact and chemical resistance
• Designed for 4-wire electrical systems supporting both 125V and 250V loads
• Compact design suitable for use in switchgear and wire and cable assemblies
