Description
Features
Certifications
- cULus Listed
- CSA Listed
- Impact-resistant polycarb back body and frame.
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
- Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
- Terminals made of high conductivity brass and serrated for maximum wire gripping.
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
- Integral auto-ground clip for positive ground to metal boxes.
- Tri-drive ground, terminal, and mounting screws.
- All terminal screws backed out, ready-to-install.
- For covering patents, see www.legrand.us/patents.
Specifications
- Country of Origin: Mexico
Specifications
- Color: White
- Product Line: Pass & Seymour
Downloads
Spec SheetSupporting Document
Commercial Switches HP Conversion TableCleaning Instructions for Wiring Devices
Cutsheet
15 & 20A, 120/277VAC Construction-Grade Switches"Brochure
Pass & Seymour Commercial and Industrial ProductsInstallation Instructions
Spec Grade Decorator Switch Wiring Information, IS341056"Videos
More Information

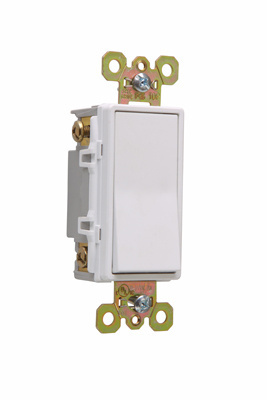

Manufacturer Catalog Number
2624W
Weight
.2300
Country of Origin
Mexico
Material
Polycarbonate, Thermoplastic
Color
White
Number Of Poles
4-Way
Product Size
4.25"
Type
Switch, Decorator
Wattage
4 W
