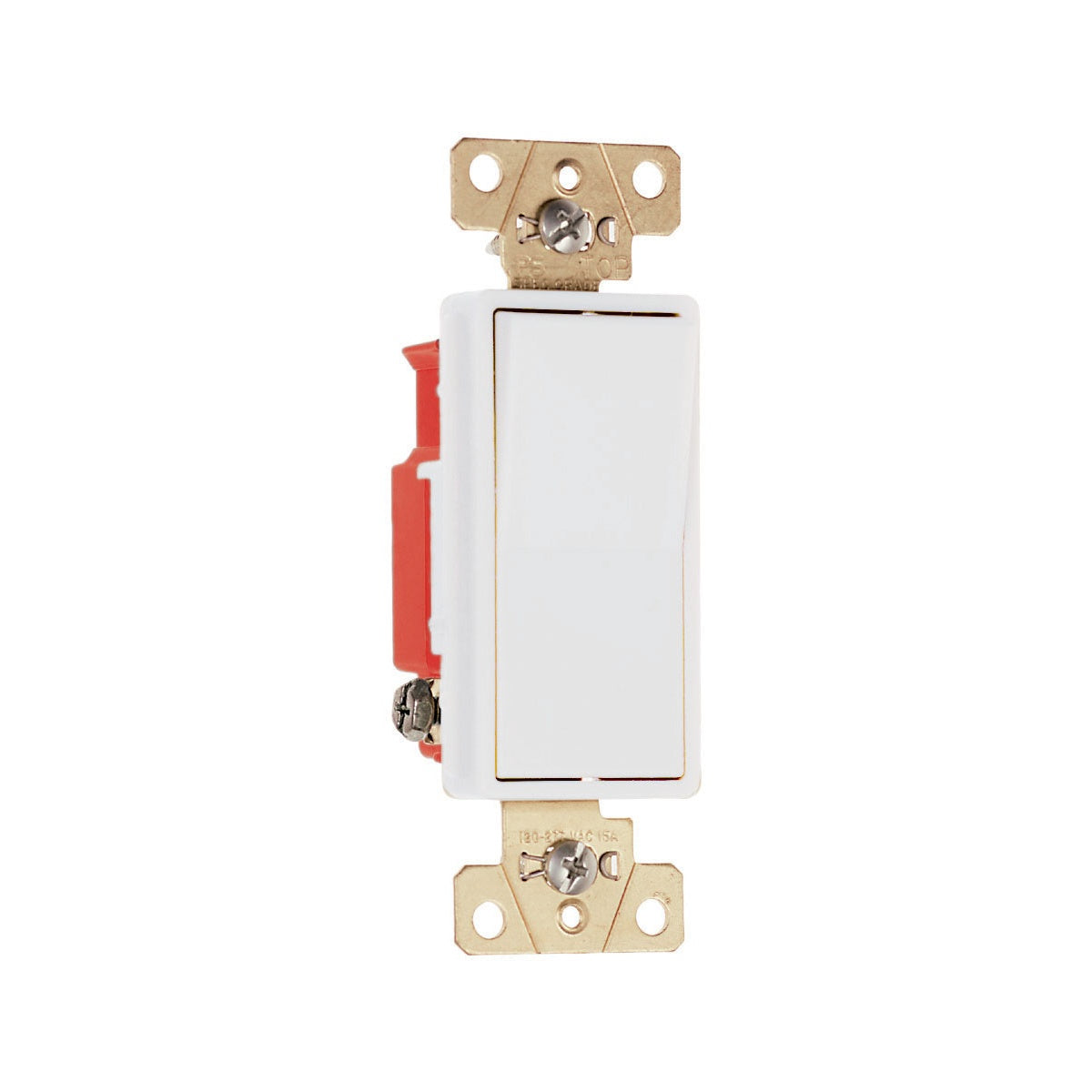

20A 120V/277V Specification Grade 3-Way Decorator Paddle Switch, White

This 3-way decorator paddle switch is designed for residential and commercial electrical applications, providing reliable switching control for lighting and other electrical loads. Ideal for electrical distributors and lighting solutions providers, the switch supports 20 Amp current at 120/277 volts AC, suitable for wire and cable installations requiring specification-grade performance. It features a wall-mount design with back and side wiring capabilities, facilitating efficient installation and secure connections.

Specifications

• Manufacturer: Pass & Seymour
• Manufacturer Part Number: 2623W
• Application: Residential/Commercial
• Amperage Rating: 20 Amp
• Contact Rating: 20 Amp, 120/277 Vac
• Number of Poles: 3
• Action: Three pole
• Actuator: Rocker switch
• Mounting: Wall
• Enclosure Material: Nylon
• Color: White
• Dimensions: 4.2 in (Height) x 1.3 in (Width)
• Product Weight: 0.2 lbs
• Country of Origin: Mexico
• UPC: 785007539554

Features

• Specification grade construction for enhanced durability and performance
• Back and side-wire capability for flexible wiring options
• Cushioned thermoplastic paddle for smooth, quiet operation
• Heavy-gauge steel strap plated for corrosion resistance
• Auto-ground on strap speeds installation and secures mounting screws
• Single rocking butterfly contact design reduces moving parts for longer life
• Tri-drive brass terminal screws with screw-pressure-plate back wiring for secure connections
