20062, Device Wiring Conductor
SKU: #282175
Part: #20062
UPC: 780321200623
20062, Device Wiring Conductor
SKU: #282175
Part: #20062
UPC: 780321200623
Description

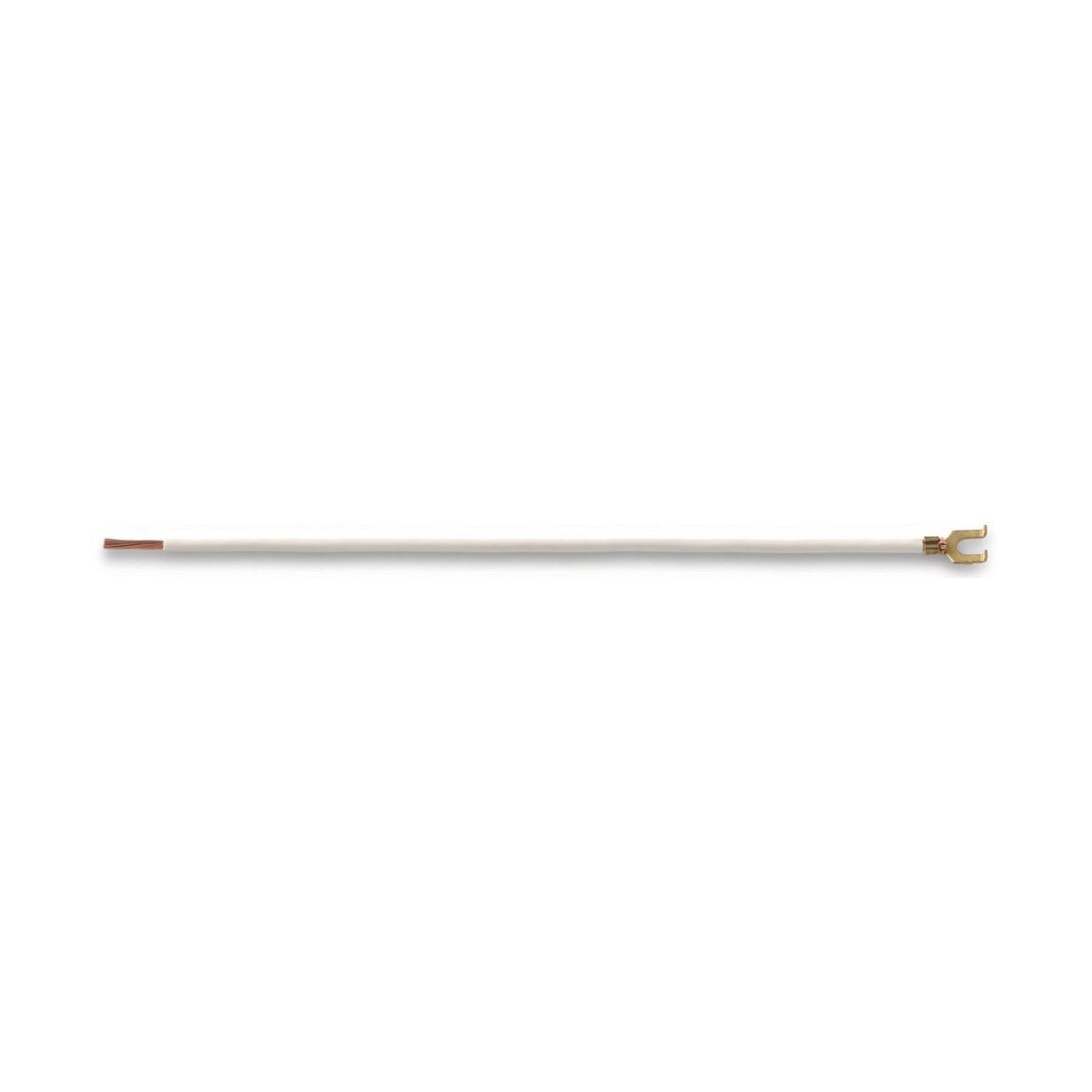

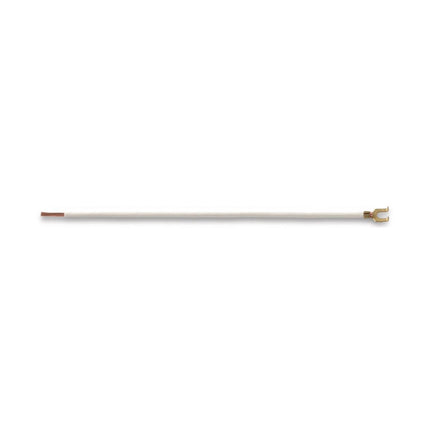

20062, Device Wiring Conductor – Device Wiring Conductor
The 20062 Device Wiring Conductor is a flexible 12 AWG stranded wire designed for residential, commercial, and industrial electrical applications. It features an 8-inch length with a white insulation color and a factory-crimped flanged spade terminal stripped to 5/8 inch, facilitating quick and reliable connections. This conductor is ideal for wiring devices in single or multi-gang metallic boxes, providing efficient installation for electrical distributors, lighting solutions, wire and cable suppliers, and switchgear suppliers. It is UL approved for use in Canada and the US and complies with the National Electrical Code (NEC).
Specifications
- Conductor Type: Stranded
- Conductor Size: 12 AWG
- Length: 8 in
- Color: White
- Terminal Type: One (1) Flanged Spade Terminal, 5/8 Inch Stripped
- Application: Residential, Commercial, Industrial
- Product Weight: 0.8 lbs
- Approvals: UL (Canada and US)
- Applicable Standard: NEC
- Dimensions (W x H): 2.75 in x 9.5 in
- Manufacturer: Engineered Products Company
- Manufacturer Part Number: 20062
Features
- Factory-crimped flanged spade terminal for secure and fast device connection
- Flexible stranded wire for easy routing and installation in junction boxes
- Designed for use in single and multi-gang metallic boxes
- Meets 2023 NEC Articles 110.14(A) and (B) requirements
- UL Listed for safety and compliance in North America
- Supports labor and time savings by enabling pre-wiring of devices in shops or on-site
