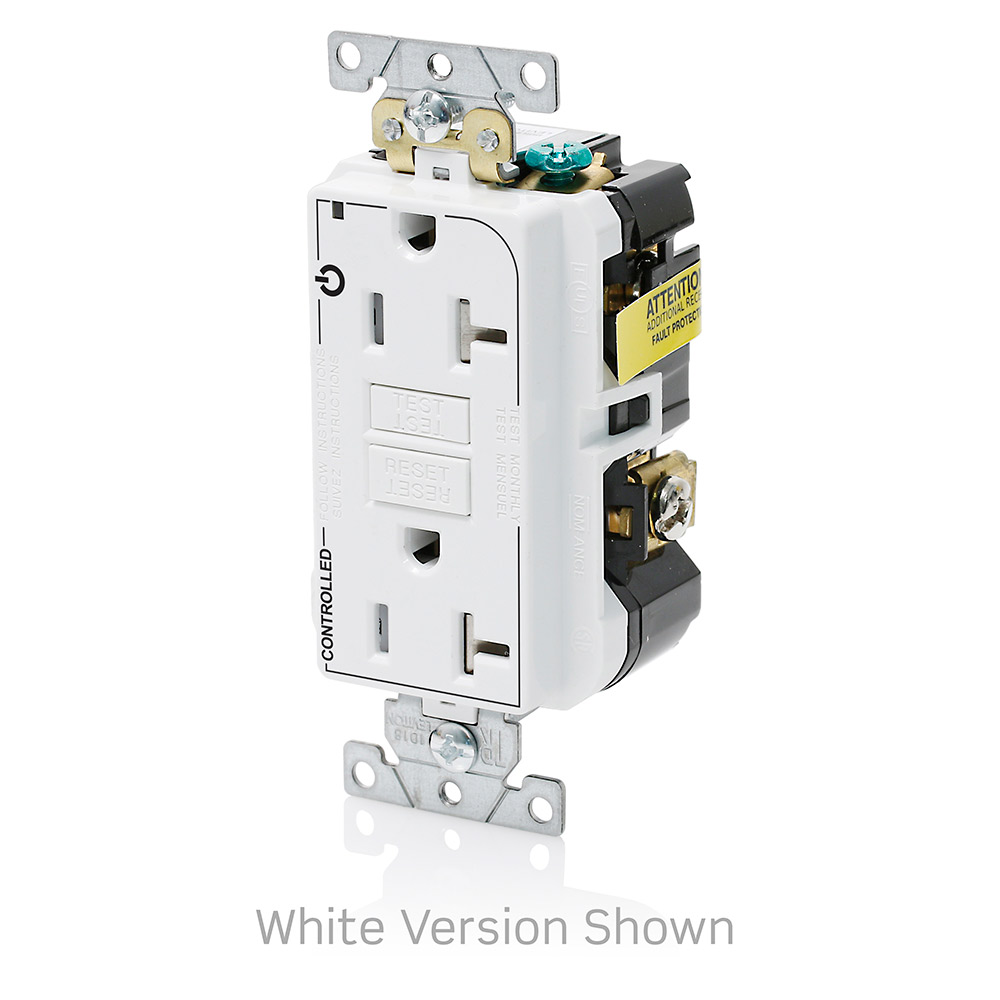

20 Amp SmartlockPro® Marked Controlled GFCI Receptacle/Outlet, Industrial Grade, Tamper-Resistant

The 20 Amp SmartlockPro® Marked Controlled GFCI Receptacle/Outlet is designed for industrial and commercial electrical applications requiring enhanced safety and compliance. This extra heavy-duty industrial grade duplex receptacle features tamper-resistant shutters and power indication, making it suitable for controlled plug load systems. It supports 125 Volt, 2-pole, 3-wire configurations with self-grounding capabilities, ideal for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers.

Specifications

• Amperage: 20 amperes
• Voltage: 125 Volt
• Device Type: Duplex Receptacle Outlet
• Number of Poles: 2
• Number of Wires: 3
• Grade: Extra Heavy-Duty Industrial Specification
• Grounding: Self-Grounding
• Horsepower Rating: 1 horse power
• NEMA Configuration: 5-20R
• Color: White
• Operating Temperature: -35 degrees Celsius
• Manufacturer Part Number: G5362-2TW
• Country of Origin: China
• Product Weight: 0.3880 lbs

Features

• Marked "Controlled" to comply with NEC Article 406.3(E), CA Title 24, and ASHRAE Energy Efficiency Standard 90.1 for plug load control systems
• SmartlockPro¬Æ technology cuts off power upon ground-fault detection to protect against electric shock and electrocution
• Extra heavy-duty industrial grade construction ensures durability and reliability in demanding environments
• Tamper-resistant design prevents unintended contact with live parts, enhancing safety
• Power indication LED provides visual confirmation of power presence
• Back or side wiring options for flexible installation
• Self-grounding for secure and reliable grounding connection

Downloads & Links

• Straight Blade Receptacle Catalog Q-1101H
• Q-914F Controlled Receptacle Marking
• PK-A3080-10-00-2I-W
• product-cleaning-instructions
