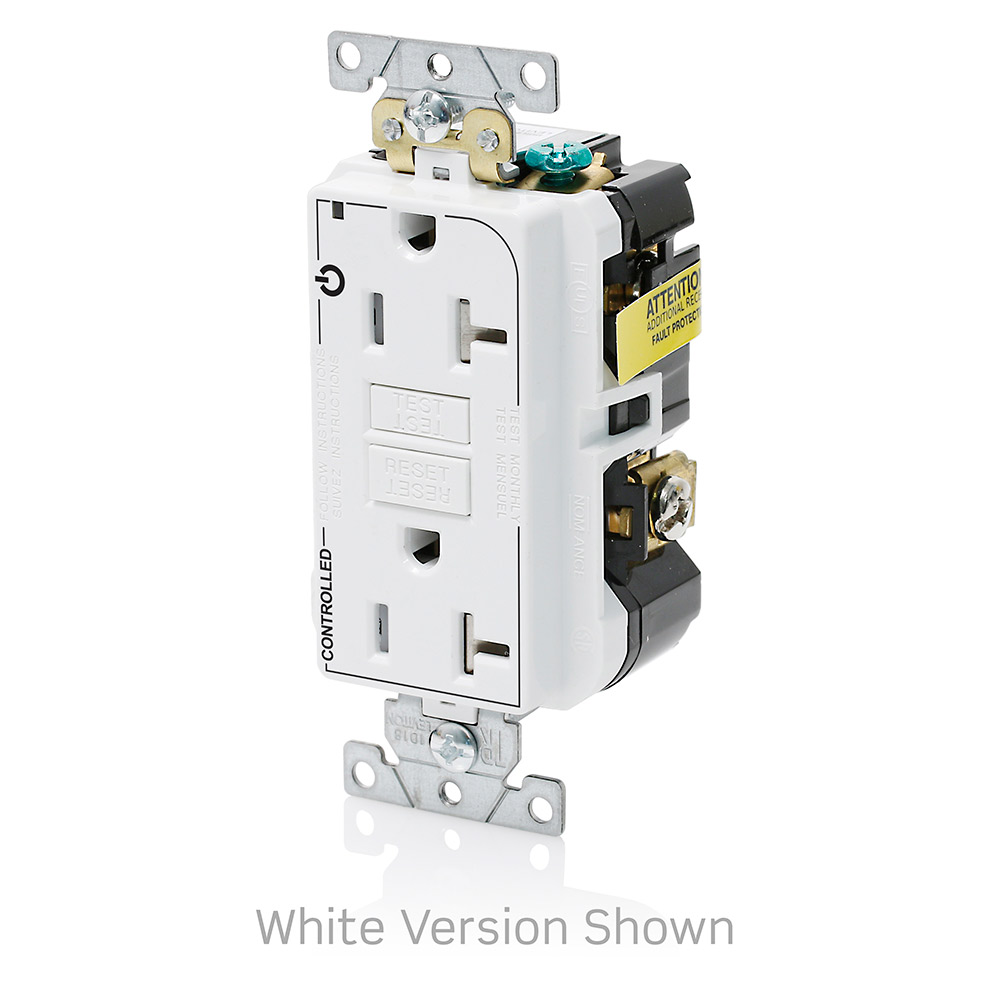

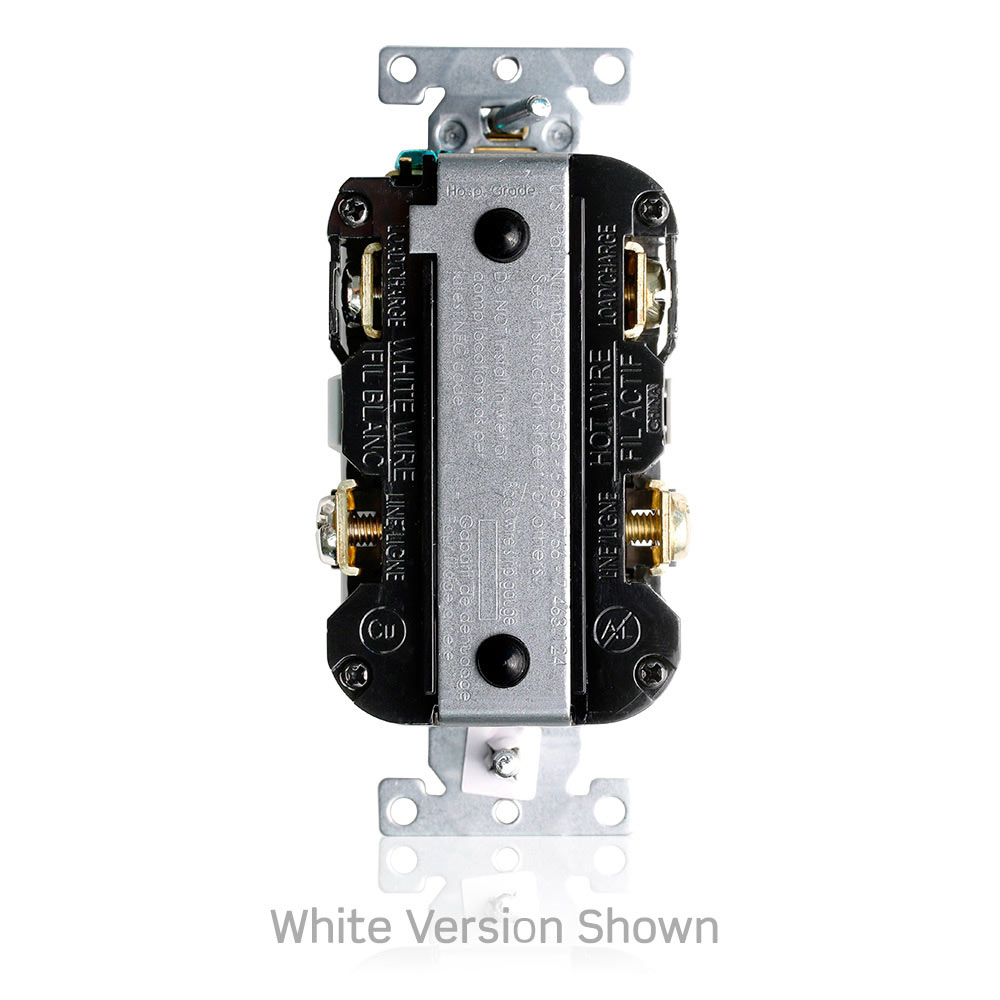

20 Amp SmartlockPro® Marked Controlled GFCI Receptacle/Outlet, Industrial Grade, Tamper-Resistant

This 20 Amp SmartlockPro® Marked Controlled GFCI Receptacle/Outlet by Leviton is an extra heavy-duty industrial grade duplex receptacle designed for reliable electrical distribution and lighting solutions. It features tamper-resistant construction and power indication, making it suitable for controlled plug load applications in commercial and industrial environments. The device supports back or side wiring and complies with National Electrical Code requirements for marked "controlled" receptacles, ideal for integration by electrical distributors and switchgear suppliers.

Specifications

• Amperage: 20 amperes
• Voltage: 125 Volt
• Device Type: Duplex Receptacle Outlet
• Grade: Extra Heavy-Duty Industrial Specification
• NEMA: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Horsepower Rating: 1 horse power
• Operating Temperature: -35 degrees Celsius
• Color: Ivory
• Country of Origin: China
• Manufacturer Part #: G5362-2TI
• Product Weight: 0.3880 lbs

Features

• Marked "Controlled" for compliance with NEC Article 406.3(E), CA Title 24, and ASHRAE Energy Efficiency Standard 90.1
• Tamper-Resistant design prevents unintended contact with live parts
• Power indication LED provides visual confirmation of power presence
• Back or side wiring options for flexible installation
• Extra heavy-duty construction suitable for industrial and commercial applications
• Self-grounding for enhanced safety and reliability
• SmartlockPro¬Æ technology enables modular wiring with quick connect and secure locking
