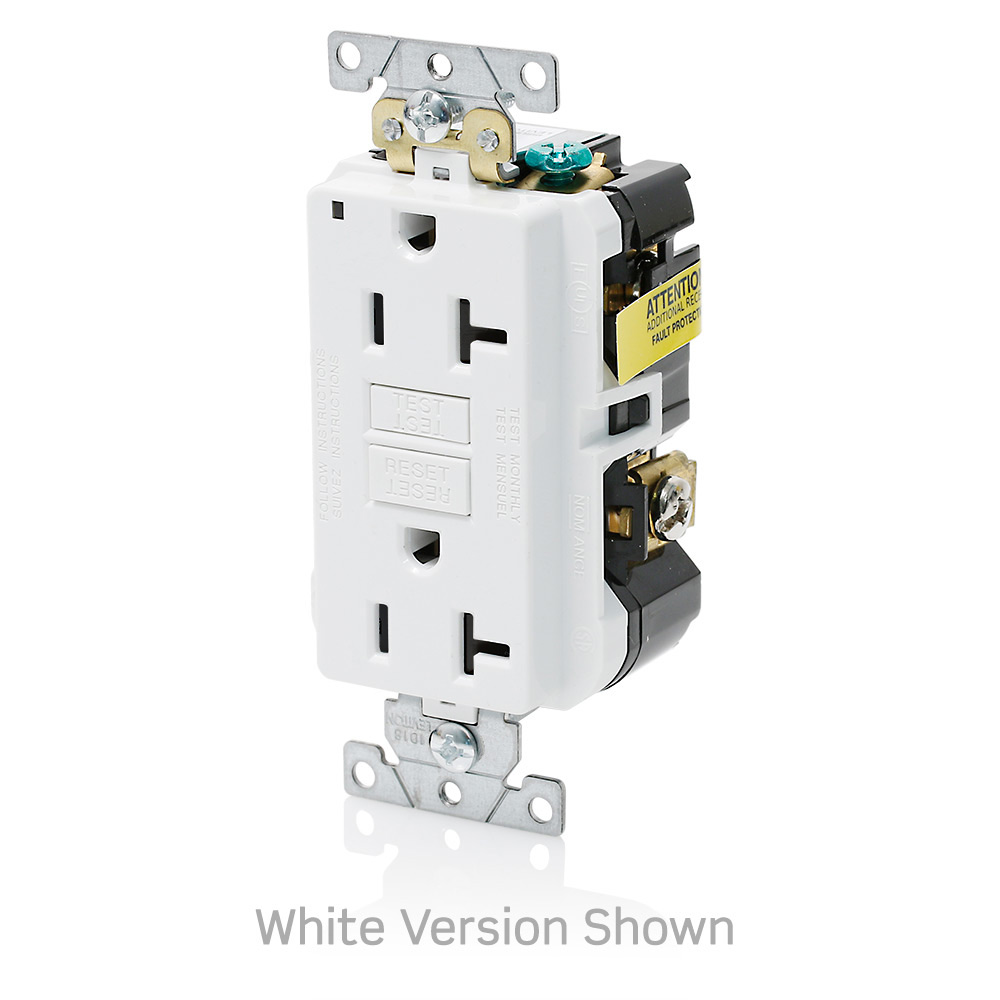

20 Amp SmartlockPro® GFCI Receptacle/Outlet, Industrial Grade

The 20 Amp SmartlockPro® GFCI Duplex Receptacle Outlet is designed for industrial and extra heavy-duty applications, providing ground fault circuit interruption to enhance electrical safety. This device is suitable for use by electrical distributors and switchgear suppliers requiring reliable, specification-grade GFCI protection in commercial and industrial environments. The receptacle supports 125 Volt operation with back or side wiring options and features self-grounding for ease of installation.

Specifications

• Amperage: 20 amperes
• Voltage: 125 Volt
• Device Type: Duplex Receptacle Outlet
• Grade: Extra Heavy-Duty Industrial Specification
• NEMA: WD-1
• Enclosure: WD-6
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Body Material: Polycarbonate
• Face Material: PBT
• Color: Almond
• Operating Temperature: -35 degrees Celsius
• Flammability Class: Rated V-0 Per UL 94
• Country of Origin: China

Features

• SmartlockPro¬Æ self-test functionality ensures periodic automatic verification of GFCI electronics for reliable ground fault protection.
• Extra heavy-duty industrial specification grade construction for demanding electrical environments.

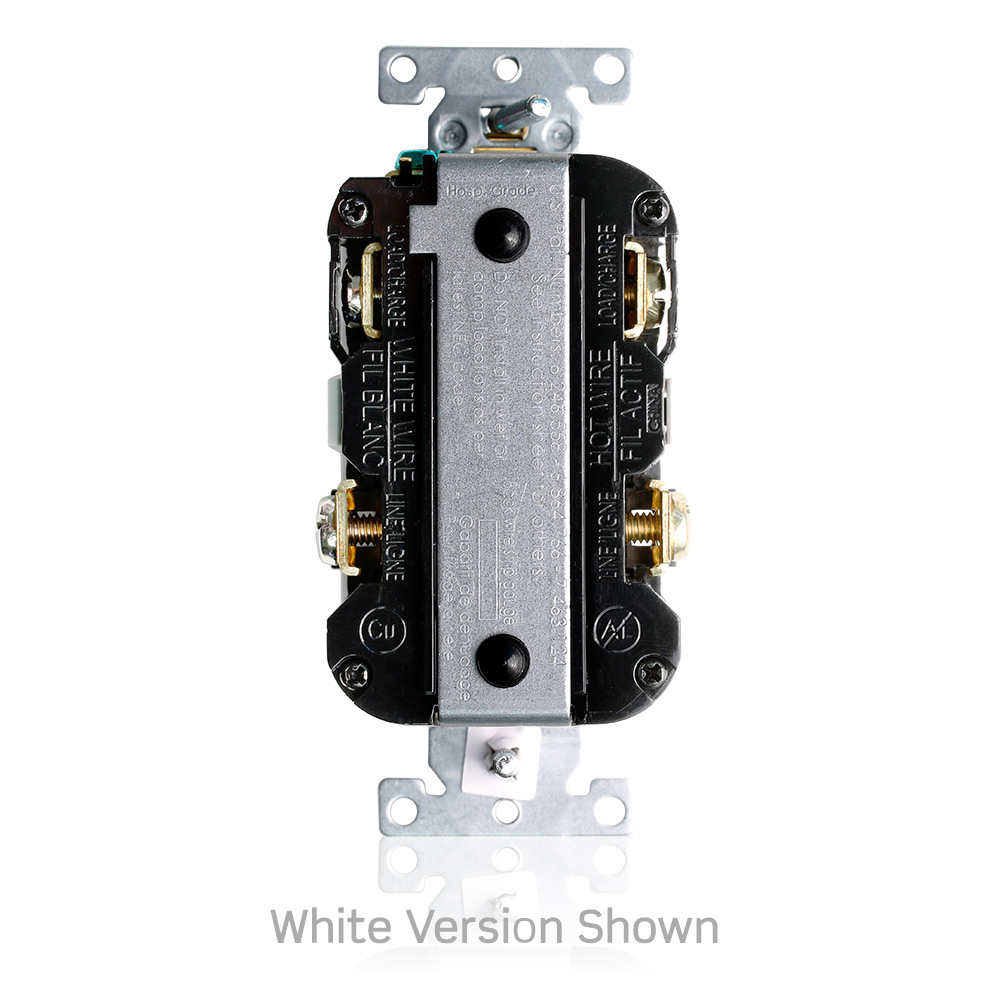

• Back or side wiring options accommodate various installation preferences.
• Self-grounding design simplifies installation and ensures proper grounding connection.
• Durable polycarbonate body and PBT face materials provide robust mechanical and electrical performance.
• Compatible with standard 20 Amp, 125 Volt circuits, meeting NEMA WD-1 requirements.
