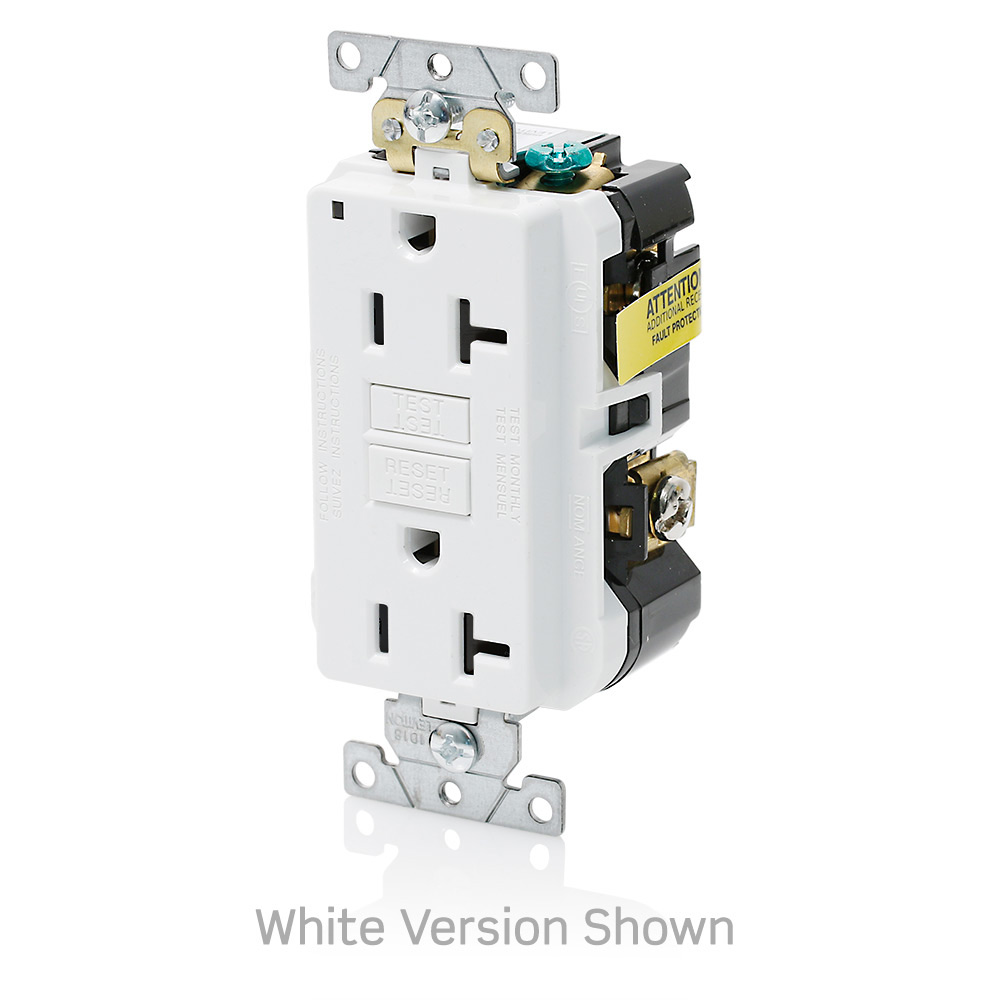

20 Amp SmartlockPro® GFCI Receptacle Outlet Industrial Grade

The 20 Amp SmartlockPro® GFCI Receptacle Outlet by Leviton is an extra heavy-duty industrial specification grade duplex receptacle designed for electrical distributors and lighting solutions requiring reliable ground fault protection. It operates at 125 volts and features a self-test mechanism to ensure ongoing safety. Suitable for use in commercial and industrial environments, this device supports back or side wiring and is self-grounding, making it a robust choice for wire and cable installations and switchgear applications.

Specifications

• Amperage: 20 amperes
• Voltage: 125 Volt
• Device Type: Duplex Receptacle Outlet
• Grade: Extra Heavy-Duty Industrial Specification
• NEMA Configuration: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Horsepower Rating: 1 horse power
• Color: White
• Operating Temperature: -35 degrees Celsius
• Product Weight: 0.3770 lbs
• Country of Origin: China
• Manufacturer Part Number: G5362-W

Features

• SmartlockPro® self-test technology for automatic periodic testing of GFCI functionality

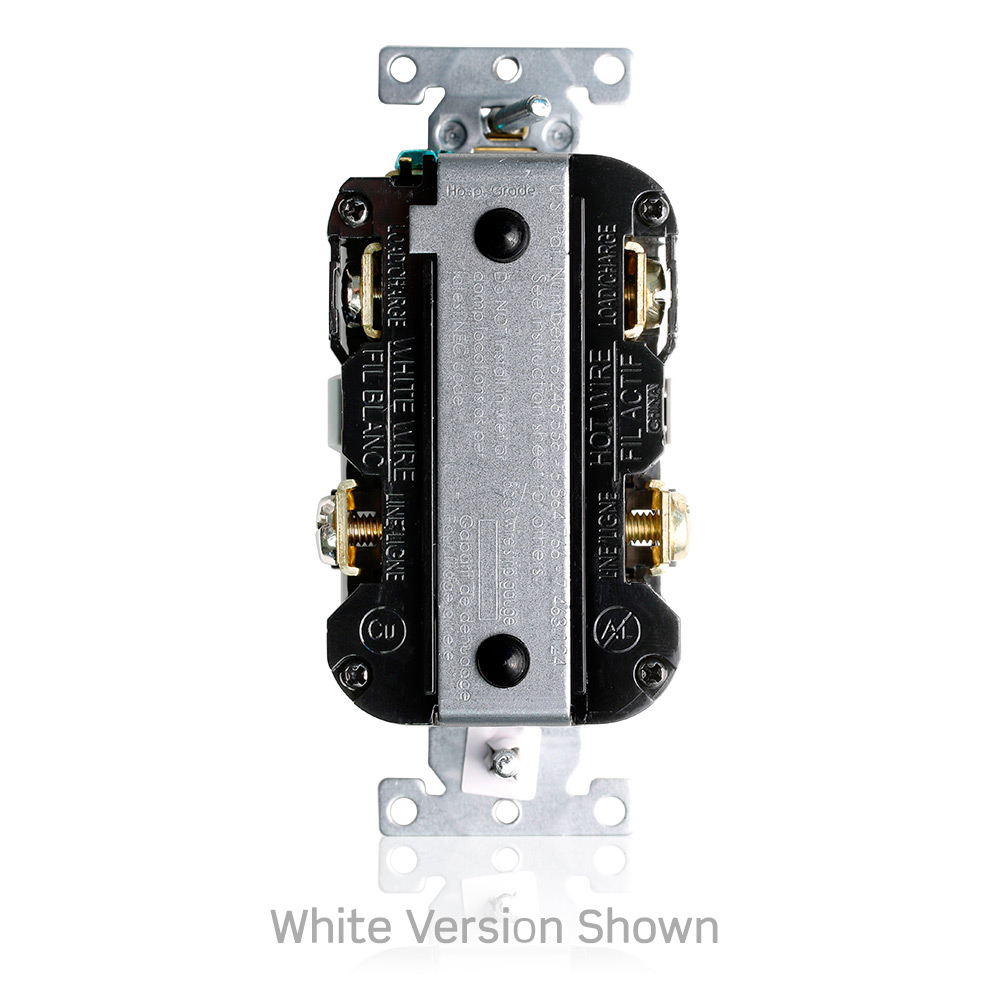

• Back or side wire connection options for versatile installation
• Self-grounding design for enhanced safety and ease of installation
• Industrial specification grade construction for durability in demanding environments
• Includes test and reset buttons with status indicator LED for easy operation and diagnostics
• Compatible with standard NEMA 5-20R configurations

Downloads & Links

• CATSTD-G5362-000-D01
• CATSTD-G5362-000-D01
• PK-A3080-10-00-2I-W
• Straight Blade Receptacle Catalog Q-1101H
• CATSTD-G5362-000-M01
• product-cleaning-instructions
