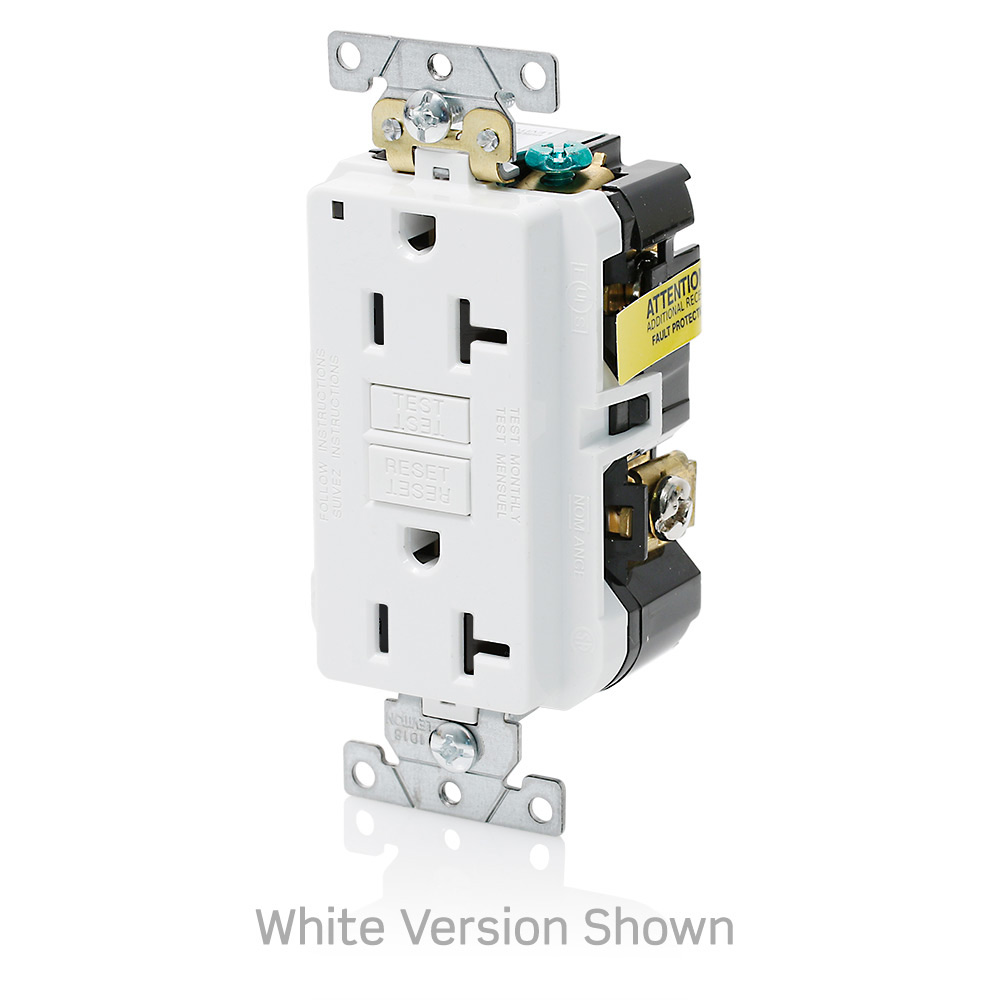

20 Amp SmartlockPro® GFCI Receptacle/Outlet – Industrial Grade Electrical Distributor Solution

The 20 Amp SmartlockPro® GFCI Duplex Receptacle Outlet is an extra heavy-duty industrial specification grade device designed for reliable ground fault circuit interruption. Ideal for applications requiring enhanced electrical safety, this receptacle is suitable for use by electrical distributors and lighting solutions providers in industrial and commercial environments. It supports 125 Volt circuits with NEMA 5-20R configuration and offers self-testing functionality to ensure ongoing protection against ground faults.

Specifications

• Device Type: Duplex Receptacle Outlet
• Amperage: 20 amperes
• Voltage: 125 Volt
• NEMA Configuration: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Grade: Extra Heavy-Duty Industrial Specification
• Grounding: Self-Grounding
• Horsepower Rating: 1 horse power
• Operating Temperature: -35 degrees Celsius
• Color: Red
• Manufacturer Part Number: G5362-R
• Country of Origin: China
• Product Weight: 0.3750 lbs

Features

• SmartlockPro® self-test technology for periodic automatic verification of GFCI functionality
• Lockout feature prevents reset if miswired, no power is supplied, or internal test fails

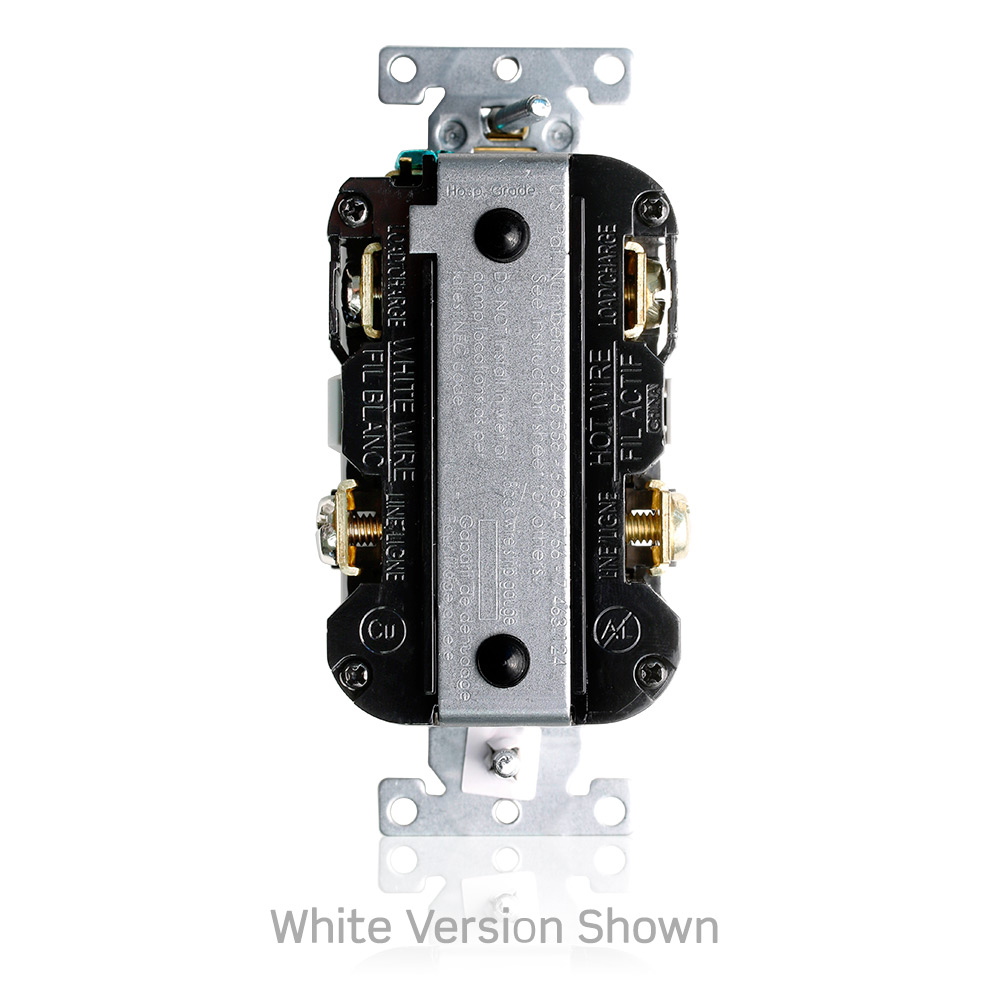

• Back or side wiring options for installation flexibility
• Self-grounding design for reliable grounding connection
• Industrial-grade durability suitable for heavy-duty applications
• Status indicator LED provides visual confirmation of operational status
• Compatible with copper or copper-clad wire (not for aluminum wire)
• Designed for installation according to national and local electrical codes
