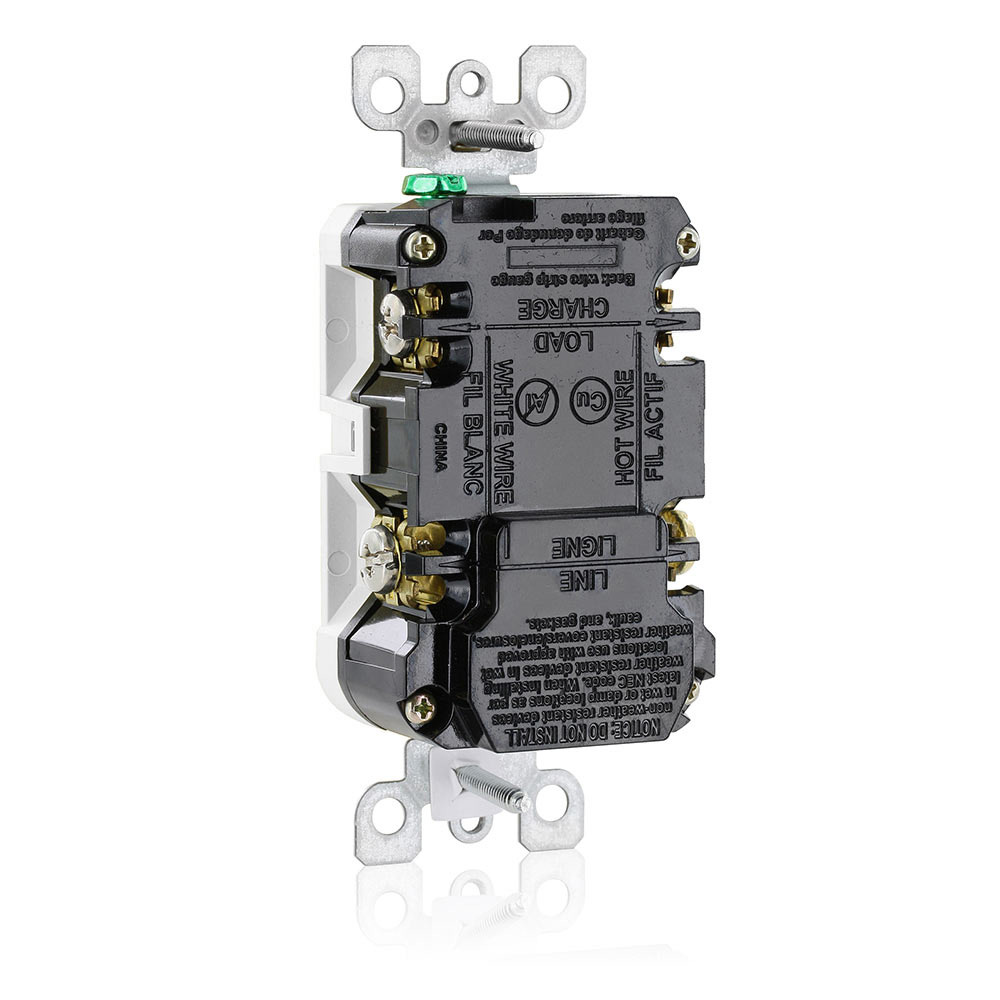

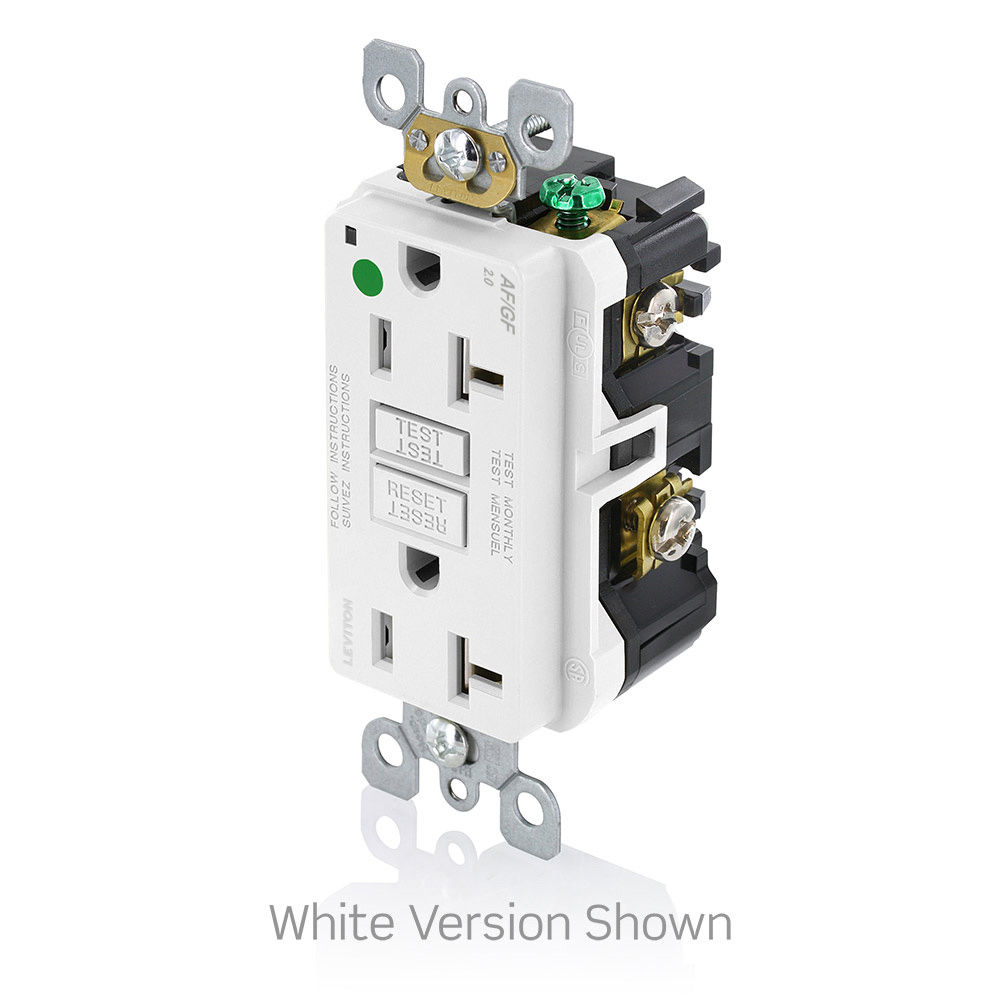

20 Amp SmartlockPro® AFCI/GFCI Receptacle/Outlet, Hospital Grade, Tamper-Resistant

This hospital-grade, tamper-resistant duplex receptacle combines AFCI and GFCI protection in a single device designed for safety and durability in healthcare and commercial environments. It is ideal for electrical distributors and switchgear suppliers seeking reliable lighting solutions, wire and cable compatibility, and enhanced electrical safety. The device features a NEMA 5-20R configuration, supports 20 amperes at 125 volts, and includes self-grounding capabilities.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: AGTR2-HGR
• Device Type: Duplex Receptacle Outlet
• Amperage: 20 amperes
• Voltage: 125 Volt Feed-Through
• NEMA Configuration: 5-20R
• Color: Red
• Body Material: Polycarbonate
• Face Material: Thermoplastic
• Number of Poles: 2
• Number of Wires: 2
• Grounding: Self-Grounding
• Flammability Class: Rated V-2 Per UL 94
• Operating Temperature: -35 degrees Celsius
• Country of Origin: China
• Product Weight: 0.3520 lbs

Features

• Hospital Grade construction with enhanced durability and performance
• Combination AFCI/GFCI protection for arc-fault and ground-fault safety
• Tamper-Resistant design to prevent unintended contact with live parts
• Self-Test functionality for automatic testing of GFCI protection
• Red color for easy identification in circuit applications
• Feed-Through wiring capability for simplified installation

Downloads & Links

• product-cleaning-instructions
• Straight Blade Receptacle Catalog Q-1101H
• HG AFCI-GFCI Receptacle PB Q-1230
