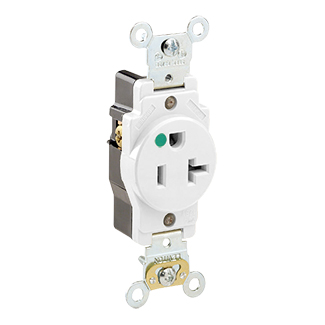

20 Amp Single Receptacle/Outlet, Hospital Grade, Self-Grounding

This heavy-duty hospital grade single receptacle/outlet is designed for critical healthcare and commercial applications requiring reliable and durable electrical connections. It features a smooth face and is rated for 20 amperes at 125 volts, suitable for 2-pole, 3-wire wiring configurations. The device supports back or side wiring and includes self-grounding for enhanced safety. Ideal for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers focusing on healthcare environments.

Specifications

• Device Type: Single Receptacle Outlet
• Grade: Heavy-Duty Hospital
• Amperage: 20 amperes
• Voltage: 125 Volt
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Body Material: Nylon
• Face Material: Nylon
• Color: White
• Dielectric Voltage: 2000 volts
• Horsepower Rating: 1 horse power
• Flammability Class: Rated V-2 Per UL94
• Operating Temperature: -40 degrees Celsius
• NEMA: WD-6
• Manufacturer Part #: 8310-W
• Product Weight: 9.42 lbs

Features

• Heavy-duty construction meeting stringent hospital grade performance requirements
• Smooth face design for easy cleaning and maintenance in healthcare settings
• Self-grounding feature ensures reliable grounding connection
• Back or side wire capability for flexible installation options
• Durable nylon body and face materials resistant to impact and flame

Downloads & Links

• Straight Blade Receptacle Catalog Q-1101H
• product-cleaning-instructions
