Description
Features

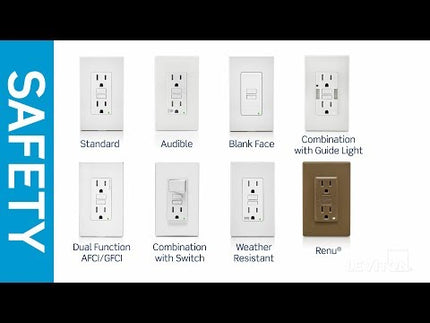

- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers

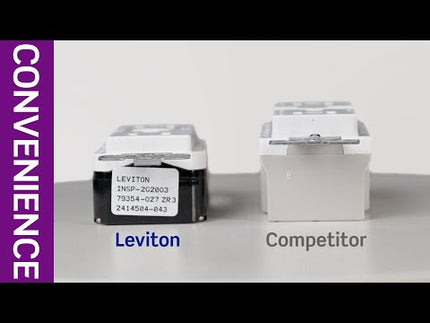

- Reduced depth makes it easier to install in any electrical box, even shallow ones

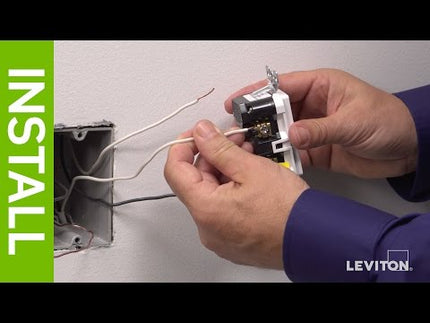

- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
- SAFE - Delivers continuous ground fault protection
- SELF TESTING - Automatically self-tests to ensure it can respond to ground fault
- SIMPLE - Status indicator light provides simple, intuitive feedback
NEMA
- 5-20R
Color Variations
- Brown
Specifications
- Country of Origin: China
- RoHS Compliant: False
Standards and Certifications
- ANSI: C-73
- CSA C22.2 No. 42: Yes
- CSA-C22.2 No. 144.1-06: File LR-57811
- Fed Spec WC-596: Yes
- MIL-SPEC: A-A-55459-SB
- NOM: Yes
- UL 943: File E48380
- UL498: Yes
Mechanical Specifications
- Amperage: 20 A
- Body Material: Polycarbonate
- Brand: SmartlockPro
- Color: Light Almond
- Face Material: Thermoplastic
- Feature: Self-Test
- Fed Spec WC-596: Yes
- Grade: Residential/Commercial Specification Grade
- Grounding: Self Grounding
- NEMA: 5-20R
- Pole: 2
- Product ID: Ratings are permanently marked on device
- Standards and Certifications: UL/CSA, NEMA WD6
- Strap Material: Galvanized Steel
- Tamper Resistant: Yes
- Terminal Accom.: 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Termination: Back & Side
- Torque Range: 14 – 18 in.-lbs
- Trip Level: Class A, 5mA plus or minus 1mA
- Type: Standard
- Voltage: 125 VAC
- Warranty: 2-Year Limited
- Wire: 3
Product Features
- Wallplate: Included
AC Horsepower Ratings
- At Rated Voltage: 1 HP
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating: 10KA
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Environmental Specifications
- Body Material: Polycarbonate
- Clamps: Brass
- Face Material: Thermoplastic
- Grounding Screw: Plated Steel
- Line Contacts: Brass Triple-Wipe
- Notes: w/ Wallplate
- Operating Temperature: -35C to +66C
- Terminal Screws: Plated Steel
- Yoke: Zinc-Plated Steel
Material Specifications
- Body Material: Polycarbonate
- Clamps: Brass
- Face Material: Thermoplastic
- Grounding Screw: Plated Steel
- Line Contacts: Brass Triple-Wipe
- Notes: w/ Wallplate
- Product ID: Ratings are permanently marked on device
- Terminal Accom.: 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Screws: Plated Steel
- Yoke: Zinc-Plated Steel
Electrical Specifications
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -35C to +66C
- Short Circuit Current Rating: 10KA
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
