Features

• All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.

NEMA

• 5-20R

Color Variations

• Gray

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• Applicable Standards: UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
• CSA C22.2 No. 42: File 152105
• Certification/Listing: cULus, NOM-ANCE
• NEMA: WD-6
• NOM: 057
• RoHS: RoHS Compliant
• UL Fed Spec WC-596: File E13399
• UL498HG: File E13399
• Warranty: 10-Year Limited

AC Horsepower Ratings

• Amperage: 20 A
• At Rated Voltage: 1 HP
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 3000V min
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C temperature rise at full rated current
• Voltage: 125 VAC
• Wire: 3

Electrical Specifications

• Amperage: 20 A
• Dielectric Voltage: Withstands 3000V min
• Flammability: Rated V-2 per UL94
• Grounding: Self-Grounding
• Operating Temperature: -40°C to 60°C
• Pole: 2
• Temperature Rise: Max 30C temperature rise at full rated current
• Voltage: 125 VAC
• Wire: 3

Material Specifications

• At Rated Voltage: 1 HP
• Body Material: PBT Polyester Blend
• Clamp Nuts: 0.030" Brass
• Color: Brown
• Face Material: PBT Polyester Blend
• Ground Clips: Brass
• Ground Contacts: 0030" Brass
• Grounding Screw: #8 Hex Head, Triple-Drive Bass
• Line Contacts: 0.030" Phosopher Bronze
• Mounting Screws: Triple-Drive Plated Steel
• Shutter Mechanism: Acetal
• Strap Material: Steel (Galvanized G60)
• Terminal Clamp: Brass
• Terminal Screws: #8 Triple-Drive Brass

Environmental Specifications

• Body Material: PBT Polyester Blend
• Clamp Nuts: 0.030" Brass
• Color: Brown
• Face Material: PBT Polyester Blend
• Ground Clips: Brass
• Ground Contacts: 0030" Brass
• Grounding Screw: #8 Hex Head, Triple-Drive Bass
• Line Contacts: 0.030" Phosopher Bronze
• Mounting Screws: Triple-Drive Plated Steel
• Operating Temperature: -40°C to 60°C
• Shutter Mechanism: Acetal
• Strap Material: Steel (Galvanized G60)
• Terminal Screws: #8 Triple-Drive Brass

Product Features

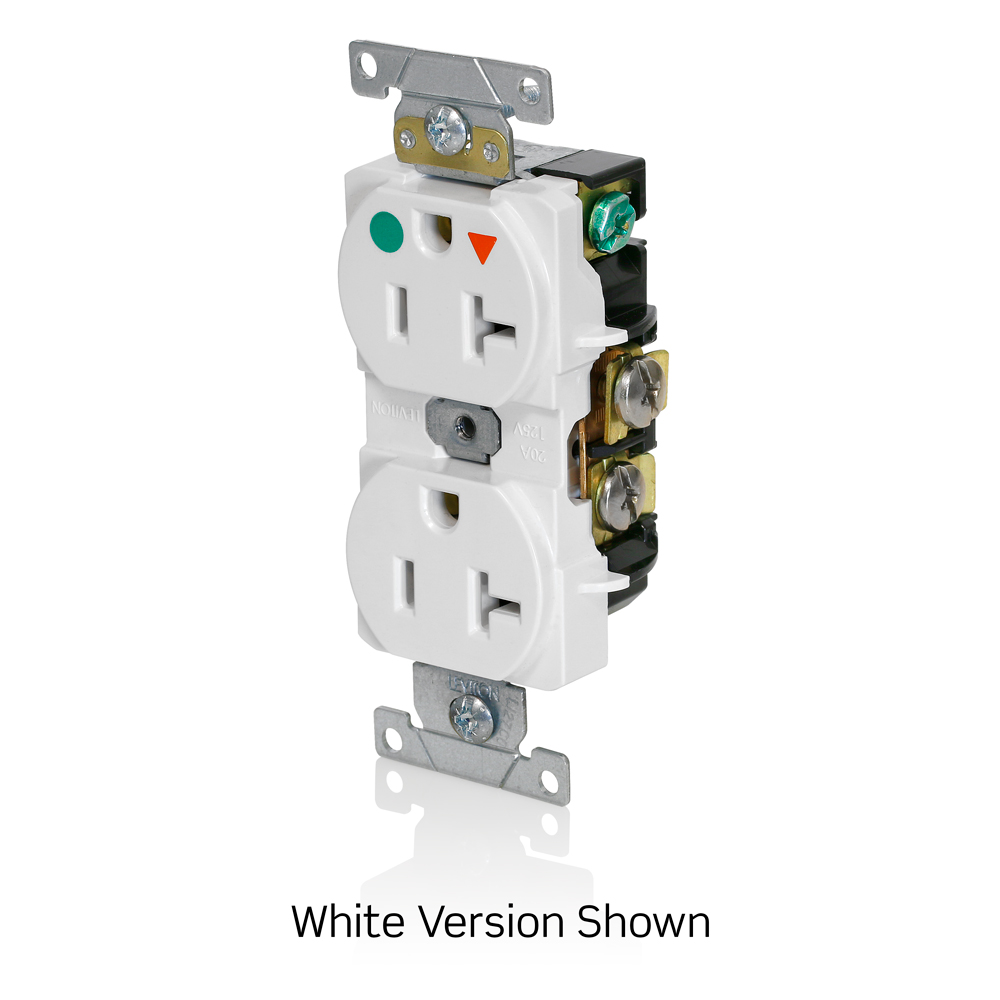

• Device Type: Duplex Receptacle Outlet
• Feature 4: Smooth Face
• Function: Isolated Ground
• Grade: Heavy-Duty Hospital Grade

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Wire Type: Stranded or Solid
