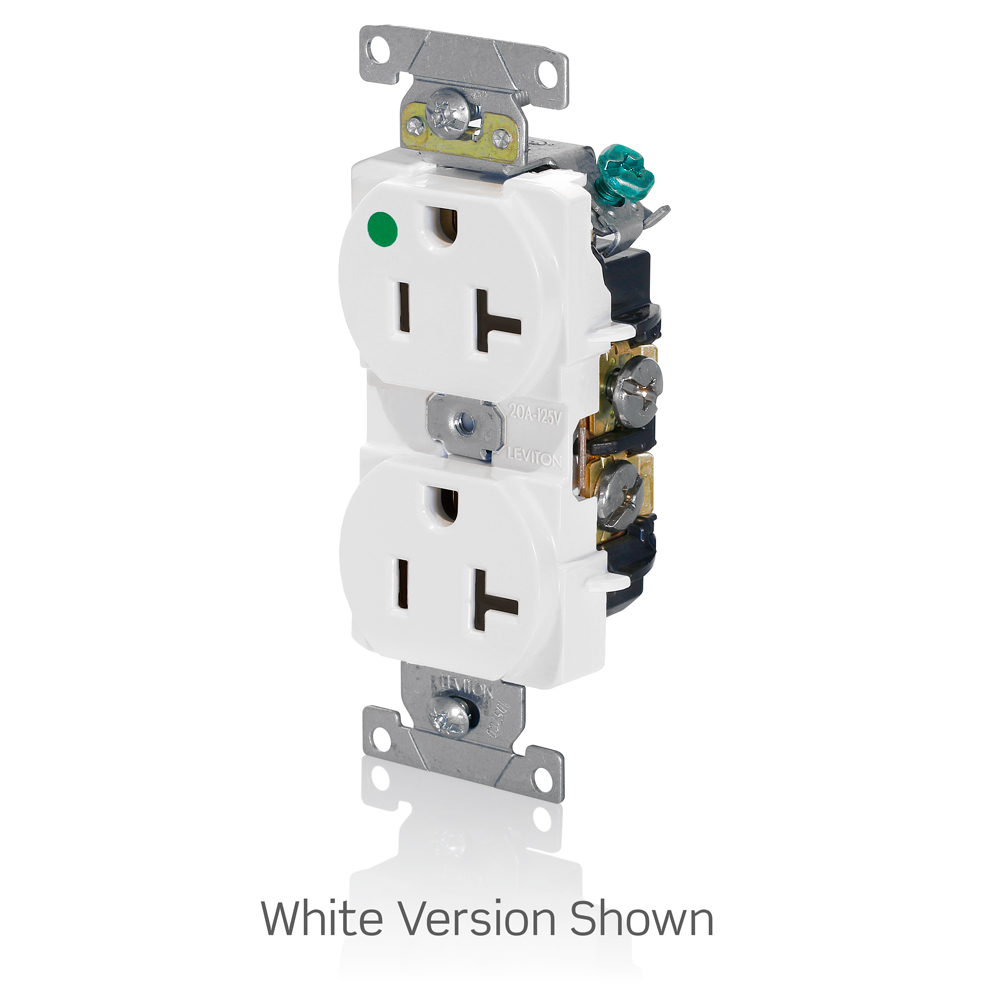

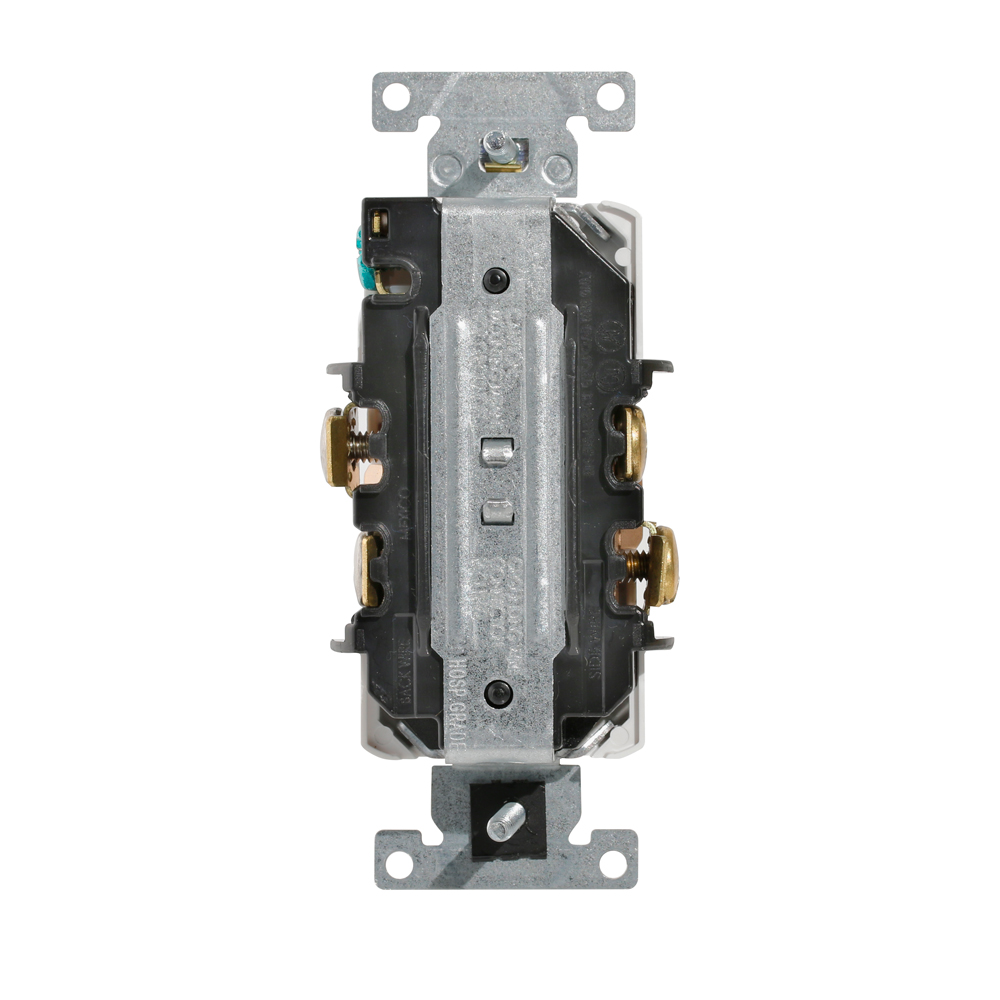

20 Amp Duplex Receptacle/Outlet, Hospital Grade, Self-Grounding

This 20 Amp duplex receptacle is a heavy-duty hospital grade electrical device designed for reliable and safe power distribution in healthcare and commercial environments. It features a smooth face and is engineered for both back and side wiring with #10, 12, or 14 AWG copper or copper-clad wire. The receptacle meets stringent UL and Federal Specification W-C-596 standards for hospital grade durability and performance, making it suitable for critical applications requiring consistent electrical reliability. Its self-grounding design ensures secure grounding to metal boxes, enhancing safety for sensitive equipment and personnel.

Specifications

• Device Type: Duplex Receptacle Outlet
• Grade: Heavy-Duty Hospital
• Amperage: 20 amperes
• Voltage: 125 Volt
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Self-Grounding
• Body Material: Nylon
• Face Material: Nylon
• Dielectric Strength: 2000 volts
• Horsepower Rating: 1 horse power
• Operating Temperature: -40 degrees Celsius
• Enclosure: WD-6
• NEMA Configuration: WD-1
• Color: Ivory
• Country of Origin: Mexico
• Manufacturer: Leviton
• Manufacturer Part Number: 8300-HI
• Product Weight: 0.2200 lbs

Features

• Heavy-duty construction compliant with hospital grade UL and Federal Specification W-C-596 standards
• Smooth face design for easy cleaning and maintenance in healthcare settings
• Back and side wiring options accommodate flexible installation
• Self-grounding clip ensures reliable grounding to metal boxes without additional grounding conductors
• Durable nylon body and face materials provide impact resistance and long service life
• Rated for 1 horsepower motor loads
• Wide operating temperature range suitable for diverse environments
