20 Amp Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding
SKU: #8498
Part: #16342-W
UPC: 078477788264
20 Amp Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding
SKU: #8498
Part: #16342-W
UPC: 078477788264
Description

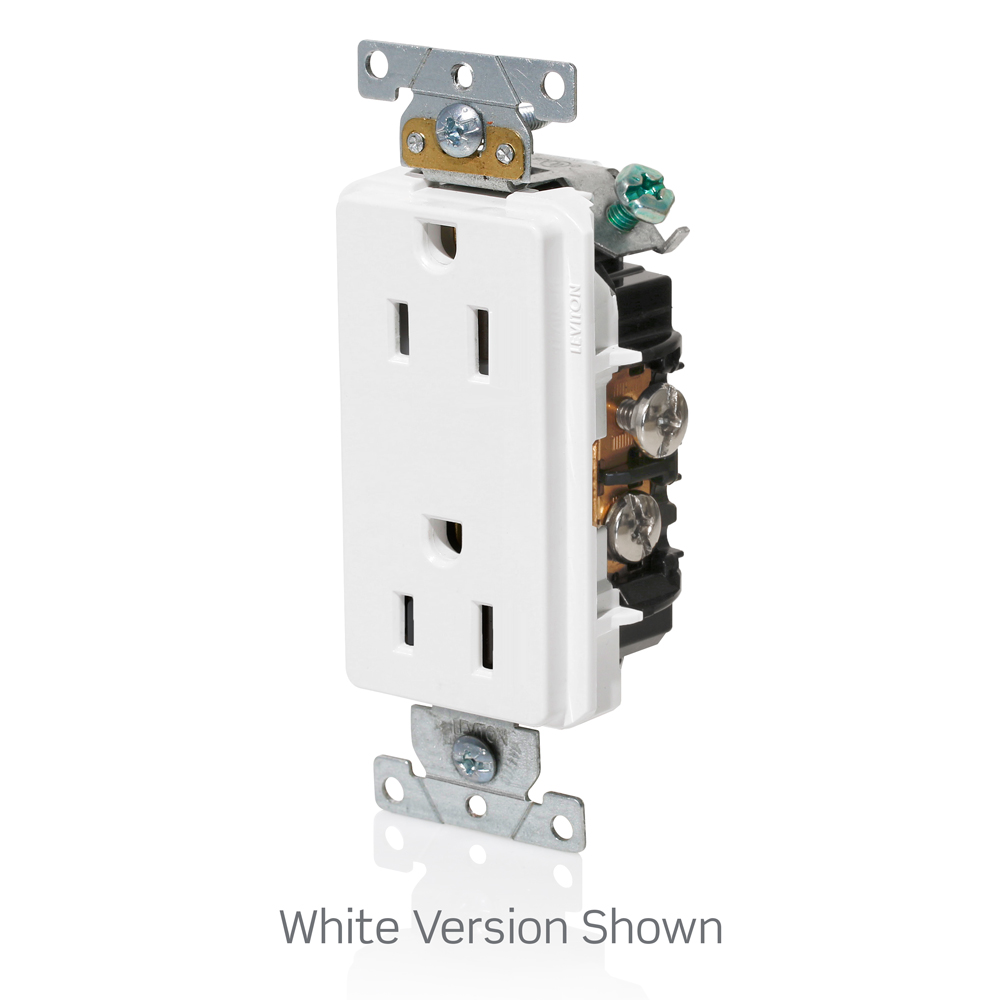

20 Amp Decora Plus Duplex Receptacle/Outlet, Industrial Grade, Self-Grounding
This 20 Amp Decora Plus Duplex Receptacle is designed for heavy-duty industrial and commercial electrical applications. It provides reliable power distribution and is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers. The device features a smooth face and is rated for 125 volts with a NEMA 5-20R configuration, supporting 2-pole, 3-wire systems with self-grounding functionality for enhanced safety and ease of installation.
Specifications
- Amperage: 20 amperes
- Voltage: 125 volts
- Device Type: Duplex Receptacle Outlet
- NEMA Configuration: WD-1
- Enclosure: WD-6
- Number of Poles: 2
- Wire: 3
- Grounding: Self-Grounding
- Dielectric Voltage Withstands: 2000 volts
- Body Material: Thermoplastic Nylon
- Face Material: Nylon
- Flammability Class: Rated V-2 per UL94
- Operating Temperature: -40 degrees Celsius minimum
- Product Weight: 0.2066 lbs
- Country of Origin: Mexico
- Manufacturer: Leviton
- Manufacturer Part Number: 16342-W
- Grade: Commercial Specification
Features
- Heavy-duty industrial specification grade for commercial use
- Self-grounding design with brass grounding clip permanently staked for secure and reliable performance
- Wide receptacle face shelf provides exceptional support to wallplates or box covers
- Impact-resistant thermoplastic nylon body and nylon face for durability
- Oversized brass terminal screw heads for superior clamping force and electrical conductivity
- Supports side wire termination for easier installation
- UL94 V-2 flammability rating ensures fire resistance
- Compatible with back and side wiring configurations (as per related series)
- Rated for a maximum continuous operating temperature of 75°C
- Complies with NEMA WD-1 and WD-6 standards and UL498, CSA C22.2 No.42, Fed Spec W-C-596
- RoHS compliant and backed by a 10-year product warranty
