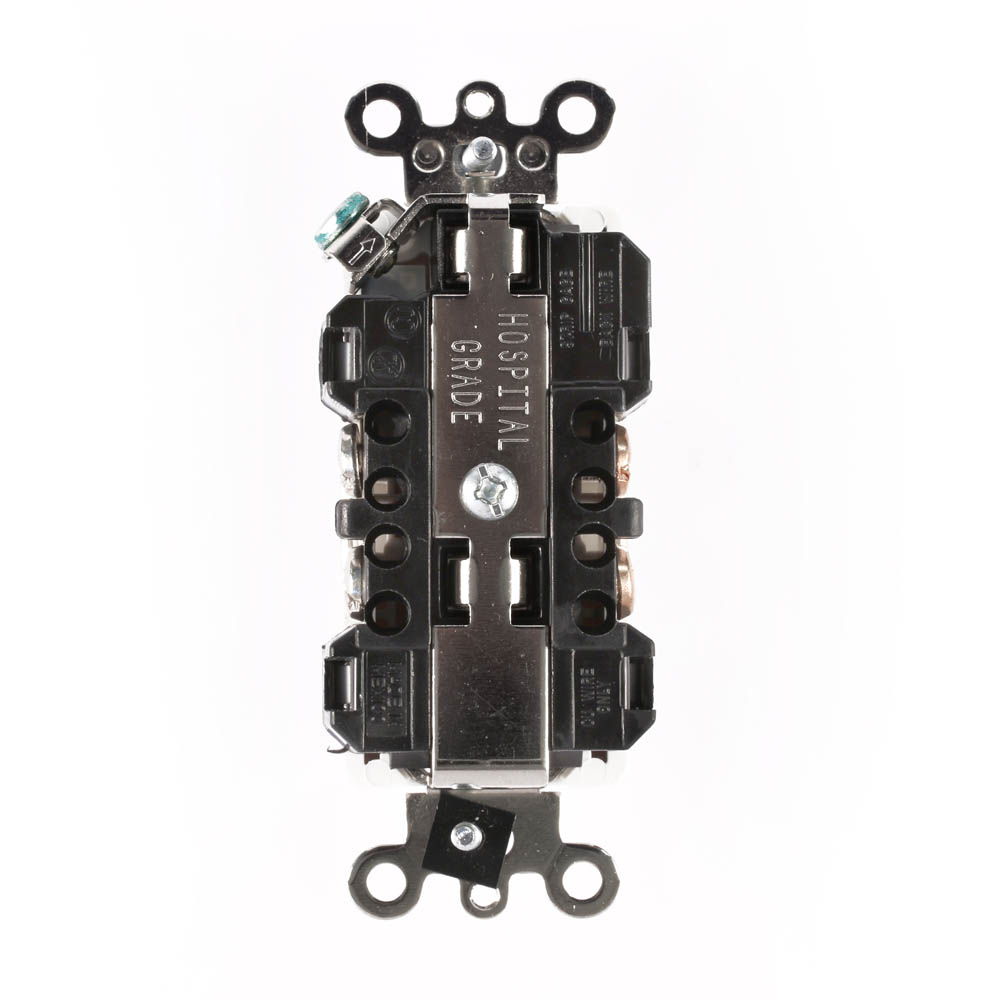

20 Amp Decora Plus Duplex Receptacle/Outlet, Hospital Grade, Self-Grounding

This Decora Plus Duplex Receptacle Outlet is designed for demanding electrical applications, particularly in hospital environments requiring extra heavy-duty performance. It supports 20 amperes and 125 volts with a NEMA 5-20R configuration, providing reliable power distribution. Suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers, this device offers back or side wiring options and features a smooth face design for ease of installation and maintenance.

Specifications

• Device Type: Duplex Receptacle Outlet
• Amperage: 20 amperes
• Voltage: 125 Volt
• NEMA: WD-6 (NEMA 5-20R)
• Number of Poles: 2
• Number of Wires: 3
• Grade: Extra Heavy-Duty Hospital
• Grounding: Self-Grounding
• Body Material: Nylon
• Face Material: Nylon
• Dielectric Strength: 2000 volts
• Flammability Class: Rated V-2 Per UL 94
• Operating Temperature: -40 degrees Celsius
• Color: White
• Product Weight: 0.2400 lbs
• Manufacturer: Leviton
• Manufacturer Part #: 16362-HGW
• UPC: 078477818770

Features

• Extra heavy-duty construction meeting or exceeding hospital grade UL requirements for durability and safety.
• Self-grounding design ensures reliable grounding without additional hardware.
• Smooth face for easy cleaning and maintenance, suitable for hospital and healthcare environments.
• Back or side wiring options provide installation flexibility.
• Complies with Federal Specification W-C-596 for enhanced durability and service life.
• Rated for use in demanding applications with a wide operating temperature range.
