Description
Features
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
NEMA
L6-20R
Specifications
Country of Origin: Mexico
RoHS Compliant: True
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File LR-406
NEMA: WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498: File E13399
Warranty: Limited Lifetime Warranty
Electrical Specifications
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 250 VAC
Wire: 3
AC Horsepower Ratings
At Rated Voltage: 2 HP
Horsepower Rating: 1 HP
Material Specifications
Base Material: Valox
Color: Black
Face Material: Ultramid
Grounding Screw: Brass 8-32
Line Contacts: Brass .040 Thick
Strap Material: Nickel-Plated Brass
Terminal Screws: Brass 10-32
Yoke: Nickel-Plated Brass .050 Thick
Product Features
Brand: V-0-Max
Device Type: Locking Receptacle
Environmental Specifications
Environment: Corrosive
Flammability: Rated V-0 per UL 94
Operating Temperature: -40°C to 60°C
Mechanical Specifications
Product ID: Ratings and NEMA I.D. permanently marked on device
Out of stock,
Call 1-866-853-4768 for availability and price.
Most out of stock items can be ordered and are usually available to ship in 1-3 business days. Popup
ULE Group is a national leader in electrical, power, and lighting distribution. For over 25 years our family-owned and New York operated company has been a trustworthy partner of choice for top contractors in the New York Metropolitan area and we have successfully grown our portfolio to include landmark construction projects throughout the United States. Guided by values like integrity and teamwork, ULE Group believes that its best customers are looking for more than just a supplier. They are looking for a problem-solving partner that can help them deliver innovative electrical solutions. ULE Group's superior service and expertise is available nationwide for projects big and small, we’re committed to being the partner that will get the job done.

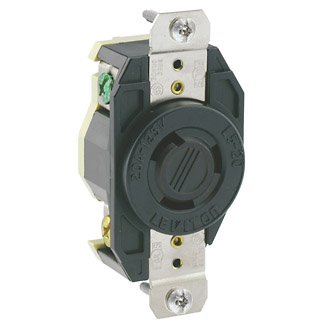

Leviton SKU #10315 Part #2320-B20 Amp, 250 Volt, Flush Mount Locking Receptacle, Industrial Grade
