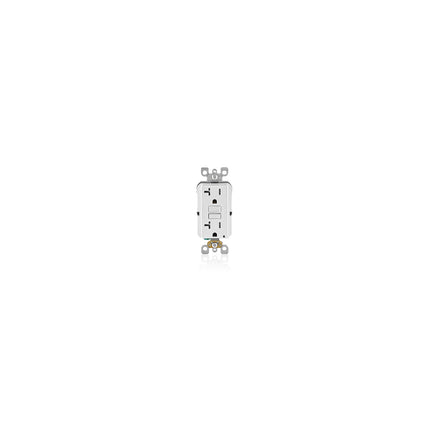

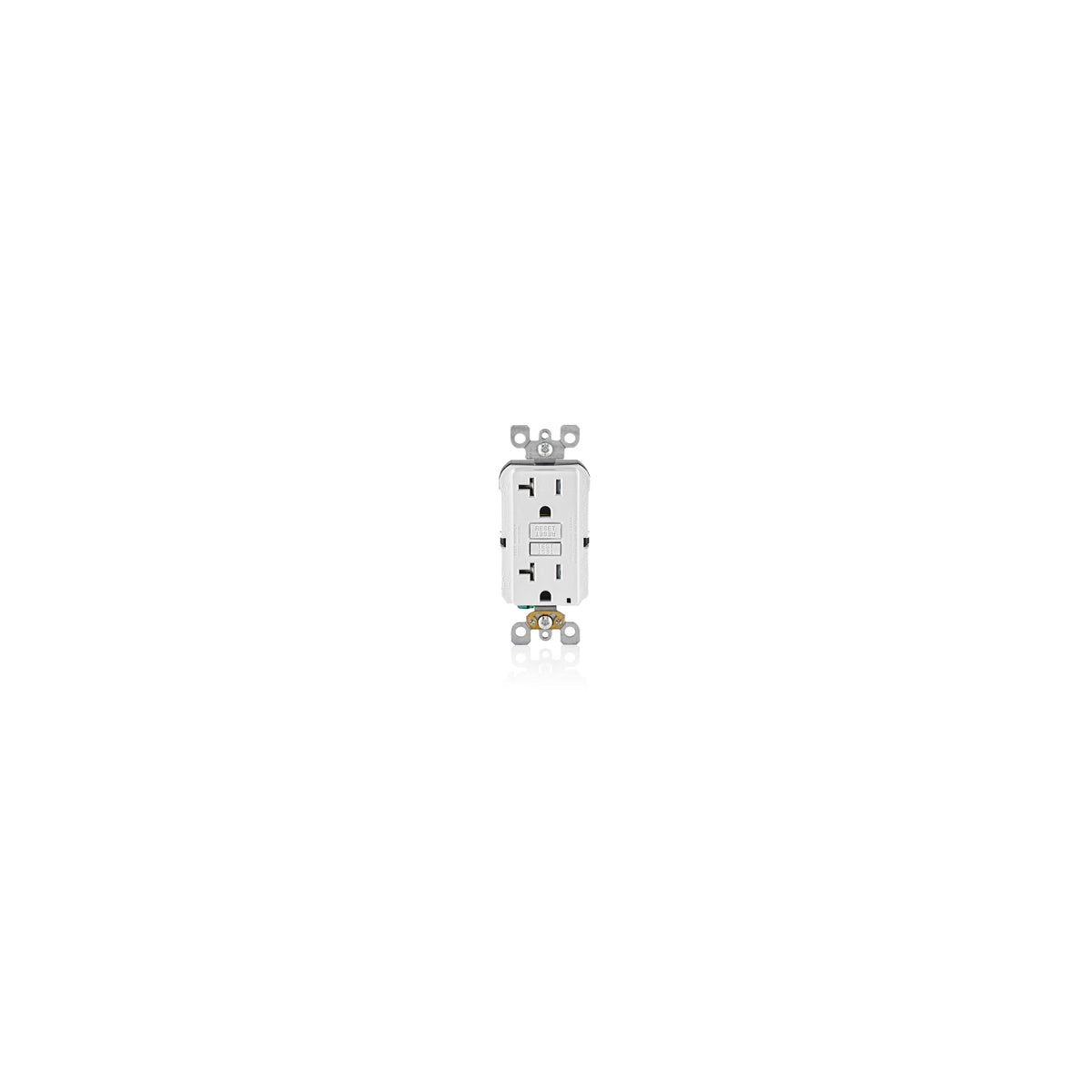

20 Amp, 125 Volt Receptacle, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro Slim GFCI, Monochromatic, back and side wired, wallplate/faceplate sold separately, self grounding clip included - White
SKU: #31274
Part: #GFTR2-KW
UPC: 078477708217
20 Amp, 125 Volt Receptacle, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro Slim GFCI, Monochromatic, back and side wired, wallplate/faceplate sold separately, self grounding clip included - White
SKU: #31274
Part: #GFTR2-KW
UPC: 078477708217
Description
20 Amp, 125 Volt Receptacle SmartlockPro Slim GFCI
This Leviton 20 Amp, 125 Volt SmartlockPro Slim GFCI receptacle provides ground fault circuit interruption with tamper-resistant, self-test functionality, designed for residential and commercial electrical applications. Ideal for use in kitchens, bathrooms, garages, basements, laundry rooms, and other wet or damp locations, it offers reliable protection by continuously monitoring and automatically testing itself to ensure power availability and safety. Suitable for electrical distributors and lighting solutions providers seeking advanced wire and cable protection devices, this device supports back and side wiring for flexible installation and includes a self-grounding clip.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: GFTR2-KW
- Amperage: 20 amperes
- Voltage Rating: 125 volts
- NEMA Configuration: 5-20R
- Grade: Residential/Commercial Specification
- Body Material: Polycarbonate
- Face Material: Thermoplastic
- Color: White
- Grounding: Self-Grounding
- Dielectric Strength: 1250 volts
- Horsepower Rating: 1 horse power
- Number of Poles: 2
- Flammability Class: Rated V-2 Per UL 94
- Operating Temperature: -35°C
- Product Weight: 0.327 lbs
- UPC: 078477708217
Features
- Self-Test functionality with automatic internal testing to ensure continuous ground fault protection
- Tamper-Resistant shutters meet NEC® 406.12 requirements by blocking access unless a two- or three-prong plug is inserted
- Leviton patented reset lockout prevents reset if the GFCI is damaged or miswired
- Red and green LED status indicator provides visual feedback on power and protection status, including correct wiring
- Slim profile with only 1.026" protrusion into the wallbox for easier installation and a sleek finish
- Back and side wire terminals with high torque tolerance prevent wire pullout and allow flexible wiring options
- Silver alloy contacts and impact-resistant thermoplastic cover and body for durability
- Compatible with all Decora® devices and wallplates (sold separately)
- Complies with latest UL and CSA standards including UL 943 Class A and UL 498, CSA C22.2 standards, and meets Federal Specification W-C-596G
- Limited two-year product warranty
