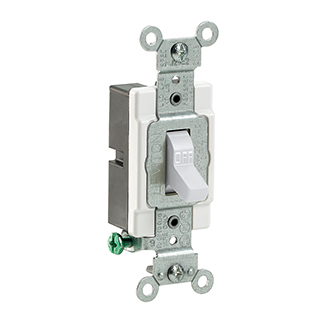

The 20 Amp 120/277V Toggle Single-Pole AC Quiet Switch provides dependable electrical switching control for specification-grade and similar applications. It features quiet operation and robust design for reliable performance in offices, retail spaces, residential, and institutional settings for controlling light fixtures and other electrical devices.

• Rating: 20 amperes at dual voltage 120/277 volt capacity
• Design features: Side-wired terminals for secure connections and easy disconnect
• Performance: AC quiet operation reduces switching noise when controlling light circuits
• Installation options: Includes grounding capability for single-way throw applications
• Esthetics: Clean white finish for professional appearance

Features

• Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.

Color Variations

• Brown

Specifications

• Country of Origin: United States
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Warranty: 10-Year Limited

Material Specifications

• Actuator Material: Thermoplastic
• Base Material: PBT
• Body Material: Thermoplastic
• Color: White
• Contacts: Silver-Cadmium .031 Thick
• Cover Material: Nylon
• Strap Material: Steel
• Terminal Screws: Steel 8-32
• Toggle: Polycarbonate

Product Features

• Device Type: Toggle Switch
• Function: Single-Pole
• Grade: Commercial Specification Grade
• Warranty: 10-Year Limited

Electrical Specifications

• Amperage: 20 A
• Dielectric Voltage: Withstands 1500V for 1 minute
• Max. Amperage: 16 Amp
• Temperature Rise: Maximum 30 degrees C rise
• Voltage: 120/277 VAC

Environmental Specifications

• Flammability: Rated V-2 per UL94
• Operating Temperature: -40°C to 65°C

AC Horsepower Ratings

• HP Rating: 1HP-120V 2HP-240V-277V

Mechanical Specifications

• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
