Features

• Decora® brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.

Color Variations

• Black

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20

Material Specifications

• Actuator Material: Thermoplastic
• Body Material: Thermoplastic Polyester
• Color: Gray
• Ground Clips: Brass
• Grounding Screw: Plated Steel
• Strap Material: Steel
• Terminal Screws: Brass

Electrical Specifications

• Amperage: 20 A
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 50,000 cycles minimum
• Grounding: Self-Grounding
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Voltage: 120/277 VAC

Product Features

• Brand: Decora Plus

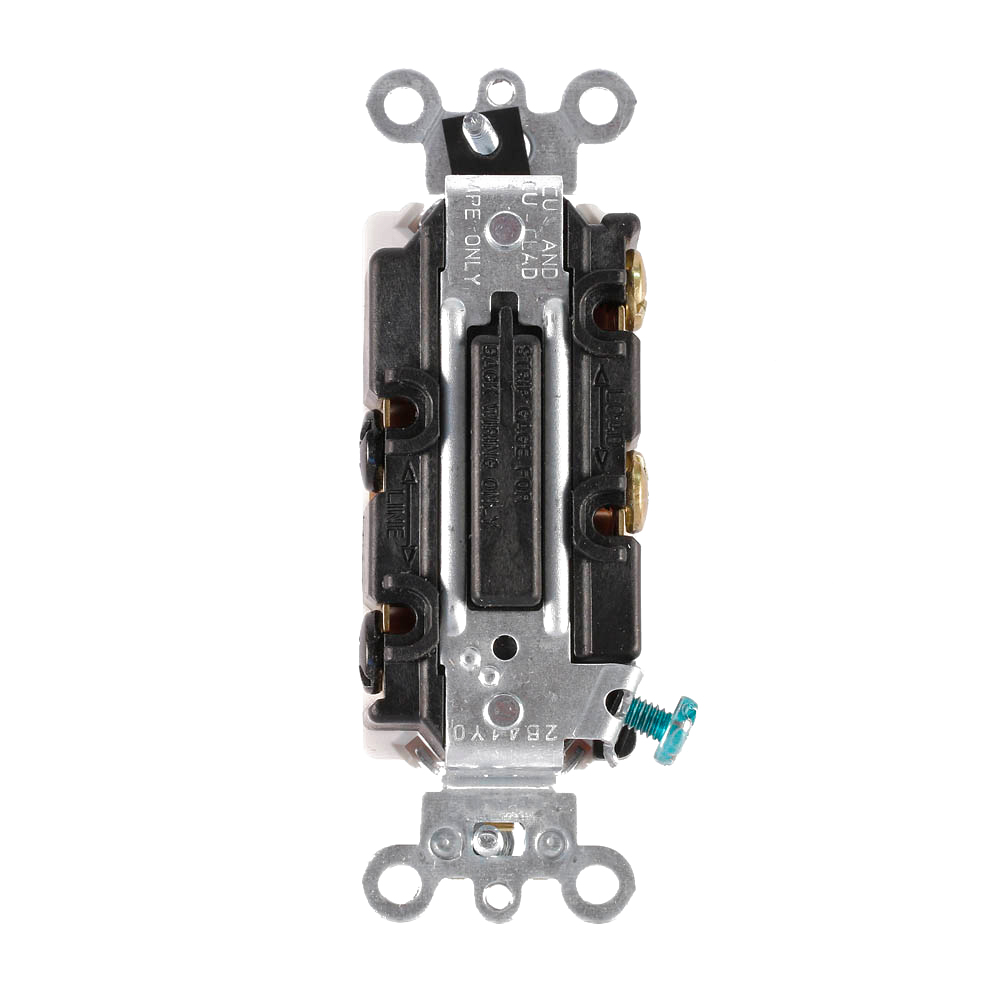

• Device Type: Rocker Switch
• Function: Double-Pole
• Grade: Commercial Specification Grade

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 65°C

AC Horsepower Ratings

• HP Rating: 1HP-120V 2HP-240V

Mechanical Specifications

• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back or Side Wire

Warranty

• Warranty: 10-Year Limited
