2" Zinc Die Cast Compression Type Connector
SKU: #178545
Part: #656
UPC: 751338166400
2" Zinc Die Cast Compression Type Connector
SKU: #178545
Part: #656
UPC: 751338166400
Next day delivery
Description

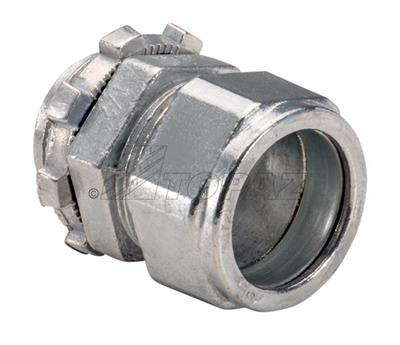

2" Zinc Die Cast Compression Type Connector – EMT Connector
The 2" Zinc Die Cast Compression Type Connector is designed for securely bonding EMT thin wall conduits to electrical boxes or enclosures in dry locations. Manufactured by Southwire, this connector features a compression type assembly that provides a concrete-tight connection, ensuring reliable performance for electrical distributors and lighting solutions providers. Constructed from zinc die cast material, it offers natural corrosion resistance and complies with NEMA/ANSI FB-1 standards, making it suitable for wire and cable installations and switchgear supply applications.
Specifications
- Material: Die Cast Zinc
- Connection: Threaded x Compression
- Insulation: Bare
- Product Weight: 0.7200 lbs
- Manufacturer: Southwire
- Manufacturer Part #: 656
- Size: 2"
- UL Listing: E18472 (1/2"–2")
- Dimensions (inches): A - 2.01, B - 2.01, C - 0.68
Features
- Compression type connector for secure EMT conduit connections
- Concrete-tight assembly to prevent moisture ingress
- Zinc die cast construction for corrosion resistance
- Assembled with a die cast locknut
- Available in sizes ranging from 1/2" to 4"
- NEMA/ANSI FB-1 compliant
- UL listed for safety and reliability
