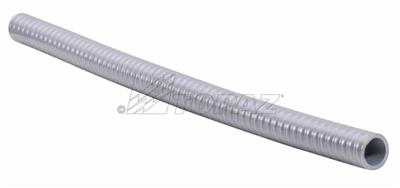

2" Top Flex 1 Tubing Flexible Non-Metallic Liquidtight Conduit

The 2" Top Flex 1 Tubing by Southwire is a UL Type B flexible non-metallic liquidtight conduit designed for electrical distributors and switchgear suppliers requiring durable and corrosion-resistant conduit solutions. It is suitable for indoor and outdoor applications including hazardous locations, providing reliable protection for wire and cable installations in demanding environments.

Specifications

• Manufacturer Part #: HF12
• Product Weight: 34.0000 lbs
• Size: 2"
• Outside Diameter: 2.34" – 2.375"
• Inside Diameter: 2.02" – 2.045"
• Wall Thickness: 0.33"
• Unit Carton Length: 50'
• Ship Case Weight: 30 lbs
• UPC: 751338300606

Features

• Integral rigid and flexible PVC construction
• Resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments
• UL Type B flexible non-metallic liquidtight conduit
• Smooth inside surface for easier wire pulling without damaging conductors
• Suitable for direct burial and poured concrete applications
• Lightweight and lower installed cost with quick installation using utility knife or PVC cutter
• UV rated and rated for 80° C operation
• Suitable for use with Top-Flex nylon connectors (straight or right angle) and Topaz die cast connectors
• Approved for use in hazardous locations per NEC Class 1, Div. 2; Class 2, Div. 1 and 2; Class 3, Div. 1 and 2

Downloads & Links

• Spec Sheet
