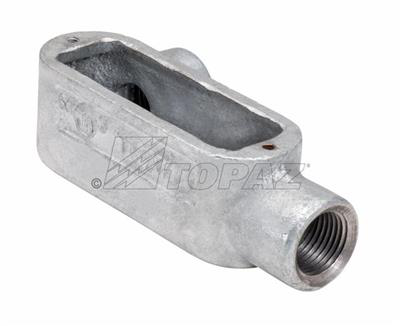

2" Threaded LL Type Rigid Conduit Bodies - Hot Dip Galvanized Electrical Conduit Solutions

This 2" Threaded LL Type Rigid Conduit Body by Southwire is designed for use in electrical distribution systems, providing access for conductor pulling, splicing, and maintenance. It is suitable for applications such as bridges, subways, railways, and branch conduit runs, enabling 90-degree bends and conduit section connections. Ideal for both interior and exterior projects, this conduit body supports wire and cable installations in demanding environments.

Specifications

• Material: Malleable Iron
• Finish: Hot Dip Galvanized
• Hub Size: 2"
• Form: LL
• Dimensions: Length 10.53 in, Height 3.52 in, Width 4.15 in
• Mounting: Wall Mount
• Product Weight: 6.05 lbs
• Manufacturer: Southwire
• Manufacturer Part #: LL6MHDG

Features

• Hot dip galvanized finish provides superior protection against severe environmental factors
• Compatible with all Form 5 and Form 35 series conduit bodies and covers
• Enables taps for branch conduit runs and acts as pull outlets for conductor installation
• Supports 90-degree bends in conduit runs

Downloads & Links

• Spec Sheet
