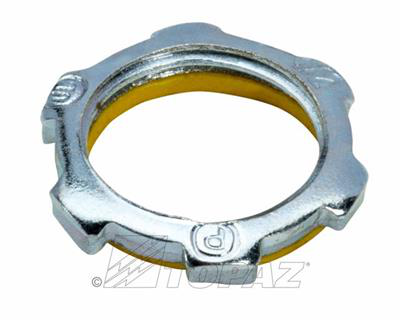

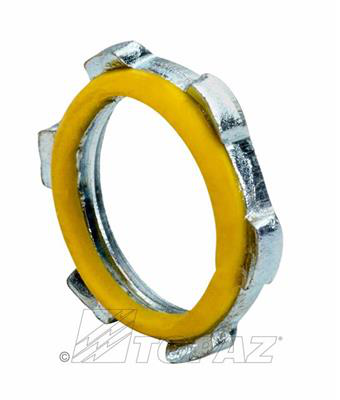

2" Sealing Locknuts – Electrical Conduit Fittings

2" Sealing Locknuts are designed to securely affix conduits or connectors to electrical junction boxes or metal enclosures, providing moisture-proof protection in wet locations. These locknuts are ideal for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable conduit fittings for indoor or outdoor applications.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: 716
• Material of Construction: Steel
• Finish: Zinc Plated
• Height: 0.32 IN
• Product Weight: 0.0940 lbs
• Size: 2"
• Threads Per Inch: 11-1/2
• Thread Pitch Diameter: 2.307 - 2.317 inches

Features

• Zinc plated steel construction offers natural corrosion resistance
• PVC molded gasket ensures a watertight seal for moisture-proof protection
• UL listed to UL Standard 514B
• Suitable for securing rigid and IMC conduit or threaded fittings to steel outlet boxes or metal enclosures
• Approved to Federal Specifications W-F-406E and W-F-406D, and NEMA FB 1-2014 standards
• Applicable for both indoor and outdoor electrical installations

Downloads & Links

• Spec Sheet
