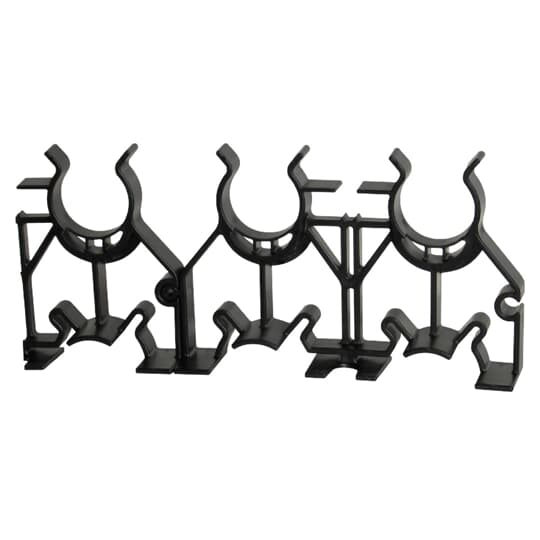

2 INCH X 2 INCH INTERMEDIATE SPACER - Snap-Loc Spacer

The Carlon 2 Inch x 2 Inch Snap-Loc Styrene Intermediate Spacer is designed for use in electrical conduit installations, providing stable and consistent separation between conduits. This non-metallic spacer is suitable for applications involving wire and cable management, particularly in concrete encasement and direct burial environments. It is a reliable component for electrical distributors and switchgear suppliers looking for durable and easy-to-assemble conduit spacing solutions.

Specifications

• Product Name: 2 INCH X 2 INCH INTERMEDIATE SPACER
• Manufacturer: Carlon
• Manufacturer Part Number: S289JJN
• Material: Non-Metallic (Styrene)
• Size: 2 x 2 inches
• Weight: 19.0 lbs
• Package Quantity: 100 units per carton
• Dimensions (A x C x Diameter): 4.38 in x 4.62 in x 2.50 in
• Country of Origin: United States
• EAN: 5415022248890
• UPC: 034481004462

Features

• Side dovetail rail-and-groove design allows side-by-side interchangeability of conduit spacer sizes while maintaining horizontal stability.
• Locking key ways eliminate the need for costly top spacers by securing the top section of conduit with a beaded strap.
• Specifically designed for use with nonmetallic duct with maximum outer dimensions per NEMA TC-2, TC-6, TC-8, TC-10, and ASTM F512 standards.
• Innovative vertical and horizontal interlocking design with tapered joining slots for easy job site assembly.
