2-Gang, Rectangular Cast Iron Box, Deep, Fully Adjustable, Brass Top
SKU: #137884
Part: #B4233
UPC: 783585102603
2-Gang, Rectangular Cast Iron Box, Deep, Fully Adjustable, Brass Top
SKU: #137884
Part: #B4233
UPC: 783585102603
Next day delivery
Description

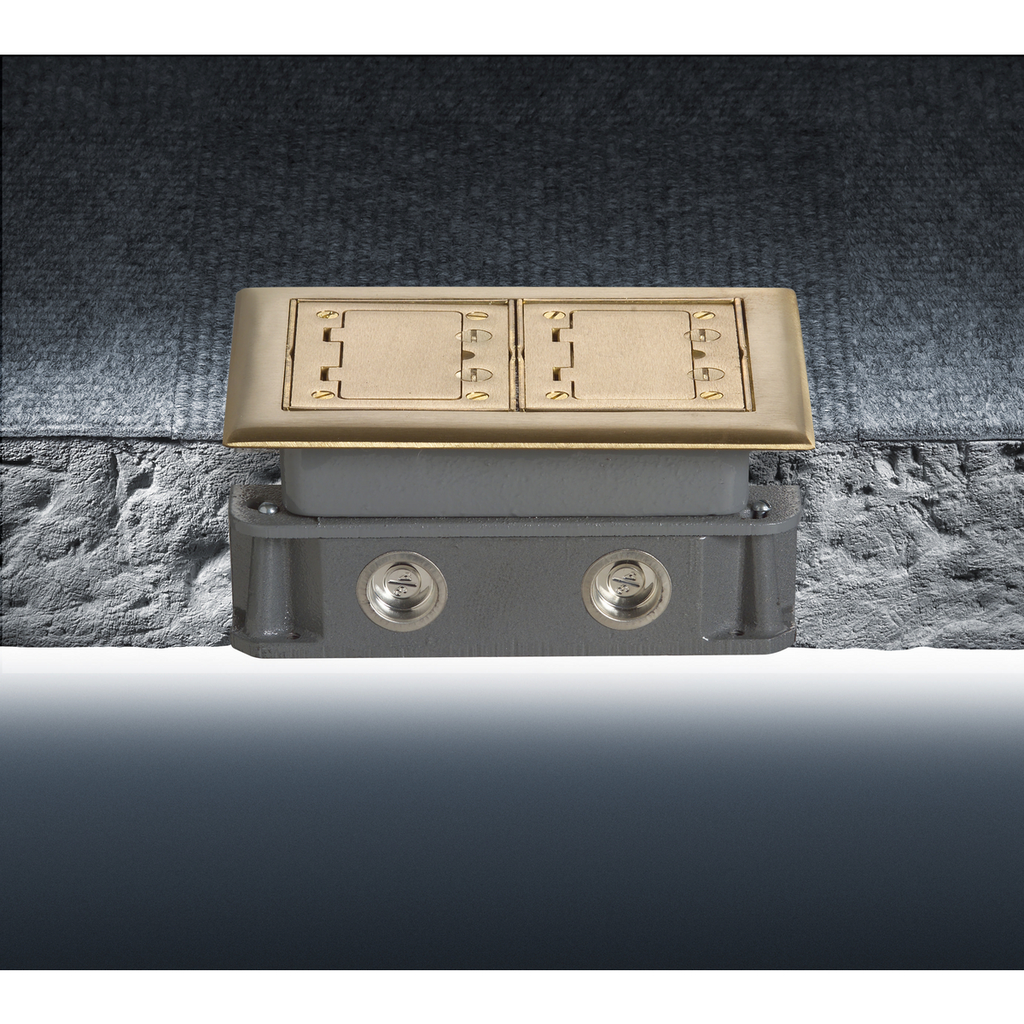

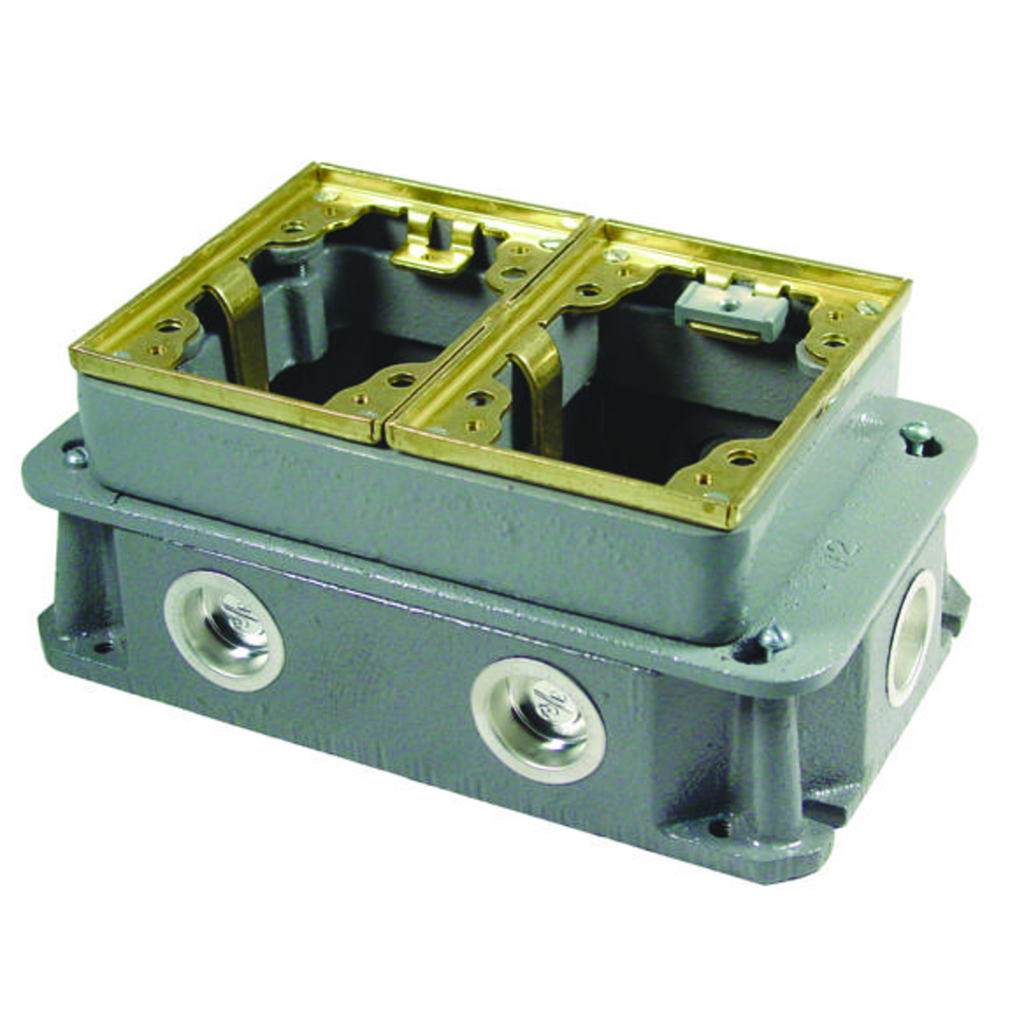

2-Gang Rectangular Cast Iron Box with Brass Top for In-Floor Delivery Systems
This 2-gang, deep rectangular cast iron box is designed for multi-service in-floor delivery systems, providing a durable and adjustable solution for electrical distributors and lighting solutions providers. It features a brass top with a brass flange finish and is suitable for installation by casting into concrete. The box allows cable entry from the top and includes oversized threaded conduit access holes to accommodate low voltage wiring, making it ideal for wire and cable management in commercial and industrial applications.
Specifications
- Material: Cast Iron
- Number of Gangs: 2
- Dimensions: 4.84 in (Length) x 8.06 in (Width) x 3.38 in (Height)
- Cubic Capacity: 36.5 Cubic Inches per Gang
- Mounting Method: Cast Into Concrete
- Cable Entry: From Top
- Knockouts: 6) 3/4"
- Finish: Brass
- Color: Brass Flange
- Application: Multi Service In-Floor Delivery Systems
- Industry Standards: UL/CSA, UL514
- RoHS Compliance Status: CM
- UPC: 783585102603
- Country of Origin: United States
- Product Weight: 8.85 lbs
Features
- Corrosion resistant construction for on-grade applications
- Leveling feet provide before-pour adjustability for precise installation
- Oversized threaded conduit access holes designed for low voltage wiring
- Fully adjustable brass top for secure and flexible mounting
- Manufactured in the USA by Hubbell Wiring Device-Kellems
