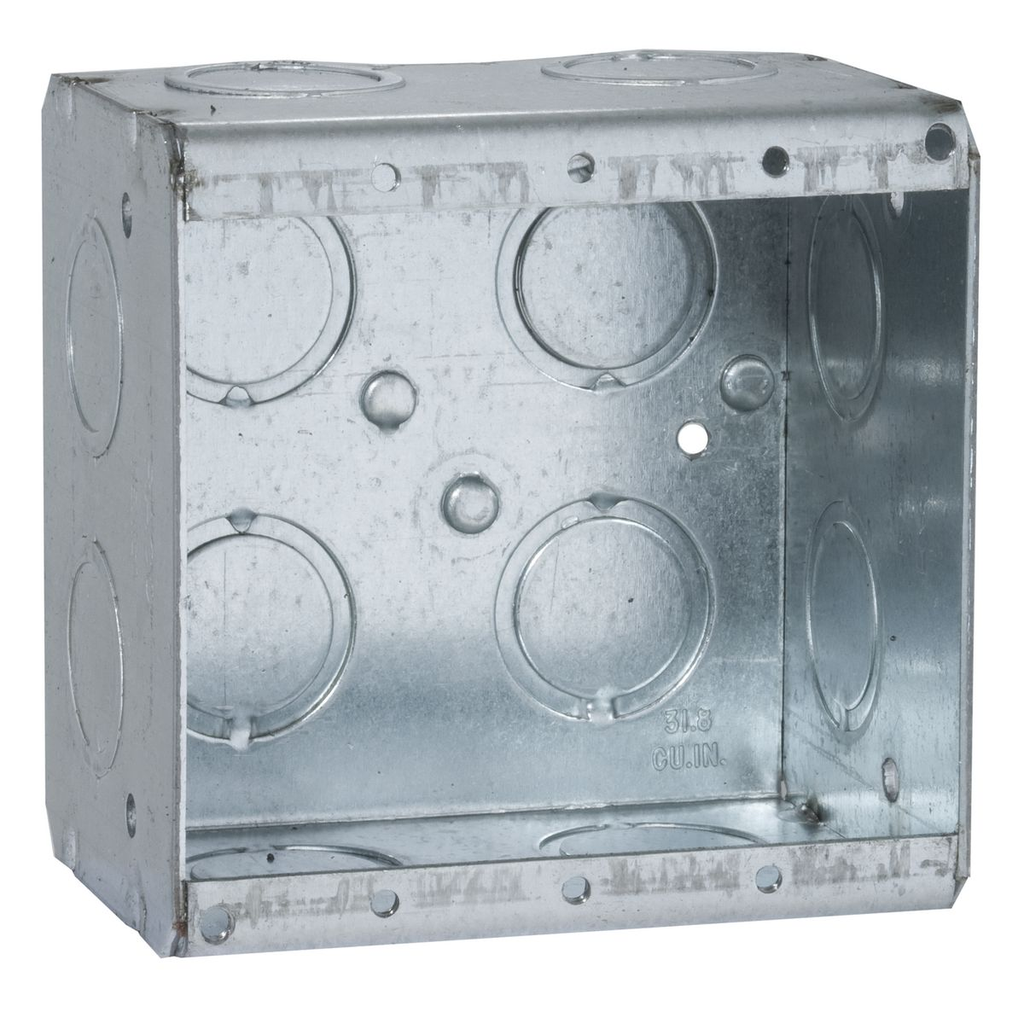

Features

• Rugged welded design does not fall apart during construction.
• Available from one to six gang configurations in both 2-1/2" and 3-1/2" depths.
• Rectangular shape fits square cuts in block.
• Large volume design allows for additional work room inside the box.
• Standard 1/2" and 3/4" concentric knockouts.
• Device ears inside the box prevent mortar from getting in the device holes.
• Steel voltage partition #971 fits all 2-1/2" or 3-1/2" depths.
• Standard wall plates can be used.
• Device ears are formed inside the box
• Rectangular shape neatly fits square cuts in concrete block, 3-3/4 in. x 3-25/32 in
• 31.8 cu. in. capacity
• UL listed

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Contact Manufacturer
• Depth: 2.5 in
• Width: 3.781 in
• Each - Width: 3.781 in
• Height: 3.75 in
• Product Type: Steel Boxes and Covers
• Color: Gray
• Cubic Capacity: 31.8 cu.in
• Knockouts: 1/2 - 3/4 in Concentric
• Standard: UL Listed
• Type: Box
• Bracket Type: No Bracket
• Weight: 0.922 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: MSNBX 2G 2-1/2DP 1/2&3/4CONC KO
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 25 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D017D0172
• Drawn or Welded: Welded
• Gangable: No
• Wiring System: Conduit
• Material: Steel
• Number of Gang(s): 2-Gang
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 10.875x13.75x8.25 (in)
• Box Type: Wall Box
• Carton - Gross Weight per Pack: 23.05 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169006917
• Carton - Total Units: 25 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169006916
• Pallet - Number of Sub Packs: 65
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169006912
• Pallet - Total Units: 1625 EA
• Pallet Height: 45.625 in
• Pallet Length: 42.000 in
• Pallet Weight: 1543.250 lb.
• Pallet Width: 48.000 in
• Standard Package Quantity: 100

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Contact Manufacturer
