2 AWG Press-On Lug
SKU: #261398
Part: #ULT-7-Z
UPC: 783669930818
2 AWG Press-On Lug
SKU: #261398
Part: #ULT-7-Z
UPC: 783669930818
Next day delivery
Description

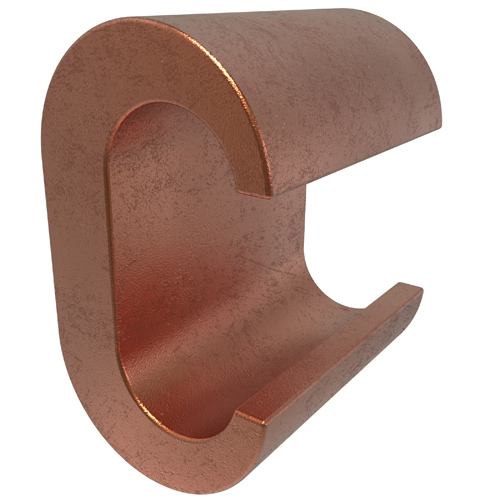

2 AWG Press-On Lug Copper Electrical Connector
The 2 AWG Press-On Lug is a copper wire connector designed for secure and efficient electrical connections in wire and cable installations. Suitable for use by electrical distributors and switchgear suppliers, this connector supports solid copper conductors and is rated for direct burial in earth or concrete, making it appropriate for outdoor and underground electrical applications.
Specifications
- Material: Copper
- Color: Copper
- Conductor Type: Solid
- Conductor Material: Copper
- Length: 1.047 in
- Width: 0.614 in
- Height: 0.826 in
- Product Weight: 0.08527 lbs
- Direct Burial: Yes
- Manufacturer: ILSCO
- Manufacturer Part #: ULT-7-Z
- Carton Quantity: 100
Features
- Bright dip plating for enhanced corrosion resistance
- Compatible with ILSCO or Burndy Type U crimping dies
- Designed for use with crimping tools applying at least 12-tons of pressure
- Suitable for grounding and bonding equipment applications
- Compact dimensions facilitate installation in confined spaces
