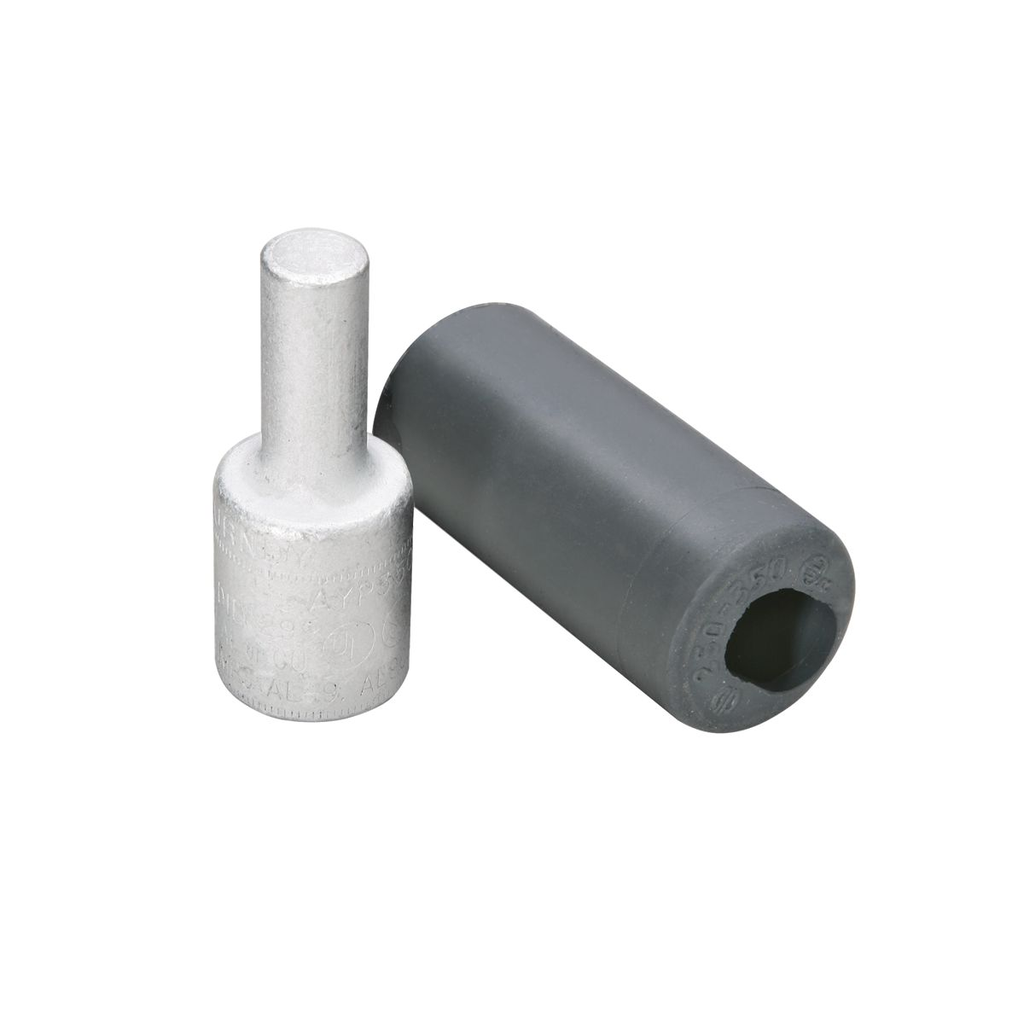

2 AWG Aluminum Termination Pin Adapter – Electrical Wire Termination

This 2 AWG Aluminum Compression Pin Adapter is designed for reliable wire termination applications. It serves as a critical component in electrical distribution and lighting solutions, facilitating secure connections between aluminum and copper conductors. The product is suitable for use by electrical distributors and switchgear suppliers requiring durable inline pin connectors with high conductivity and corrosion resistance.

Specifications

• Material: Aluminum
• Conductor Material: Aluminum / Copper
• Conductor Type: CODE/FLEX
• Connection Type: Inline Pin
• Application: Wire Termination
• Pin Diameter: 0.23 inch
• Pin Length: 0.68 inch
• Finish: Tin-Plated
• Insulation: Yes
• Insulation Type: EPDM Rubber
• Color Coding: Tan
• Width: 0.6 in
• Product Weight: 0.0500 lb
• Voltage Rating: 600 Volt up to 90°C (per UL 486A-486B / CSA C22.2 No.65)
• Temperature Rating: Up to 90°C
• Country of Origin: United States
• Made in USA: Yes

Features

• Tin-plated aluminum construction ensures corrosion resistance and compatibility with aluminum and copper conductors.
• Solid pin design eliminates torque-related installation issues and supports full ampacity of the conductor.
• Pre-filled with PENETROX™ A13 oxide inhibitor to prevent corrosion and improve connection reliability.
• Color-coded end cap matches die color code to prevent installation errors and protect the barrel from contaminants.
• Inline pin design suitable for standard wire termination applications with available offset pin options for space-constrained installations.
• UL Listed and CSA Certified when installed with BURNDY engineered system and approved crimp tools.
• EPDM rubber insulation cover provides electrical insulation and environmental protection.
