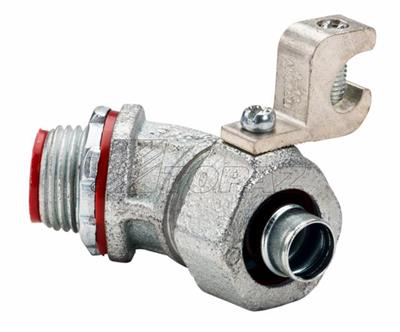

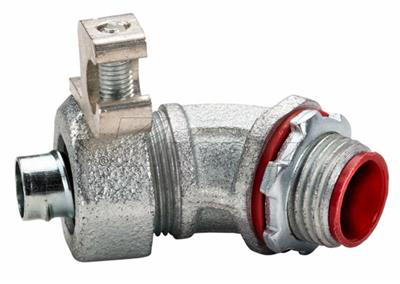

2" 45° Liquidtight Connector with Grounding Lug
SKU: #172144
Part: #236SGR
UPC: 751338868755
2" 45° Liquidtight Connector with Grounding Lug
SKU: #172144
Part: #236SGR
UPC: 751338868755
Next day delivery
Description
2" 45° Liquidtight Connector with Grounding Lug – Liquidtight Connector
This 2" 45° liquidtight connector with grounding lug is designed for secure connections of liquidtight conduit and termination of external bonding conductors running parallel to the conduit. It is suitable for electrical distributors and switchgear suppliers requiring durable, code-compliant conduit fittings for hazardous locations and grounding applications.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: 236SGR
- Conduit Size: 2"
- Lug Size: 14-4 AWG
- Weight: 1.85 lbs
- Material: Malleable iron with steel locknut and aluminum lug
- Finish: Zinc electroplated
- Dimensions (inches): A - 3.24, B - 3.38, C - 4.64
- UPC: 751338868755
Features
- Liquidtight, raintight, and oiltight design
- Lay-in grounding lug for reliable grounding connections
- Insulated throat protects conductors from abrasion damage
- Zinc electroplated finish for corrosion resistance and durability
- UL listed for use in hazardous locations under NEC 501-4(b), 502-4(a), (2)503-3(a)
