Features

• Plate for Use in SystemOne 2, 4 & 6-Gang Recessed Floorboxes

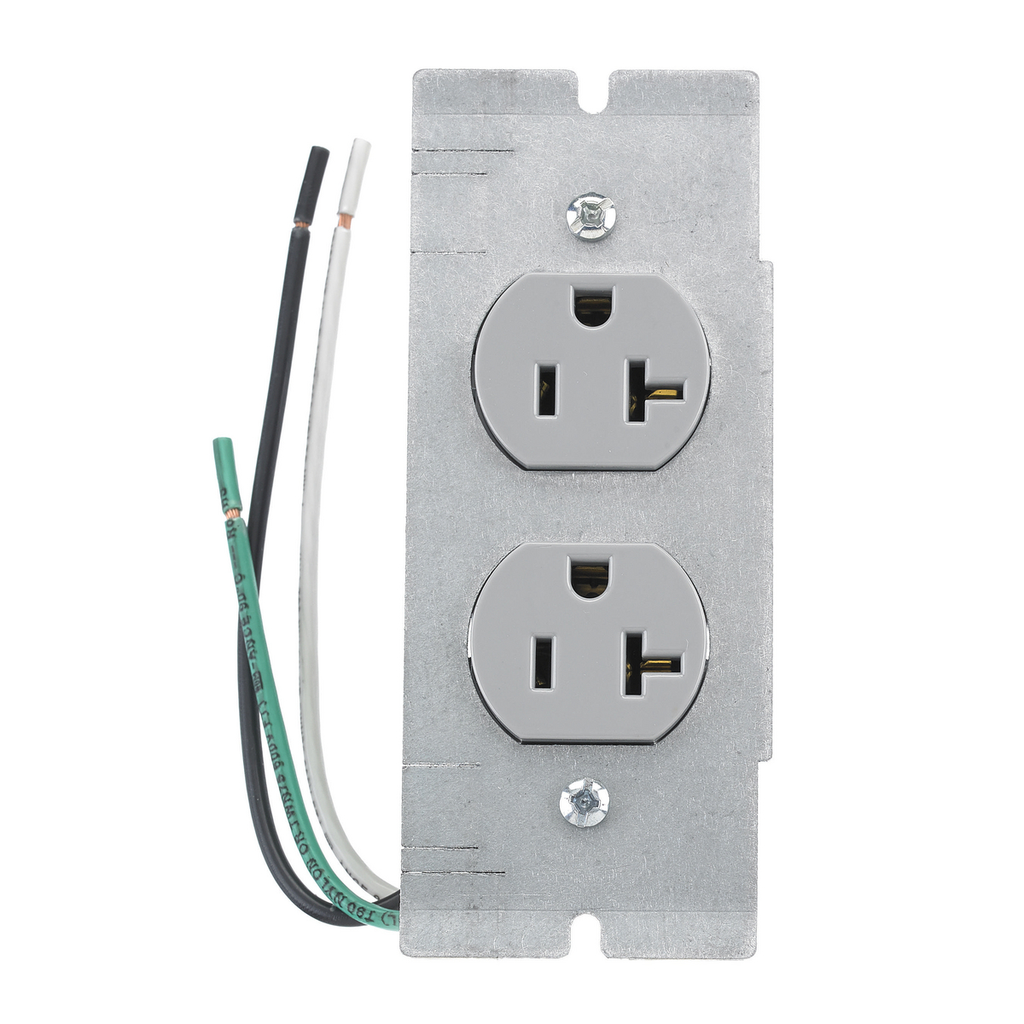

• Device Plate with Pre-wired NEMA 5-20 Duplex Receptacle
• 8" Stranded Wire Leads
• Single screw subplate mounting reduces installation time.
• CR20GRYP2 with Stranded Wire

Specifications

• Country of Origin: China
• Application - For Use On: Concrete; Raised Access; Wood
• Cover Shape: Rectangle; Round
• Width: 4.500 in
• Each - Width: 4.500 in
• Industry Standard(s): cULus
• Length Metric: 127.25 mm
• Mounting Method: Mounts to Box
• Size: 2-Gang;4-Gang;6-Gang
• Application: For Use in Recessed Floor Box
• Color: Steel Plate Gray Receptacle
• Length: 5.01 in
• Mounting: (1) Screw Mount
• Number of Outlet: 1-Duplex
• Special Features: CR20GRYP2 with Stranded Wire
• Standard: cULus
• Type: Plate With Devices
• WidthMetric: 51.82 mm
• Cover Type: Rectangle; Round
• Mounting Type: (1) Screw Mount
• Number Of Outlets: 1-Duplex
• Style: Floor Boxes;In Floor;Sub-Plates
• Description - Invoice: CR20GRYP2 W/ PLATE, 2/4/6G, STRANDED
• Freight Class Code: 06168002
• Harmonization Code: 8536698000
• Image Actual Or Representative: A
• MSDS Flag: No
• Construction: Stamped
• Material: Steel Plate, Composite Receptacle
• Series: Recessed - CFB Series
• Base Unit of Measure: EA
• BOX SIZE: 7.000x14.600x8.500 (in)
• Carton - SCC-14 Next Lower Level Sub Pack: 00783585459585
• Case Weight: 5.233 lb.

Certifications

• EU RoHS Indicator: Contact Manufacturer
