2-12 STR Main 4-14 Tap
SKU: #304090
Part: #GP-2WC
UPC: 662381003010
2-12 STR Main 4-14 Tap
SKU: #304090
Part: #GP-2WC
UPC: 662381003010
Description

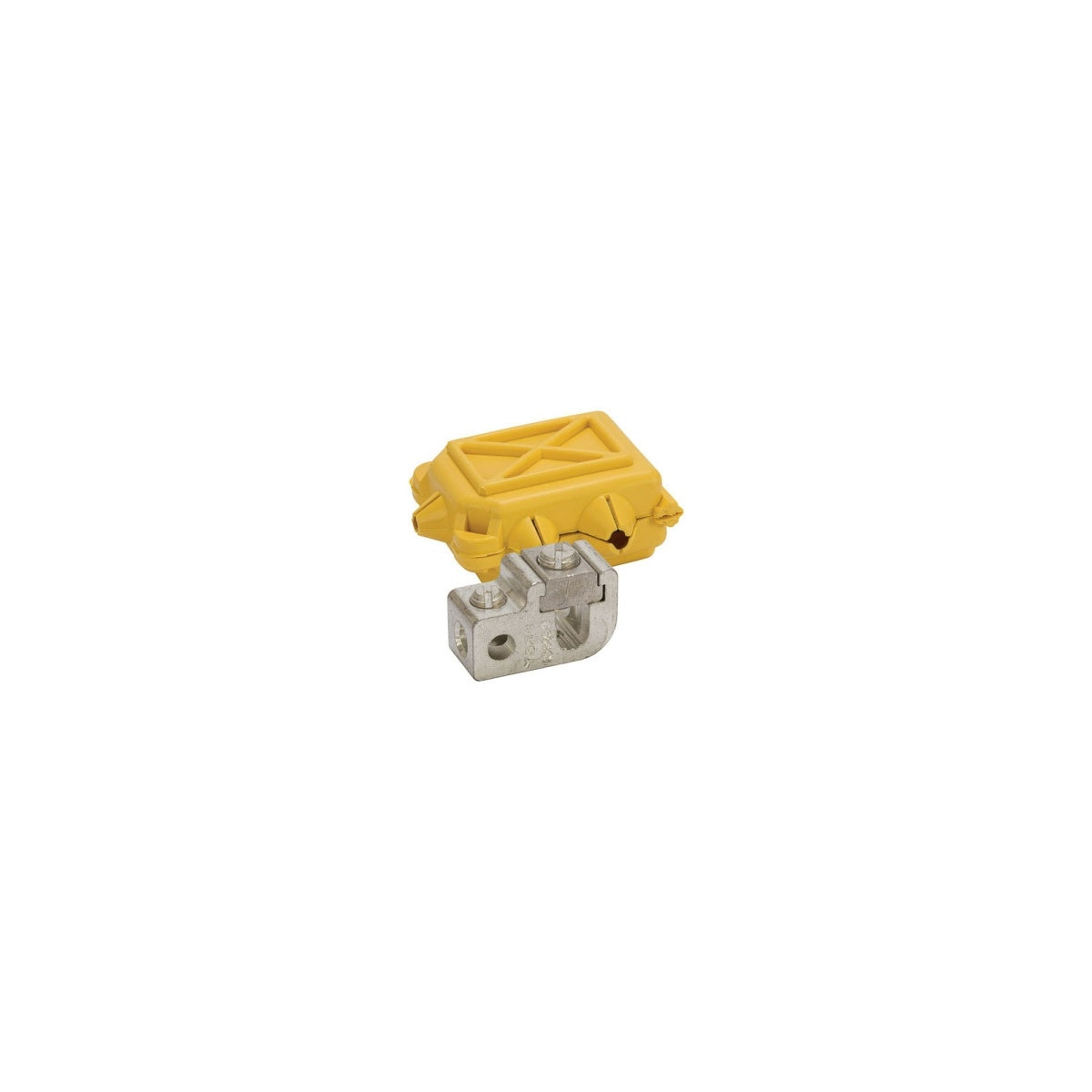

2-12 STR Main 4-14 Tap Parallel "T" Tap Connector with Cover
This 2 AWG Parallel "T" Tap Connector with Cover is designed for wire termination applications, enabling tapping off the main conductor without cutting due to its lay-in feature. It supports parallel or "T" tap configurations and is suitable for use with aluminum and copper wire types. This product is ideal for electrical distributors and lighting solutions providers requiring reliable wire and cable connectors with secure, insulated covers.
Specifications
- Material: Aluminum
- Finish: Electro-tin plated
- Color: Yellow Cover
- Wire Type: AL/CU
- Voltage Rating: 600V
- Temperature Rating: 90 degrees Celsius
- Number of Conductors: 2
- Number of Poles: 1
- Dimensions (L x W x H): 2.25 in x 1.37 in x 1.11 in
- Weight: 0.6 lbs
- Application: Wire Termination
- Country of Origin: United States
- Manufacturer: NSI Industries
- Manufacturer Part #: GP-2WC
Features
- Lay-in design allows tapping off main conductor without cutting
- Perpendicular tap supports parallel or "T" tap configuration
- Flexible, secure snap cover eliminates need for taping
- Electro-tin plating ensures low contact resistance
- UL Listed and CSA Certified for wire connectors
- Dual rated for aluminum and copper conductors
- Made in USA
