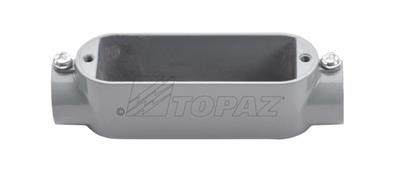

2-1/2" Set Screw C Type EMT Conduit Body
SKU: #184439
Part: #EC7
UPC: 751338204614
2-1/2" Set Screw C Type EMT Conduit Body
SKU: #184439
Part: #EC7
UPC: 751338204614
Total Price: $56.21 per each Sold in increments of 1 each
Next day delivery
Description
2-1/2" Set Screw C Type EMT Conduit Body – Electrical Distributor Lighting Solutions
The 2-1/2" Set Screw C Type EMT Conduit Body by Southwire provides access to conductors for pulling, splicing, and maintenance. It is designed for use in concrete installations, making it suitable for wire and cable routing in commercial and industrial electrical systems. This conduit body supports efficient conduit system management and is ideal for electrical distributors and switchgear suppliers requiring durable conduit components.
Specifications
- Manufacturer Part #: EC7
- Material: Die Cast Aluminum
- Mounting: Wall Mount
- Hub Size: 2-1/2"
- Dimensions (L x W x H): 13 in x 5.709 in x 4.063 in
- Product Weight: 3.95 lbs
- Form: C
- UPC: 751338204614
Features
- Set screw C type design
- Suitable for use in concrete
- Provides access to conductors for pulling, splicing, and maintenance
- Constructed with copper-free aluminum die cast for durability
- Equipped with steel screws
- Powder coat finish for corrosion resistance
