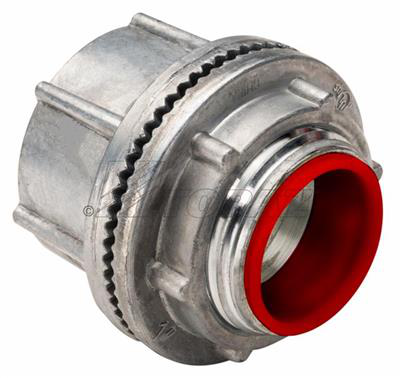

2-1/2" Rigid Watertight Hubs With Insulated Throat
SKU: #171827
Part: #207
UPC: 751338116108
2-1/2" Rigid Watertight Hubs With Insulated Throat
SKU: #171827
Part: #207
UPC: 751338116108
Total Price: $25.43 per each Sold in increments of 1 each
Description
2-1/2" Rigid Watertight Hubs With Insulated Throat – Watertight Conduit Fittings
These 2-1/2" rigid watertight hubs provide secure, corrosion-resistant connections for rigid or IMC conduits to standard knockouts in electrical enclosures. Designed for indoor or outdoor use, they prevent moisture, dust, and other particles from entering conduit systems. Ideal for electrical distributors and switchgear suppliers requiring reliable watertight fittings with insulated throats and threaded connections.
Specifications
- Material: Die Cast Zinc
- Connection: Threaded
- Insulation: Insulated Throat
- Application: Indoor or Outdoor Use
- NEMA Rating: 2, 3R, 4, 4X, 5, 12, 13
- Product Weight: 1.5 lbs
- Manufacturer: Southwire
- Manufacturer Part #: 207
Features
- Flame-retardant insulated throat
- Rain, oil, and dust tight construction
- Corrosion resistant zinc die cast housing
- Oversized locknut protects against vibration damage and promotes positive grounding
- UL listed and compliant with UL 514B, Fed. Spec W-F-406E/W-F-406D, and NEMA FB 1-2014 standards
