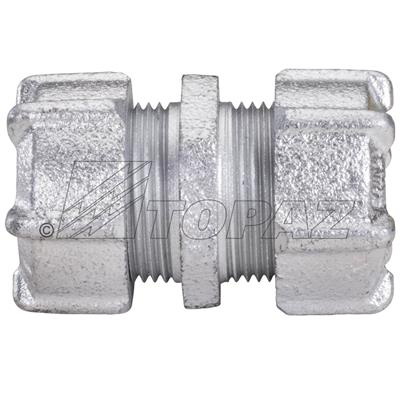

2-1/2" Raintight Rigid Compression Type Couplings – Raintight Conduit Couplings

The 2-1/2" Raintight Rigid Compression Type Couplings by Southwire are designed to join two lengths of unthreaded rigid or IMC conduit of equal size. Suitable for use with UL 6 and UL 6A rigid steel or aluminum conduit, these couplings provide a concrete-tight and raintight connection ideal for electrical distributors and lighting solutions requiring secure conduit joining. Their compression type, threadless design allows for labor-saving installation without disassembly.

Specifications

• Size: 2-1/2"
• Material: Malleable iron
• Finish: Zinc plated
• Weight: 14.2 lbs
• UL Listing: cULus listed, wet location rated
• Dimensions (inches): A - 4.38, B - 3.83

Features

• Raintight and concrete tight
• Compression type coupling
• Threadless design
• Compatible with UL 6 & UL 6A rigid conduit
• Suitable for steel or aluminum conduit
• EZ slip-on labor-saving design
• No disassembly required for installation

Downloads & Links

• Spec Sheet
