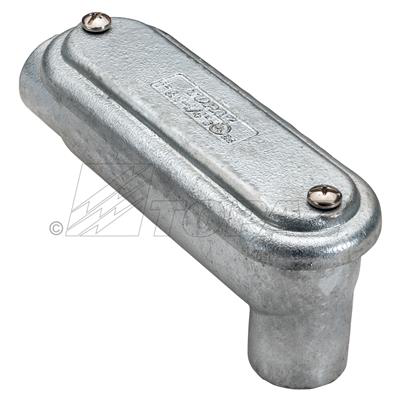

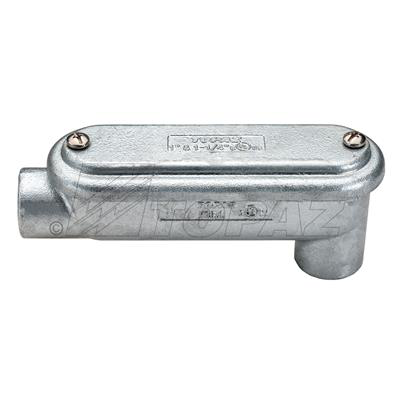

2-1/2" Mogul Conduit Body LB Type with Cover and Gasket
SKU: #190909
Part: #MLB7CGHDG
UPC: 751338009714
2-1/2" Mogul Conduit Body LB Type with Cover and Gasket
SKU: #190909
Part: #MLB7CGHDG
UPC: 751338009714
Next day delivery
Description
2-1/2" Mogul Conduit Body LB Type with Cover and Gasket – Electrical Conduit Accessories
This 2-1/2" LB Type Mogul Conduit Body with Cover and Gasket by Southwire is designed for use in electrical installations requiring durable conduit fittings. Constructed of high-quality malleable iron and finished with hot dip galvanizing, it provides robust protection in demanding industrial environments. The conduit body features built-in cable pulling rollers and smooth integral bushings that protect conductor insulation during wire pulls. It is suitable for pulling straight or 90° angle turns, making taps and splices, and serves as a pull outlet for stiff conductors. This product meets UL standards and is an essential component for electrical distributors and switchgear suppliers handling wire and cable installations.
Specifications
- Size: 2-1/2"
- Material: Malleable iron
- Finish: Hot dip galvanized
- Weight: 21.95 lbs
- Manufacturer Part #: MLB7CGHDG
- UPC: 751338009714
- UL Listed: UL 514A, UL 514D
Features
- Built-in cable pulling rollers for ease of wire installation
- Threaded NPT tapered hubs compatible with rigid and IMC conduit
- Smooth, rounded integral hub bushings protect conductor insulation
- Weatherproof cover with gasket and stainless steel screws
- Provides access to wiring for maintenance and future changes
- Suitable for pull outlets and large conductor splicing
- UL and CSA certified for wet locations
