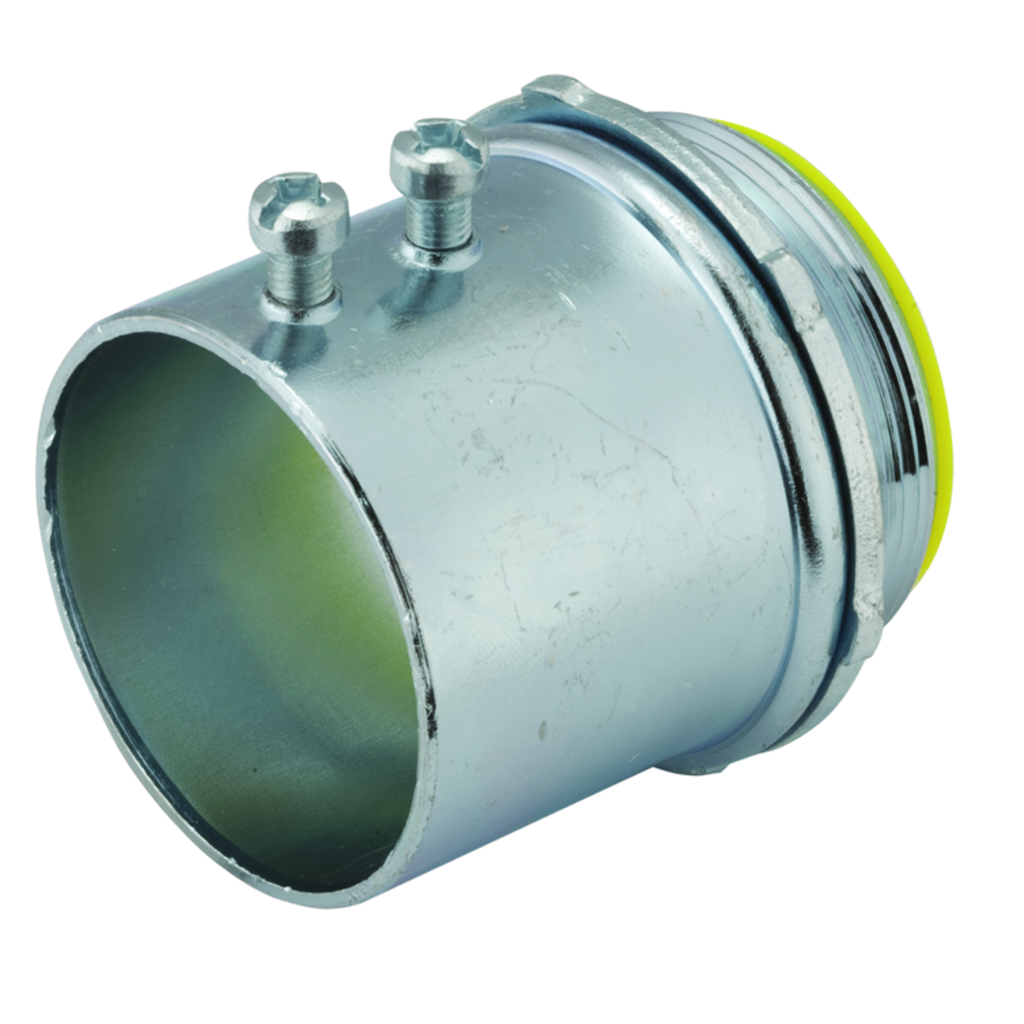

Features

• Steel construction ensures mechanical protection
• Zinc-electroplated for added corrosion protection
• Insulated
• Tri-head screws may be installed using slotted, Phillips, or Robertson head screwdriver
• UL Listed
• Available in trade sizes of 1/2 in. through 4 in.
• 2 set-screw

Specifications

• Country of Origin: India
• Buy American Compliant: Contact Manufacturer
• ChannelSightWidgetId: 705
• Dimensions: 2.875 in x 3.56 in x 3.75 in
• Width: 3.560 in
• Each - Width: 3.560 in
• Height: 3.75 in
• Industry Standard(s): UL 514B
• Insulation Type: Insulated
• Product Type: Commercial Fittings
• Length: 2.875 in
• Standard: UL 514B
• Trade Size: 2-1/2 in
• Connector Type: Set-Screw
• Weight: 1.402 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D04
• Description - Invoice: CONN RGD/EMT SET SCREW INS 2-1/2 IN STL
• Freight Class Code: 06202000
• Harmonization Code: 8547900030
• Image Actual Or Representative: R
• Lead Time: 91 wk
• MSDS Flag: Yes
• Order Multiple: 5 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D040D0400
• Fitting Type: Connectors
• Conduit Type: EMT
• Material: Steel
• Base Unit of Measure: EA
• BOX SIZE: 3.5x9.375x7.25 (in)
• Carton - Gross Weight per Pack: 7.011 lb.
• Carton - Number of Sub Packs: 5
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169021606
• Carton - Total Units: 5 EA
• Each - Pack Description: Each
• Item Package Type: Carton
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169021605
• Pallet - Number of Sub Packs: 200
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169021601
• Pallet - Total Units: 1000 EA
• Pallet Height: 32.375 in
• Pallet Length: 42.000 in
• Pallet Weight: 1447.138 lb.
• Pallet Width: 48.000 in

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Yes
