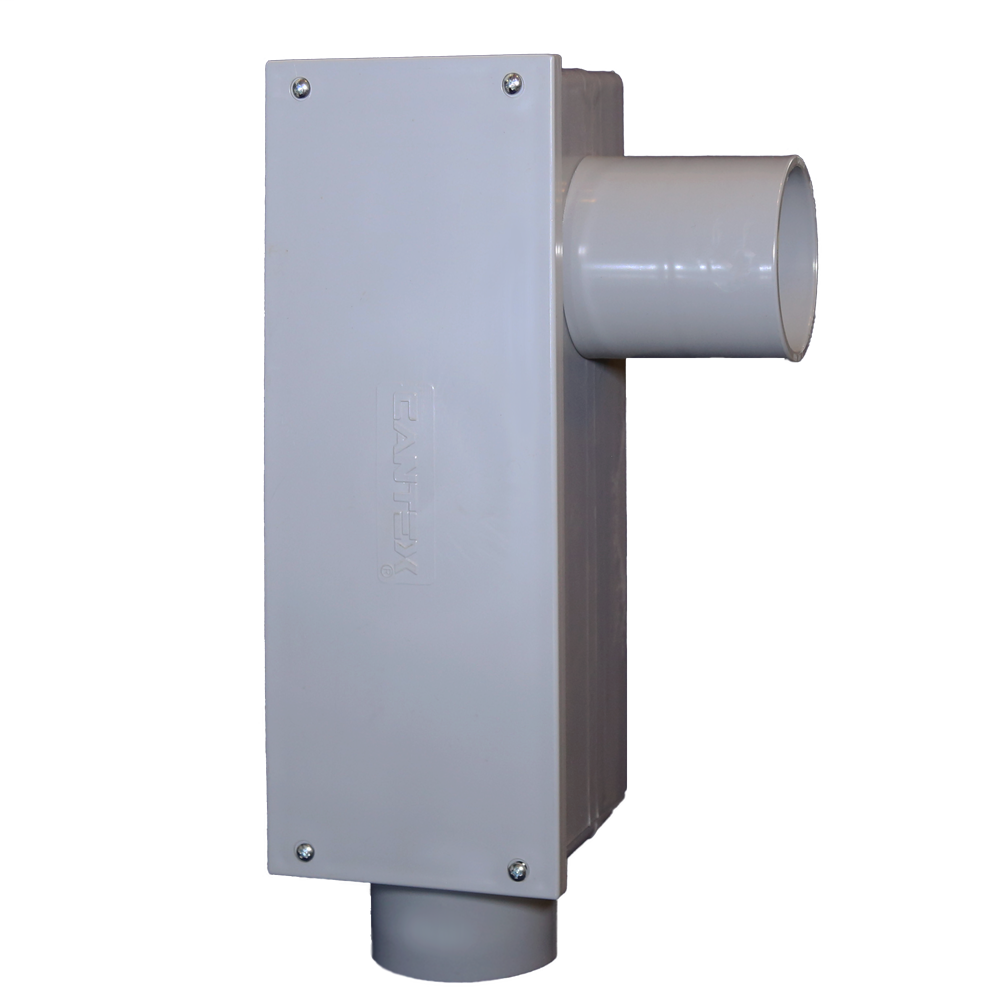

2-1/2 in. Conduit Body Type LL – Electrical Conduit Fitting

The CANTEX 2-1/2 in. Conduit Body Type LL provides pull, splice, and tap access for conductors in conduit systems, facilitating changes in direction. Designed for use in electrical distribution and wiring applications, this conduit body is suitable for electrical distributors, wire and cable installations, and lighting solutions requiring durable conduit fittings.

Specifications

• Manufacturer: Cantex
• Manufacturer Part #: 5133644
• Product Weight: 25.0840 lbs
• Size: 2-1/2 inch
• Carton Quantity: 5
• UPC: 088700021518
• Dimensions (Nominal, per manufacturer data sheet):
  • "A": 4 5/8"
  • "B": 4 5/8"
  • "C": 1' 2 15/16"
  • "D": 1' 3/4"
  • "E": 2 7/8"

Features

• Provides pull, splice, and tap access for conductors in conduit systems
• Enables a change in direction with a Type LL conduit body design
• Constructed from PVC material suitable for electrical wire and cable conduit applications
• Durable and stable under normal electrical installation conditions
• Complies with UL listings and standards (as indicated in technical drawings)
