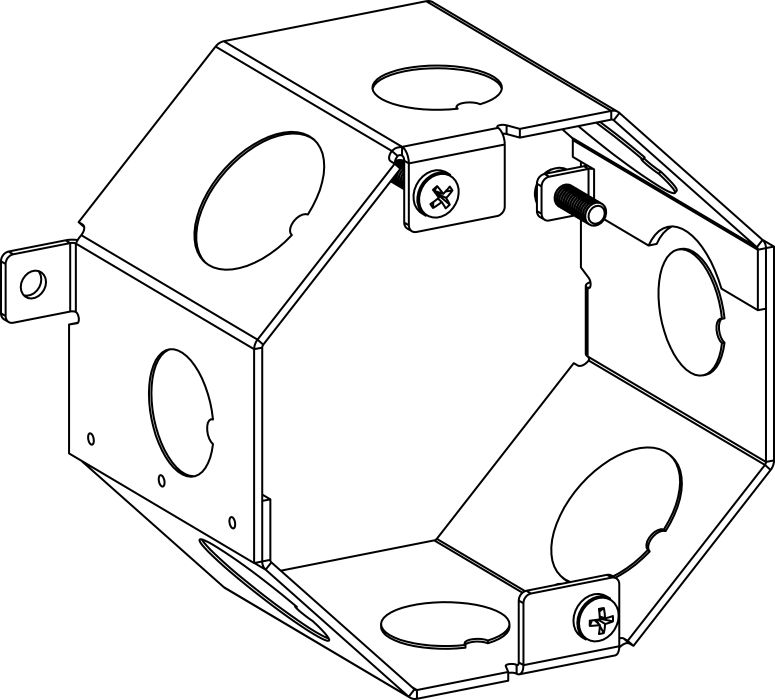

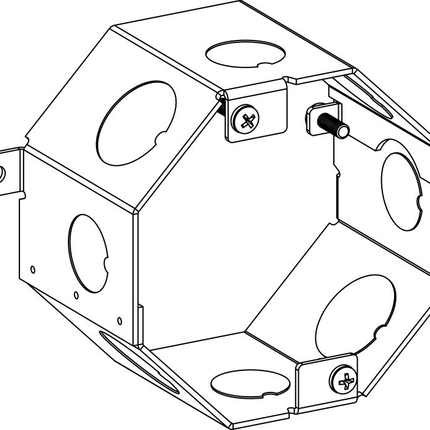

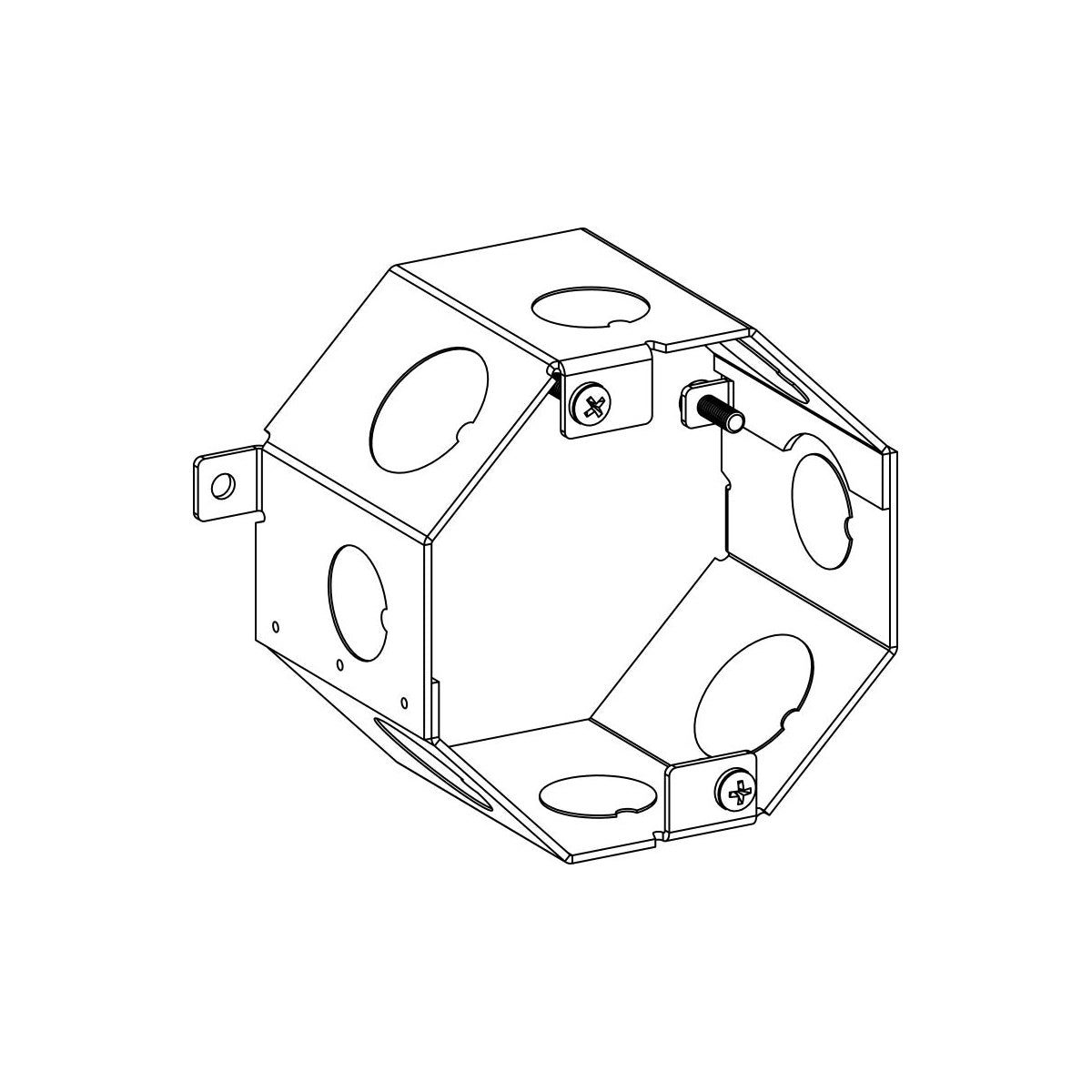

2-1/2" Deep, 4" Octagonal Concrete Box by Orbit Industries

Orbit Industries' 2-1/2" Deep, 4" Octagonal Concrete Box is designed for concrete construction applications, providing a durable and reliable enclosure for electrical wiring. This product is suitable for electrical distributors and lighting solutions providers requiring sturdy wire and cable management within concrete installations. Constructed from 16 gauge galvanized steel, it features multiple side knockouts and mounting tabs for straightforward installation.

Specifications

• Manufacturer: Orbit Industries
• Manufacturer Part #: 25CB
• Depth: 2-1/2"
• Diameter: 4"
• Knockouts: Sides 1, 3, 5, 7 - (1) 1/2"; Sides 2, 4, 6, 8 - (1) 3/4"
• Cubic Inches: 30.5
• Product Weight: 16.57 lbs
• UPC: 835243010819
• Certification: UL file E227970, conforms to UL514A

Features

• Constructed from 16 gauge galvanized steel for durability in concrete environments
• 1/2" and 3/4" side knockouts for flexible conduit entry
• Mounting tabs included for secure installation
• UL rated for fixture support of 50 lbs or less
