2-1/2" & 3-5/8" Depth Bracket to Stud Box Support
SKU: #193177
Part: #TZH23
UPC: 751338019072
2-1/2" & 3-5/8" Depth Bracket to Stud Box Support
SKU: #193177
Part: #TZH23
UPC: 751338019072
Next day delivery
Description
2-1/2" & 3-5/8" Depth Bracket to Stud Box Support – Electrical Box Support

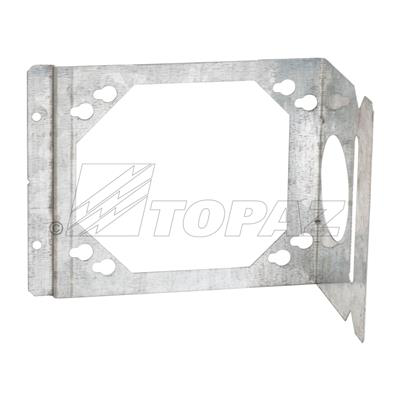

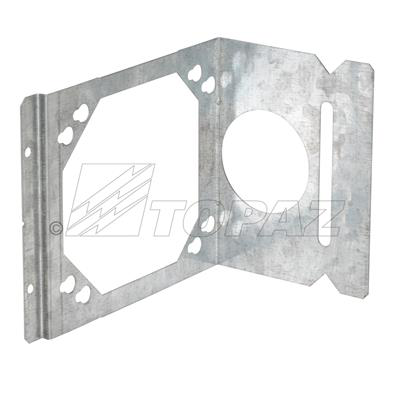

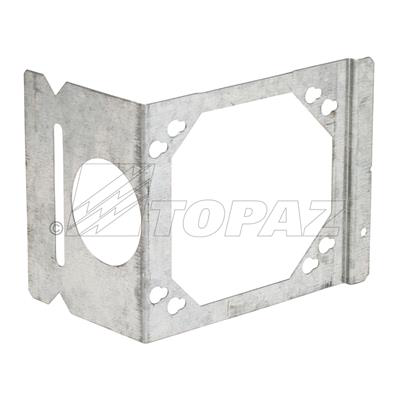

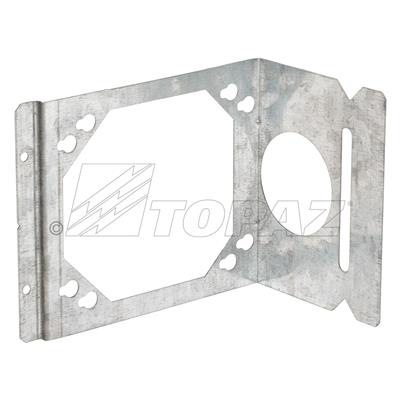

The 2-1/2" & 3-5/8" Depth Bracket to Stud Box Support by Southwire is designed to securely attach 4" and 4-11/16" electrical boxes to metal or wood studs. This galvanized steel bracket supports stud wall depths from 2-1/2" to 3-5/8" and provides built-in far-side support to ensure stability. Ideal for electrical distributors and switchgear suppliers, it facilitates reliable installation of electrical boxes in commercial and residential lighting solutions and wire and cable applications.
Specifications
- Material: Galvanized Steel
- Stud Wall Depth: 2-1/2" to 3-5/8"
- Compatible Box Sizes: 4" and 4-11/16" outlet boxes
- Product Weight: 0.1750 lbs
- Manufacturer Part #: TZH23
- UPC: 751338019072
Features
- Built-in far-side support for enhanced stability
- Can be pre-assembled with electrical boxes
- Supports electrical boxes mounted to metal or wood studs
- Easy attachment to stud walls
- UL Listed and RoHS Compliant
