1x7 Telephone Security Module – Telephone Line Distribution

The Leviton 1x7 Telephone Security Module is designed for integration into any Leviton Structured Media Enclosure, providing a reliable solution for bridging up to four telephone lines to seven outlet locations. This module supports operation of up to seven separate telephones per line and includes a security interface for alarm system integration. It is suitable for phone, fax, or modem applications, making it a practical choice for electrical distributors and switchgear suppliers focusing on residential or light commercial communications wiring.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 47609-TSV
• Dimensions: 6.31" (H) x 2.13" (W) x 2.19" (D)
• Product Weight: 1.9 lbs

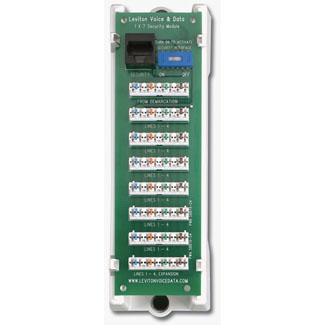

• Materials: White ABS plastic bracket; printed circuit board with seven bridged 110-type IDC connectors and RJ-45 style security jack with switch
• Telephone Lines Supported: Up to 4 lines
• Outlet Locations: 7
• Security Interface: RJ-45 style interface with on/off bypass switch
• Standards Compliance: ANSI/TIA-570-B and ANSI/TIA-1096-A (formerly FCC Part 68)
• Country of Origin: USA

Features

• Allows connection of up to seven separate telephone devices per line
• Supports security systems integration via RJ-45 style interface with on/off switch
• Compact design fits easily into Leviton Structured Media enclosures
• Bridged 110 IDC connectors simplify wiring and distribution
• Durable ABS plastic bracket with printed circuit board construction
