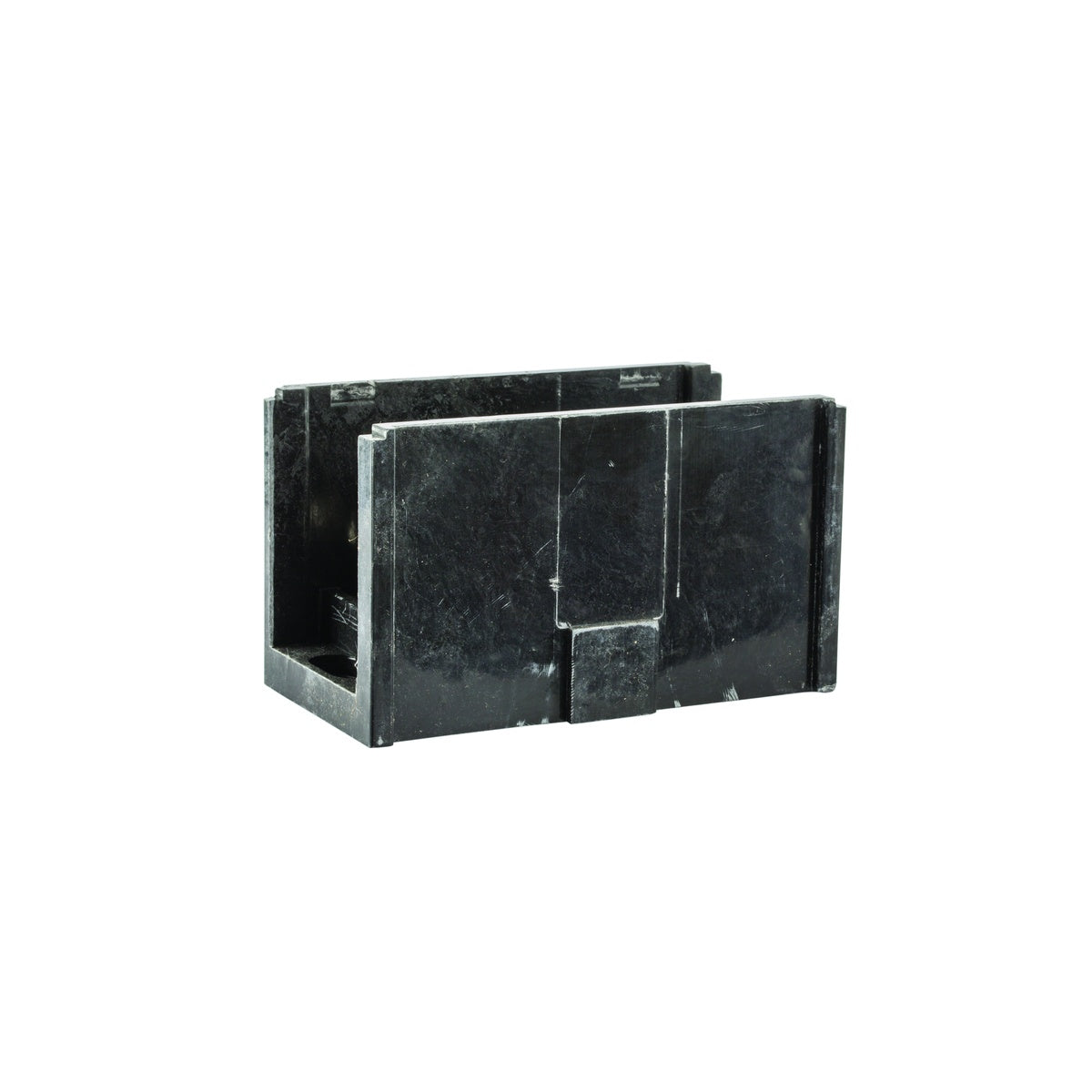

1x2-14 LINE 1x2-14 LOAD Power Distribution Block

This power distribution block is designed for electrical distributors and switchgear suppliers requiring reliable wire and cable management solutions. It supports primary and secondary connections for 2-14 AWG conductors, making it suitable for various electrical distribution and lighting solutions applications. Constructed with a high-strength aluminum alloy and mounted on a durable glass-filled polyester base, it ensures effective conductivity and mechanical stability.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: AS-I1-I1
• Material: Aluminum
• Color: Black
• Dimensions (L x W x H): 2.9 in x 2.714 in x 1.04 in
• Maximum Temperature: 90 degrees Celsius
• Amps per Pole: 115
• Primary Line Side: 2-14 AWG
• Secondary Load Side: 2-14 AWG
• Product Weight: 0.558 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• High conductivity aluminum alloy block for efficient power distribution
• Mounted in a high-strength glass-filled polyester base for durability
• Compact and versatile design suitable for standalone use or multi-block configurations
• Rated for 90 °C and 600V applications
• No assembly required on the job site
• Default SCCR rating of 10,000 Amps

Downloads & Links

• Spec Sheet
