1x2/0-14LINE 1x2/0-14LOAD
SKU: #303810
Part: #AS-K1-K1
UPC: 662381166043
1x2/0-14LINE 1x2/0-14LOAD
SKU: #303810
Part: #AS-K1-K1
UPC: 662381166043
Description

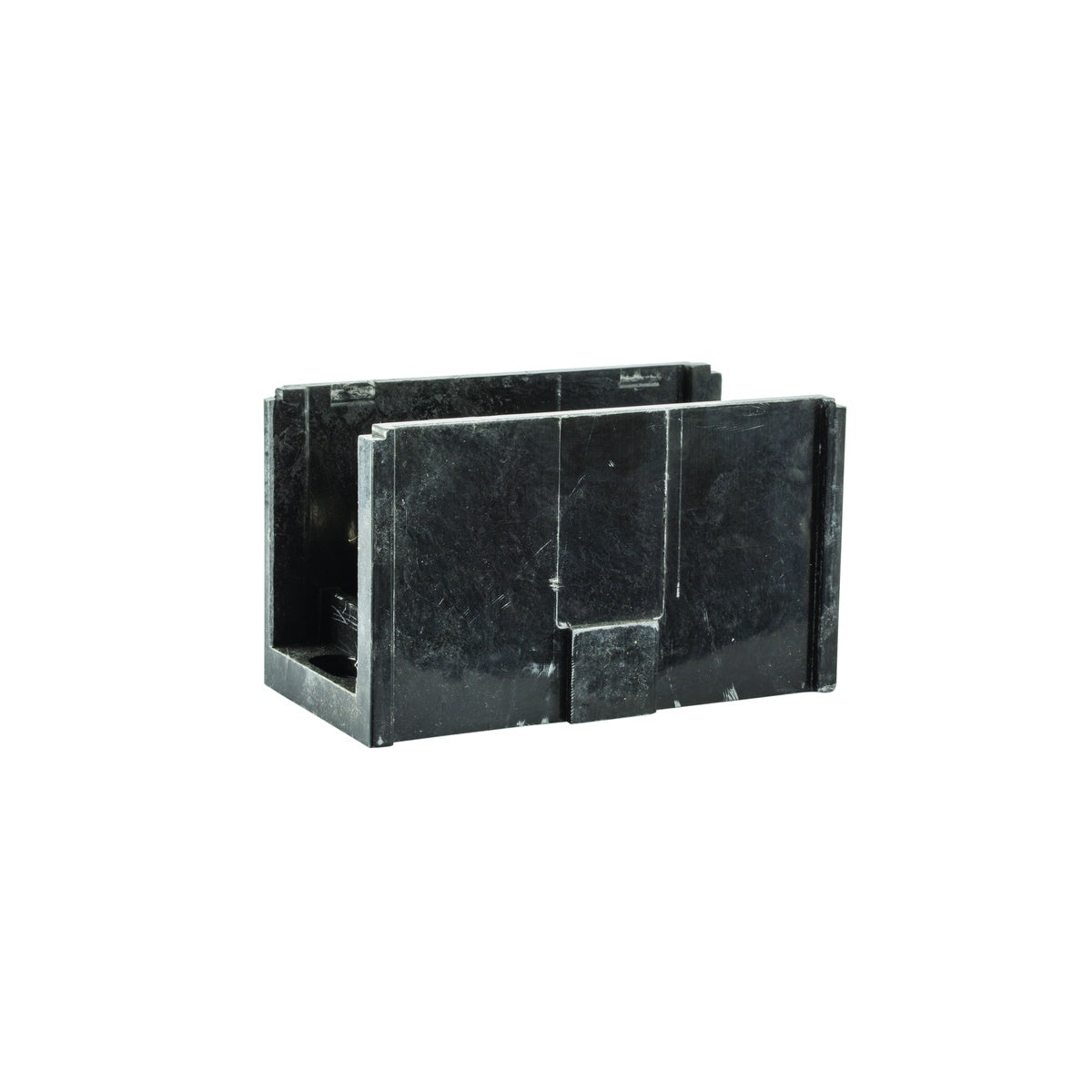

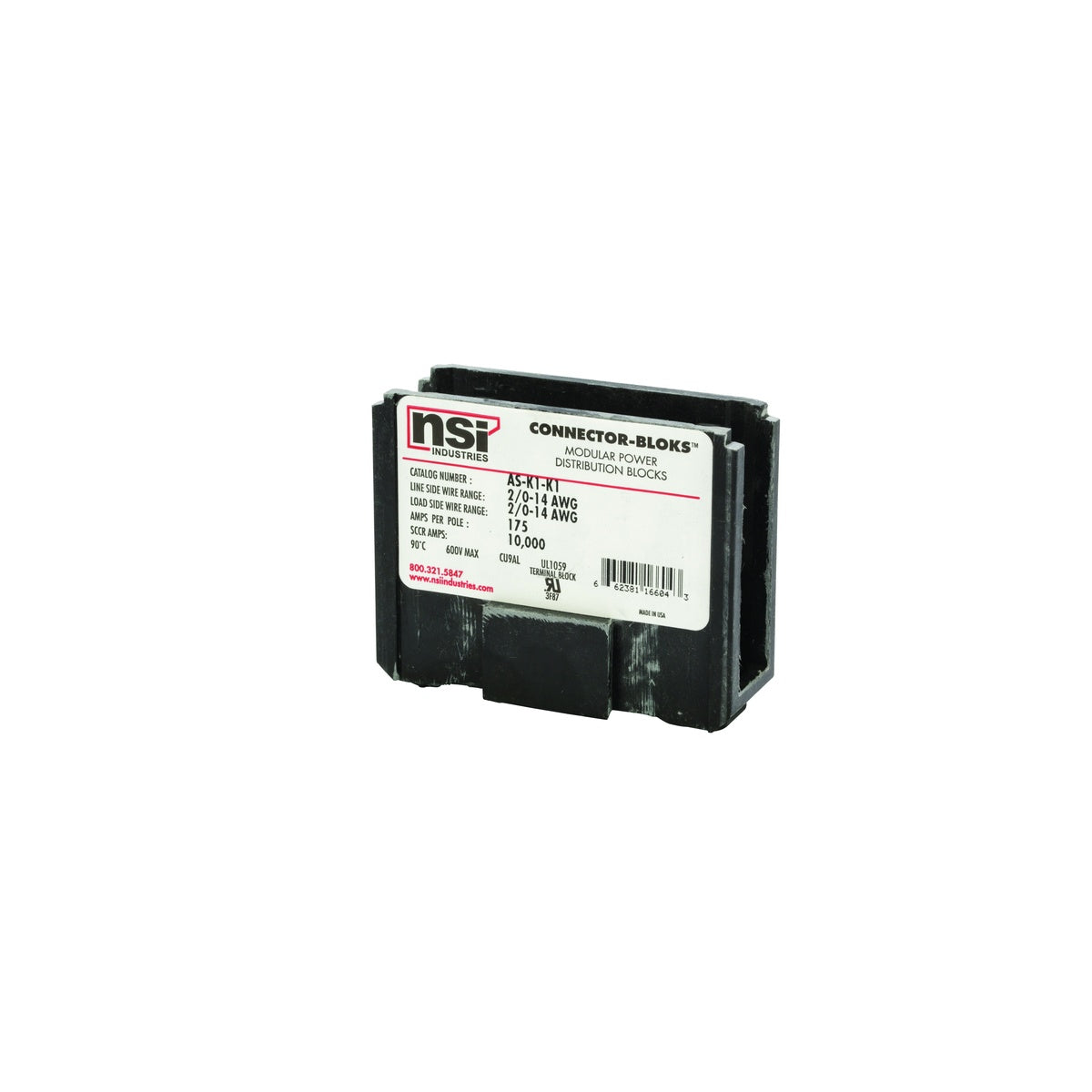

1x2/0-14LINE 1x2/0-14LOAD Power Distribution Block
This power distribution block is designed for reliable electrical distribution in wire and cable management applications. Manufactured by NSI Industries, it features a high-strength aluminum alloy conductive body mounted in a durable glass-filled polyester base. Suitable for use by electrical distributors and switchgear suppliers, it supports primary and secondary connections ranging from 2/0 to 14 AWG wire sizes.
Specifications
- Manufacturer Part #: AS-K1-K1
- Amperage Rating: 175 Amps Per Pole
- Max. Temperature: 90 degrees celsius
- Material: Aluminum body - Glass Filled Polyester Base
- Color: Black
- Dimensions: 2.9 in (Length) x 2.714 in (Width) x 1.04 in (Height)
- Mounting: 2 Mounting Holes
- Country of Origin: United States
- Made in USA: Yes
- Product Weight: 0.5780 lbs
Features
- High conductivity aluminum alloy for efficient power distribution
- Durable glass-filled polyester base for mechanical strength
- Modular design allows standalone use or combination into multi-block sets
- Supports wire ranges from 2/0 to 14 AWG on both line and load sides
