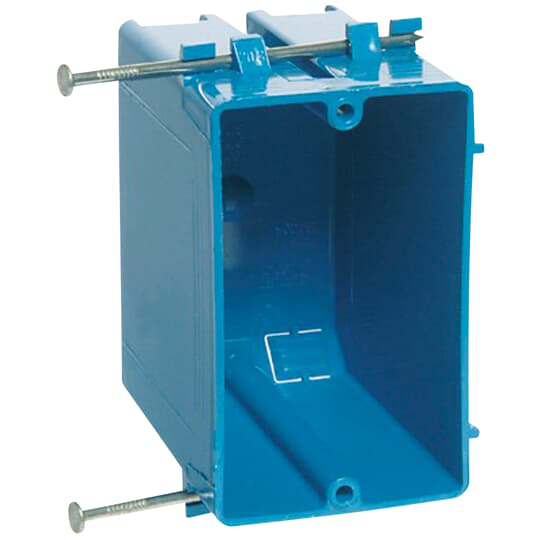

1G 20 CU IN ZIP BOX W/NAILS – Electrical Outlet Box

The Carlon 1G 20 CU IN ZIP BOX W/NAILS is a one-gang nail-on new work outlet box designed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code. This blue PVC box offers easy installation, durability, and is suitable for residential and light commercial electrical distributor and lighting solutions applications. It is ideal for wire and cable management and is compatible with switchgear supplier requirements for new work installations.

Specifications

• Volume: 20 cubic inches
• Length: 3-7/8 inches
• Width: 2-1/4 inches
• Depth: 3-1/4 inches
• Material: PVC
• Color: Blue
• Mounting Means: Captive nails
• Product Weight: 20.0000 (units not specified)
• Standards: UL E11461
• Application: Designed and listed for use with non-metallic sheathed cable
• Country of Origin: United States (US)

Features

• PVC construction for easier installation and greater performance
• Listed for use with non-metallic sheathed cable per National Electrical Code Article 314
• Suitable for residential and light commercial applications
• Color-coded blue for easy identification
• Captive nails for secure mounting
• UL Classified for two-hour fire wall and/or fire ceiling (per Carlon Blue PVC boxes data)
• Permissible for use with 90°C conductors
