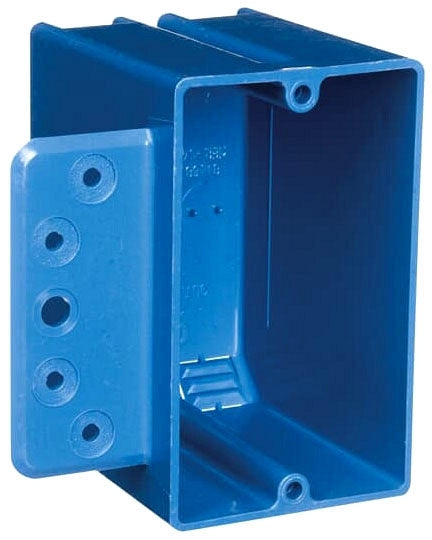

1G 18 CU IN ZIP BOX W/BRACKET – New Work Outlet Box

The Carlon 1G 18 CU IN ZIP BOX W/BRACKET is a one-gang new work outlet box designed for electrical distributors and switchgear suppliers requiring reliable wire and cable management solutions. This blue PVC box offers a volume of 18 cubic inches and is intended for installation in steel and wood stud walls with 3/8 inch to 5/8 inch wallboard thickness. It is suitable for new construction applications where secure mounting and compliance with electrical codes are essential.

Specifications

• Volume: 18 cubic inches
• Dimensions: Length 3-3/4 inches, Width 2-1/4 inches, Depth 2-15/16 inches
• Material: PVC
• Color: Blue
• Mounting Means: Bracket for 3/8 inch to 5/8 inch wallboard – steel and wood stud mounting
• Product Weight: 9.0 oz
• Standards: UL E11461
• Application: Designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code
• Country of Origin: United States

Features

• PVC construction for easier installation and greater performance
• Bracket mounting accommodates various drywall thicknesses from 3/8 inch to 5/8 inch
• Suitable for steel and wood stud mounting
• Complies with UL standards ensuring product safety and reliability
