19763R02 - X-Treme Box Temporary Power Distribution

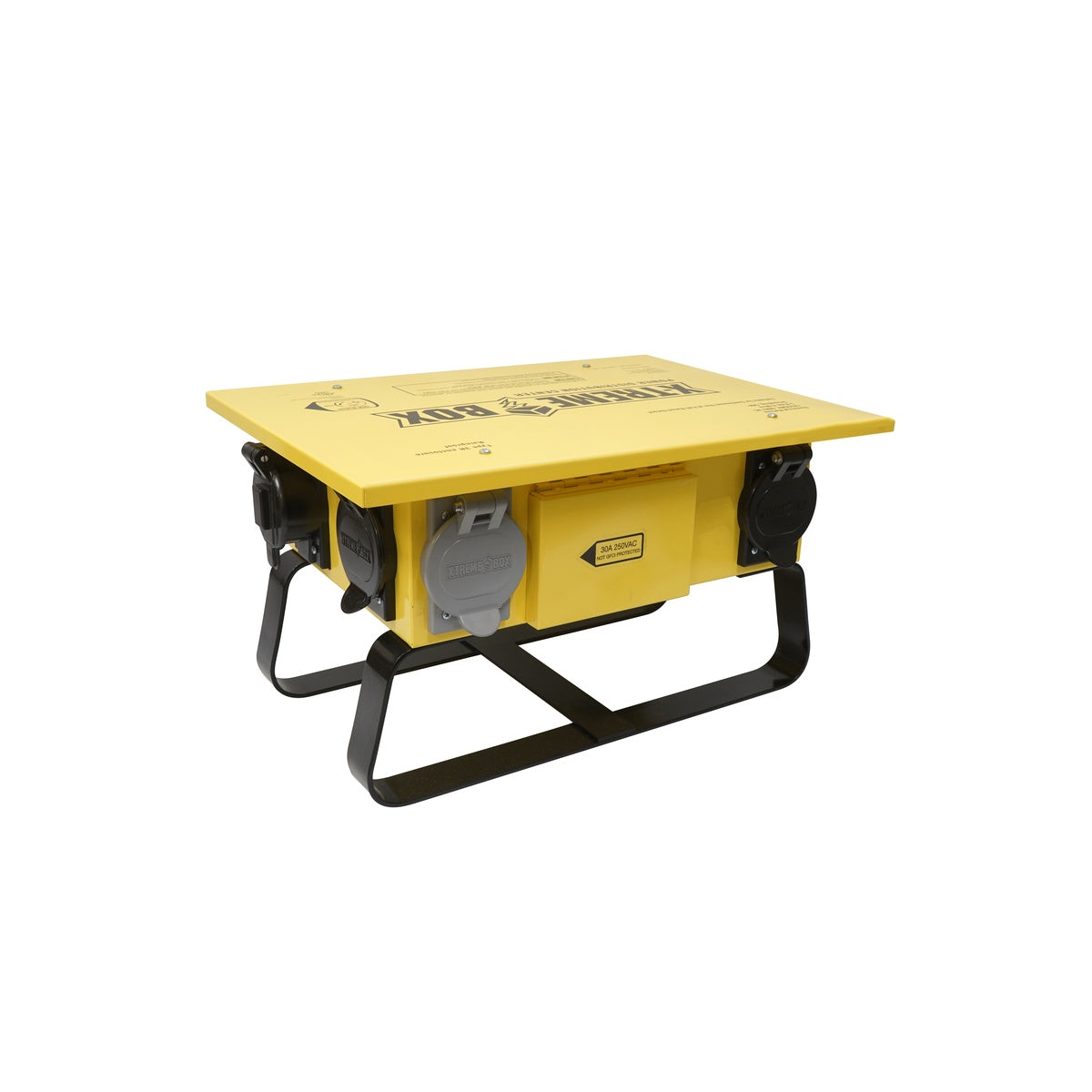

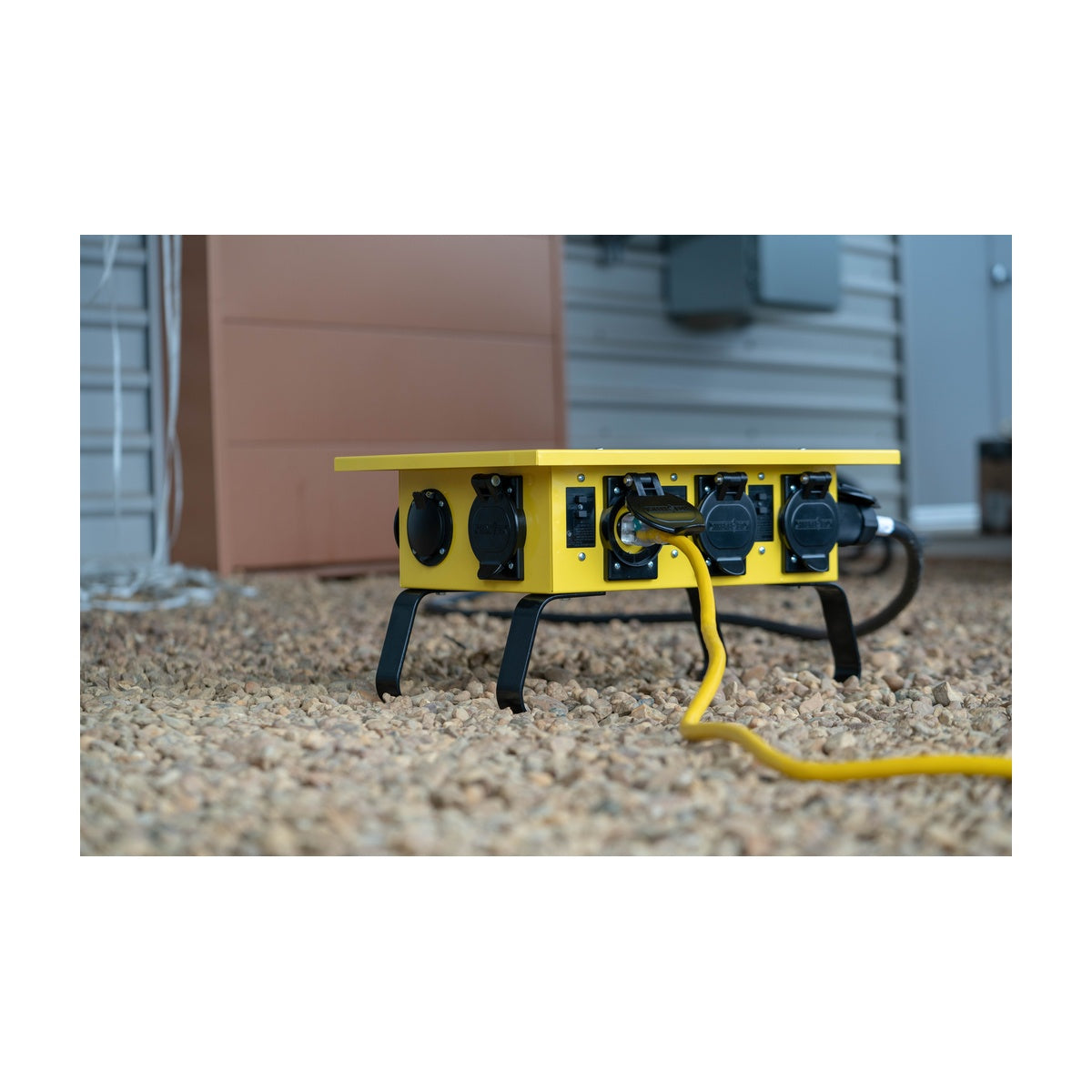

The 19763R02 X-Treme Box by Southwire is a durable temporary power distribution unit designed for use in extreme conditions. It features a sled base construction with straight blade receptacles and a 3-circuit configuration, making it suitable for electrical distributors and lighting solutions requiring reliable wire and cable power distribution on job sites.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: 19763R02
• Product Weight: 35.86 lbs
• Dimensions (W x H x L): 16" x 22" x 11.75"
• Country of Origin: Honduras
• Enclosure Type: NEMA 3R with rainproof weather strip
• Enclosure Material: 16 GA galvannealed steel
• Enclosure Base: Carbon steel with crossbar
• Receptacle Covers: Thermoplastic
• 50A 125/250V Locking California-Style CS63 Inlet & Outlet
• 20A Outlets: GFCI protection per pair of receptacles
• 30A Outlet: NEMA L6-30

Features

• Heavy-duty construction with thicker gauge metal and center support bar for enhanced durability
• All wiring is securely zip tied and tied down for a clean, safe internal layout
• Machine screws used for assembly, ensuring robust and reliable fastening
• Weatherproof design suitable for outdoor use in harsh environments
• 20-point final inspection before packout ensures quality control
• Heavy duty, reinforced corrugated packaging protects the unit during shipping and handling
